HANDLE LEVER

GSX1300R HAYABUSA 2004 (K4) USA (E03)

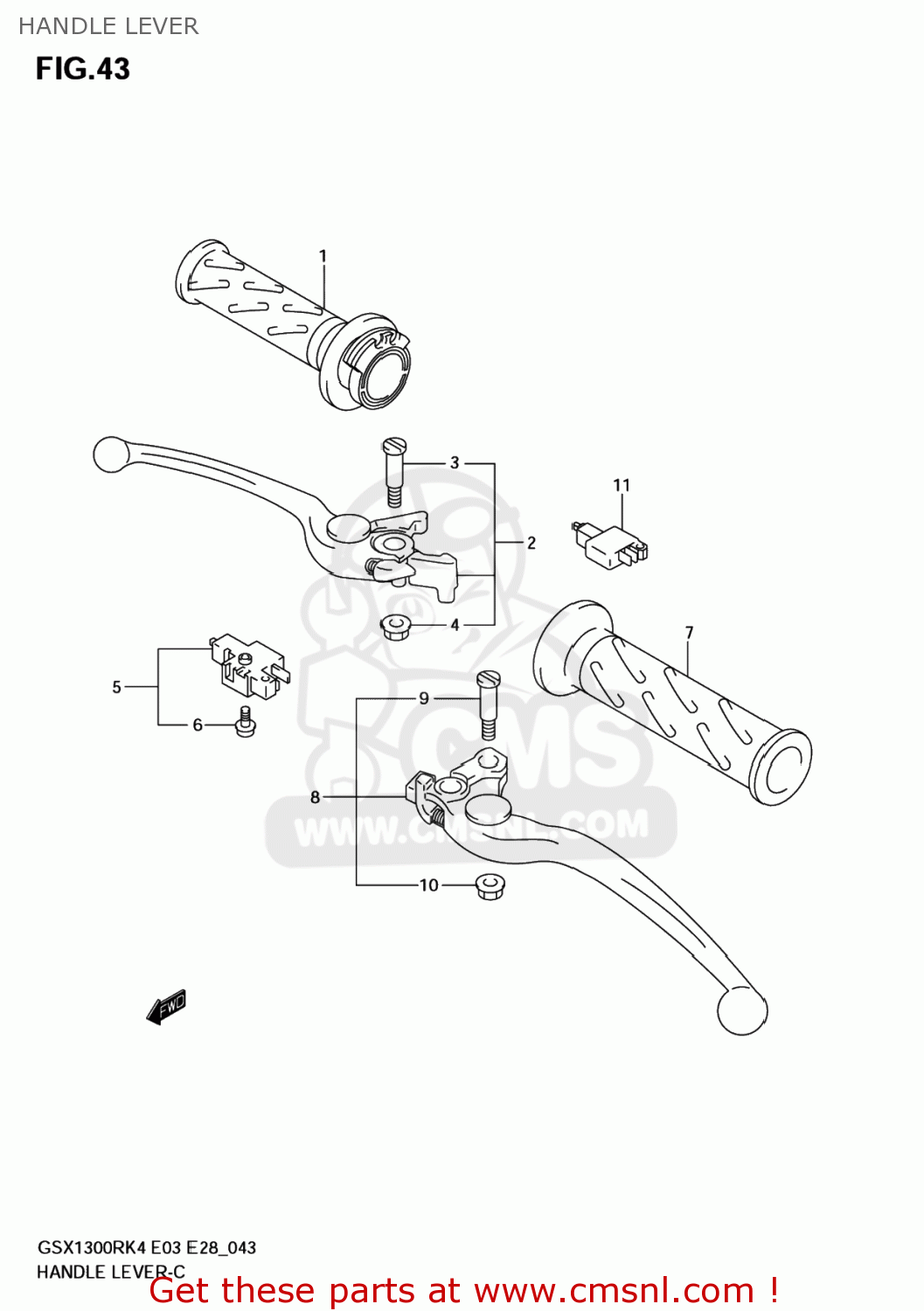

Handle lever diagram GSX1300R HAYABUSA 2004 (K4) USA (E03)

HANDLE LEVER GSX1300R HAYABUSA 2004 (K4) USA (E03)

HANDLE LEVER GSX1300R HAYABUSA 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5711046E01
ref: 1

GRIP,THROTTLE

€ 26.00

2

5730033E01
ref: 2

LEVER ASSY,BRAKE

€ 44.00

3

5743117C00
ref: 3

BOLT,LEVER PIVOT

€ 8.00

4

0831610063
ref: 4
08316-1006B

NUT

€ 2.50

5

5746017C11
ref: 5
57460-14J01

SWITCH ASSY,ST

€ 32.50

6

5746517C00
ref: 6

SCREW

€ 1.50

7

5721122D01
ref: 7
57211-22D01-291

GRIP,LEFT

€ 11.50

8

5750024F00
ref: 8
57500-24F01

LEVER ASSEMBLY,CLUTCH

€ 78.00

9

5743117C00
ref: 9

BOLT,LEVER PIVOT

€ 8.00

10

0831610063
ref: 10
08316-1006B

NUT

€ 2.50

11

5756002FA0
ref: 11

SWITCH ASSY,CLUTCH

€ 22.00
