STARTING MOTOR

GSX1300R HAYABUSA 2004 (K4) USA (E03)

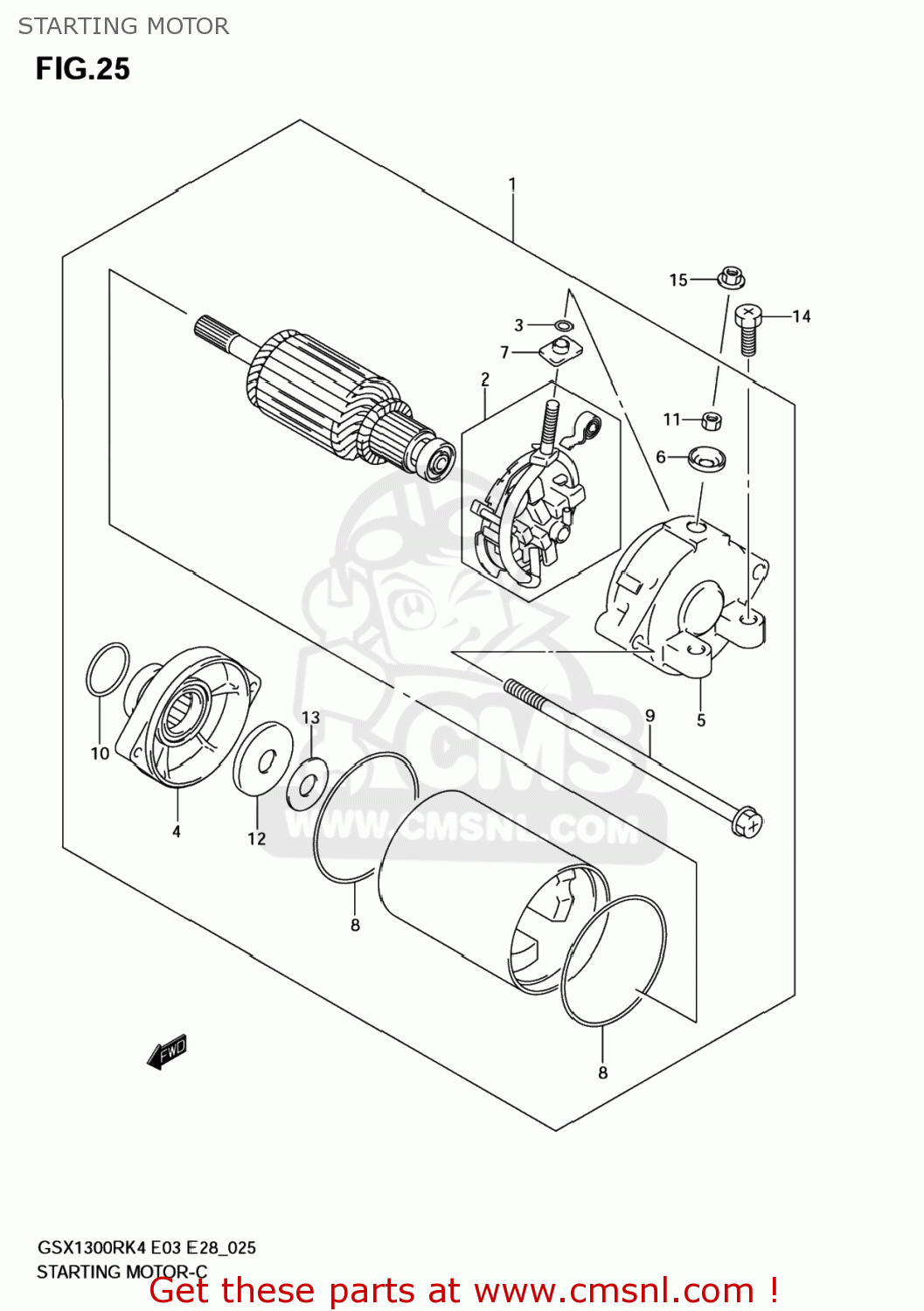

Starting motor diagram GSX1300R HAYABUSA 2004 (K4) USA (E03)

STARTING MOTOR GSX1300R HAYABUSA 2004 (K4) USA (E03)
STARTING MOTOR GSX1300R HAYABUSA 2004 (K4) USA (E03)
STARTING MOTOR GSX1300R HAYABUSA 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3110024F10
ref: 1
MOTOR ASSY,STARTING
€ 990.50
2
3113245C00
ref: 2
HOLDER SET,BRUSH
3113245C00
€ 46.00
3
3114338300
ref: 3
O RING
3114338300
€ 3.50
4
3115024F01
ref: 4
HOUSING ASSY,STARTER
3115024F01
€ 79.50
5
3117124F00
ref: 5
FRAME,STARTER END
€ 78.50
6
3117238300
ref: 6
BUSHING
3117238300
€ 4.00
7
3117388C00
ref: 7
BUSHING
3117388C00
€ 6.00
8
3126444110
ref: 8
O RING
3126444110
€ 8.00
9
3128124F00
ref: 9
BOLT
€ 7.00
10
0928024003
ref: 10
O RING(D:3,ID:24.5)
0928024003
€ 2.00
11
0831000067
ref: 11
NUT
0831000067
€ 2.50
12
3136143400
ref: 12
31170-43400
WASHER
€ 3.50
13
3136138300
ref: 13
SHIM
3136138300
€ 1.50
14
0912806024
ref: 14
09103-06212
SCREW (6X25)
0912806024
€ 2.50
15
0836135068
ref: 15
08361-3506A
NUT
0836135068
€ 2.00
