OIL PAN - OIL PUMP

GSX1300R HAYABUSA 2004 (K4) USA (E03)

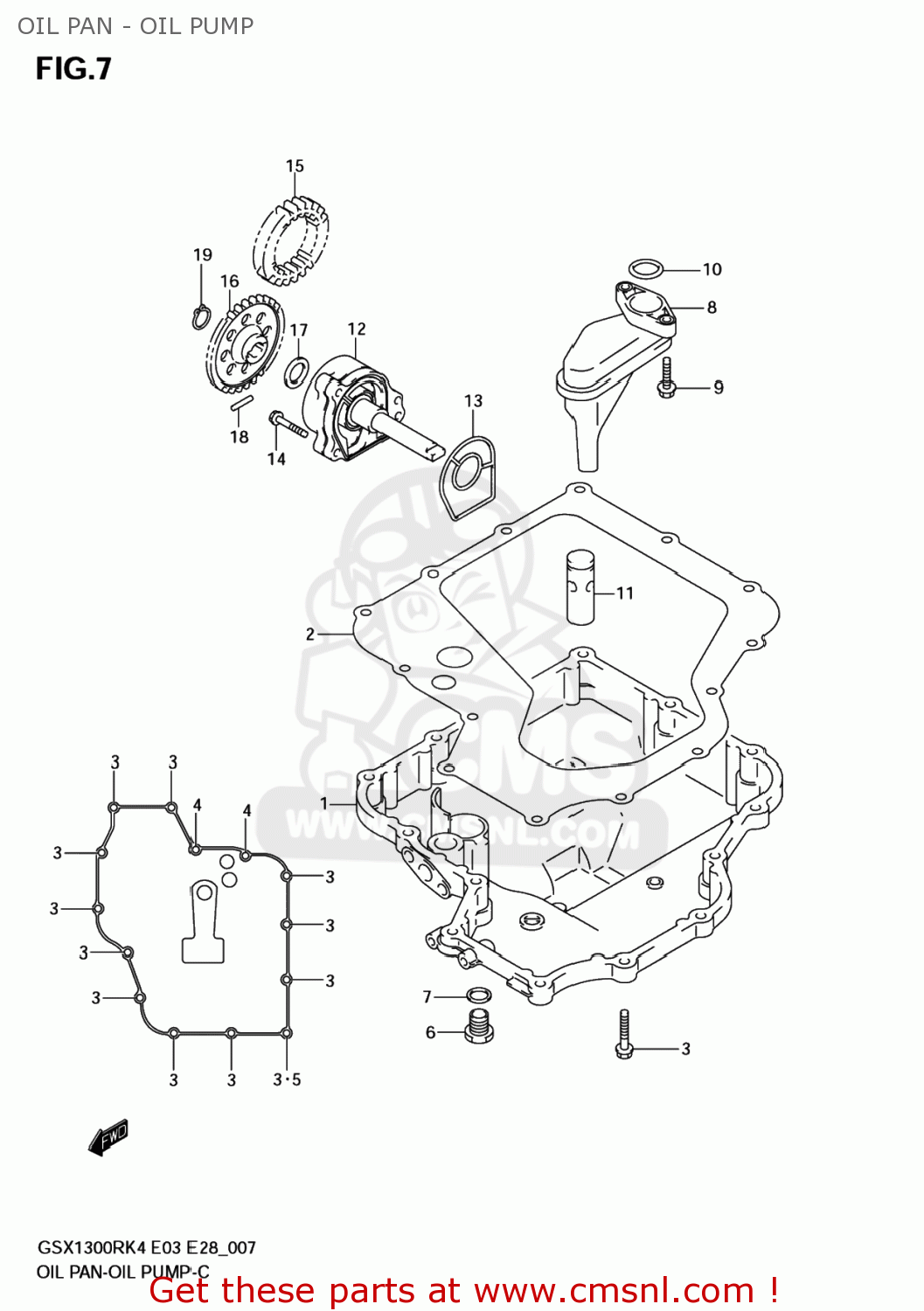

Oil pan - oil pump diagram GSX1300R HAYABUSA 2004 (K4) USA (E03)

OIL PAN - OIL PUMP GSX1300R HAYABUSA 2004 (K4) USA (E03)
OIL PAN - OIL PUMP GSX1300R HAYABUSA 2004 (K4) USA (E03)
OIL PAN - OIL PUMP GSX1300R HAYABUSA 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1151124F00
ref: 1-1
11511-24F01
PAN,OIL
€ 195.00
1-2
1151124F01
ref: 1-2
PAN,OIL
1151124F01
€ 195.00
2
1148924F01
ref: 2
GASKET,OIL PAN (NAS)
1148924F01
€ 15.50
3
0154706303
ref: 3
01547-0630B
BOLT,G/S SWITC
0154706303
€ 3.00
4
0154706403
ref: 4
01547-0640B
BOLT
0154706403
€ 3.00
5
0916806023
ref: 5
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
6
0924714036
ref: 6
PLUG(14X20)
0924714036
€ 5.50
7
0916814002
ref: 7
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
8
1652024F00
ref: 8
STRAINER,ENGINE OIL
1652024F00
€ 24.00
9
0155006203
ref: 9
01550-0620A
BOLT
0155006203
€ 2.50
10
0928019008
ref: 10
O RING(D:2.62,ID:20.3)
0928019008
€ 5.50
11
1644024F00
ref: 11
VALVE ASSY,OIL RELIEF(7K)
1644024F00
€ 41.50
12
1640024F01
ref: 12
PUMP ASSY,ENGINE OIL
1640024F01
€ 165.00
13
1649124F00
ref: 13
O RING,OIL PUMP
1649124F00
€ 5.50
14
0154706303
ref: 14
01547-0630B
BOLT,G/S SWITC
0154706303
€ 3.00
15
1632133E10
ref: 15
GEAR,OIL PUMP DRIVE
1632133E10
€ 37.00
16
1633133E00
ref: 16
GEAR,OIL PUMP DRIVEN
1633133E00
€ 39.50
17
0918112158
ref: 17
SHIM(12X20X0.5)
0918112158
€ 2.00
18
0926105006
ref: 18
PIN(5X18)
0926105006
€ 1.50
19
0833131126
ref: 19
08331-3112A
CIRCLIP,12 MM
0833131126
€ 2.00
