GEAR SHIFTING
GSX1300RZ HAYABUSA 2001 (K1) USA (E03)

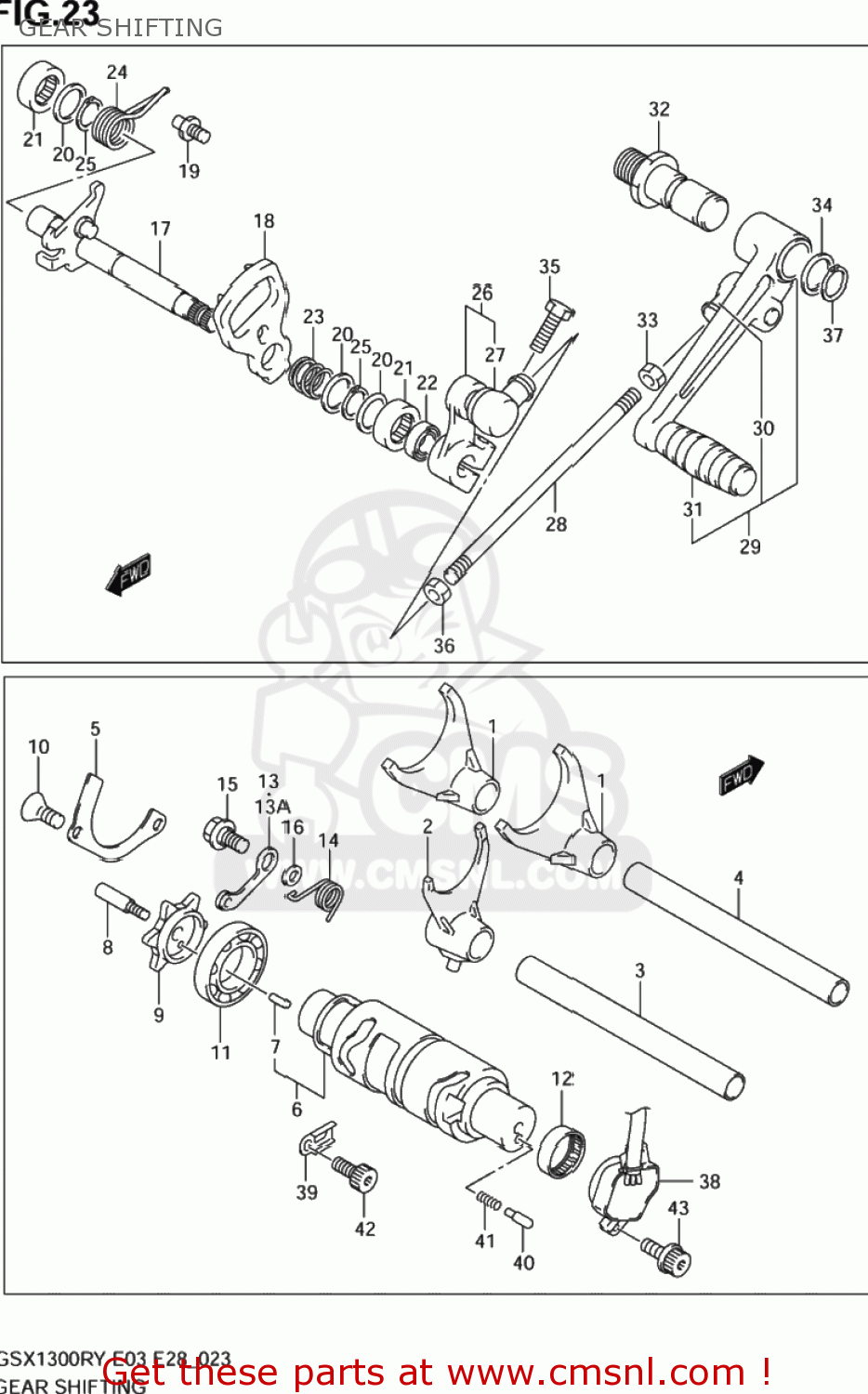

Gear shifting diagram GSX1300RZ HAYABUSA 2001 (K1) USA (E03)
GEAR SHIFTING GSX1300RZ HAYABUSA 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2521124F00
ref: 1-1
25211-24F10
FORK,GEAR SHIFT NO.1
€ 151.00
1-2
2521124F10
ref: 1-2
FORK,GEAR SHIFT NO.1
€ 151.00
2-1
2523124F00
ref: 2-1
25231-24F10
FORK,GEAR SHIFT NO.3
€ 114.00
2-2
2523124F10
ref: 2-2
FORK,GEAR SHIFT NO.3
€ 114.00
3
2541124F00
ref: 3
SHAFT,SHIFT FORK NO.2(L:132)
€ 19.00
4
2541138B01
ref: 4
SHAFT,GEAR SHIFT FORK(L:152)
€ 20.00
5
2474124F00
ref: 5
RETAINER,SHIFT CAM BEARING
€ 9.00
6
2531024F00
ref: 6
CAM,GEAR SHIFT
€ 151.50
7
0422104089
ref: 7
PIN
€ 1.50
8-1
2531212C00
ref: 8-1
PIN,SHIFT CAM DRIVEN GEAR
€ 6.00
8-2
2531235F00
ref: 8-2
25312-42F01
BOLT,GEAR SHIFT CAM PL
€ 5.50
9
2538113E10
ref: 9
PLATE,GEAR SHIFT CAM
€ 40.00
10
0912606011
ref: 10
SCREW(6X12)
€ 2.00
11
0926225006
ref: 11
BEARING(25X47X8)
€ 24.00
12
0926325018
ref: 12
BEARING(25X32X12)
€ 17.50
13
2535012C00
ref: 13
STOPPER,SHIFT CAM
€ 10.00
13A
2535024F00
ref: 13A
STOPPER,SHIFT CAM
€ 18.00
14
2535524F00
ref: 14
SPRING,STOPPER ARM
€ 11.00
15
0911106041
ref: 15
BOLT(6X14.3)
€ 3.00
16
0821106141
ref: 16
WASHER
€ 2.50
17
2551024F00
ref: 17
SHAFT,GEAR SHIFT
€ 97.50
18
2551213E11
ref: 18
PLATE,GEAR SHIFT CAM DRIVE
€ 18.00
19-1
2567101000
ref: 19-1
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
19-2
2567101011
ref: 19-2
STOPPER,GEAR SHIFT ARM
€ 3.00
20
0918114167
ref: 20
SHIM(14X22X1)
€ 3.50
21
0926314027
ref: 21
BEARING(14X20X12)
€ 11.00
22
0928314006
ref: 22
SEAL,OIL(14X22X6)
€ 6.50
23
0944017009
ref: 23
SPRING
€ 1.50
24
0944420001
ref: 24
SPRING
€ 5.00
25
0833131146
ref: 25
08331-3114A
CIRCLIP
€ 2.00
26-1
2552024F00
ref: 26-1
ARM,GEAR SHIFT LINK
€ 79.50
26-2
2552024F10
ref: 26-2
ARM,GEAR SHIFT LINK
€ 79.50
27
2552647000
ref: 27
COVER,DUST
€ 3.50
28
2552503F00
ref: 28
ROD,GEAR SHIFT LINK
€ 9.50
29
2560024F00
ref: 29
LEVER ASSY,GEAR SHIFT
€ 95.00
30
2552647000
ref: 30
COVER,DUST
€ 3.50
31
2565216500
ref: 31
RUBBER,GEAR SHIFT PEDAL
€ 4.00
32
2561703F00
ref: 32
25617-03F10
SHAFT,GEAR SHIFT LEVER
€ 10.50
33
0914006020
ref: 33
NUT
€ 2.50
34
0916012011
ref: 34
WASHER(12.5X20X1)
€ 1.50
35
0150006253
ref: 35
01500-0625A
BOLT
€ 2.50
36
0914006025
ref: 36
NUT
€ 2.00
37
0833131126
ref: 37
08331-3112A
CIRCLIP,12 MM
€ 2.00
38
3773024F00
ref: 38
BASE ASSY,GEAR SHIFT TERMINAL
€ 131.50
39
3149745000
ref: 39
CLAMP,GENERATOR LEAD WIRE
€ 1.50
40
0920905011
ref: 40
PIN(5X15.5)
€ 2.00
41
0944004010
ref: 41
SPRING
€ 1.50
42
0713005103
ref: 42
07130-0510B
BOLT
€ 2.00
43
0712005163
ref: 43
07120-0516B
BOLT
€ 1.50
