REAR CALIPER (GSX1300RK3)

GSX1300RZ HAYABUSA 2001 (K1) USA (E03)

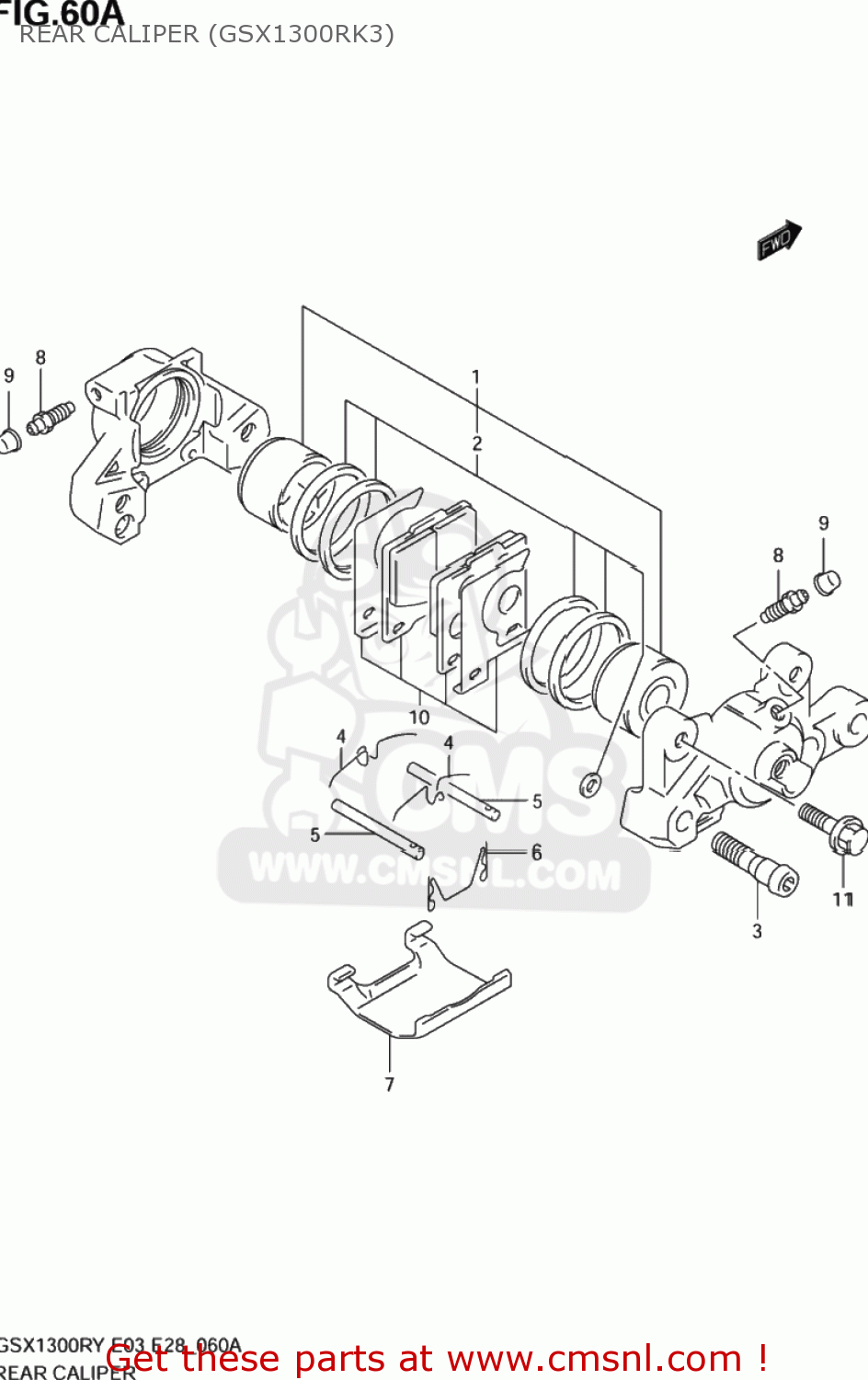

Rear caliper (gsx1300rk3) diagram GSX1300RZ HAYABUSA 2001 (K1) USA (E03)

REAR CALIPER (GSX1300RK3) GSX1300RZ HAYABUSA 2001 (K1) USA (E03)
REAR CALIPER (GSX1300RK3) GSX1300RZ HAYABUSA 2001 (K1) USA (E03)
REAR CALIPER (GSX1300RK3) GSX1300RZ HAYABUSA 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity

6910005CG0999
ref:
CALIPER ASSY,RR
€ 770.50
1
6910005851
ref: 1
PISTON SET
6910005851
€ 122.50
2
6910032821
ref: 2
69101-05840
SEAL SET,PISTO
6910032821
€ 26.00
3
5914505C50
ref: 3
BOLT,HOUSING
5914505C50
€ 9.50
4
5914316700
ref: 4
SPRING
5914316700
€ 7.50
5
6914146E01
ref: 5
PIN,PAD
6914146E01
€ 9.00
6
6914246E01
ref: 6
CLIP,PAD PIN
6914246E01
€ 14.00
7
5915116701
ref: 7
COVER
5915116701
€ 13.50
8
5912118410
ref: 8
BLEEDER
5912118410
€ 8.00
9
5515666310
ref: 9
CAP,BLEEDER PLUG
5515666310
€ 6.00
10
6910205860
ref: 10
PAD & SHIM SET (NAS)
6910205860
€ 52.00
11
0910308359
ref: 11
BOLT(8X28)
0910308359
€ 4.00
