MUFFLER (MODEL K2/K3)

GSX1300RZ HAYABUSA 2001 (K1) USA (E03)

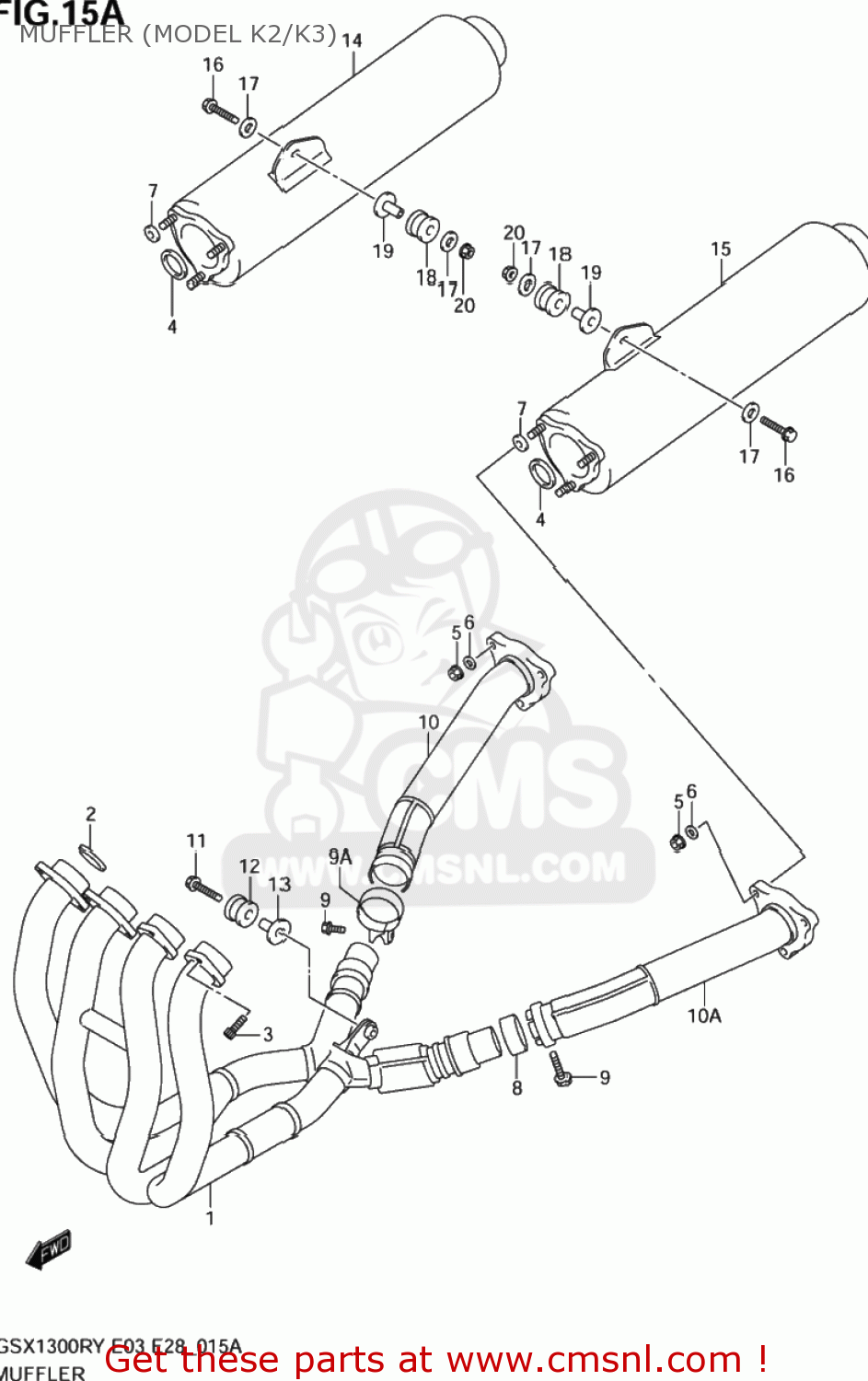

Muffler (model k2/k3) diagram GSX1300RZ HAYABUSA 2001 (K1) USA (E03)

MUFFLER (MODEL K2/K3) GSX1300RZ HAYABUSA 2001 (K1) USA (E03)
MUFFLER (MODEL K2/K3) GSX1300RZ HAYABUSA 2001 (K1) USA (E03)
MUFFLER (MODEL K2/K3) GSX1300RZ HAYABUSA 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1410024F40
ref: 1
EXHAUST
€ 1,003.00
2
1418122D01
ref: 2
GASKET,EXHAUST PIPE (NAS)
1418122D01
€ 9.00
3
0713008253
ref: 3
07130-0825B
BOLT
0713008253
€ 3.50
4
1418133E00
ref: 4
GASKET,MUFFLER JOINT
1418133E00
€ 6.50
5
0915908116
ref: 5
NUT
0915908116
€ 7.50
6
0916008059
ref: 6
WASHER(8.5X18X1.6)
0916008059
€ 2.00
7
0928008012
ref: 7
O RING(D:1.9,ID:7.8)
0928008012
€ 4.00
8
1477124F00
ref: 8
CONNECTOR,MUFFLER
1477124F00
€ 14.00
9
0155008403
ref: 9
01550-0840A
BOLT
0155008403
€ 3.50
9A
1445924F30
ref: 9A
CLAMP,CONNECTOR MUFFLER,R
1445924F30
€ 19.50
10
1423024F40
ref: 10
PIPE,JOINT,R
1423024F40
€ 390.50
10A
1424024F30
ref: 10A
PIPE,JOINT,L
1424024F30
€ 388.00
11
0911808152
ref: 11
09118-08152-A05
BOLT 8X45
€ 5.00
12
0932012067
ref: 12
CUSHION
0932012067
€ 13.00
13
0918008152
ref: 13
SPACER(8.6X12X24.2)
0918008152
€ 6.00
14
1431024F00H01
ref: 14
BODY,MUFFLER,R
1431024F00H01
€ 929.50
15
1434024F00H01
ref: 15
BODY,MUFFLER,L
1434024F00H01
€ 940.50
16
0910308358
ref: 16
BOLT(8X45)
0910308358
€ 3.50
17
0916008142
ref: 17
WASHER(8.5X28X1.5)
0916008142
€ 2.50
18
0932012049
ref: 18
CUSHION
0932012049
€ 9.00
19
0918008156
ref: 19
SPACER(8.6X12X27.1)
0918008156
€ 6.50
20
0915908034
ref: 20
NUT
0915908034
€ 2.00
