Buy Suzuki GSX Parts Online


FRONT FORK DAMPER

GSX1300RZ HAYABUSA 2005 (K5) USA (E03)

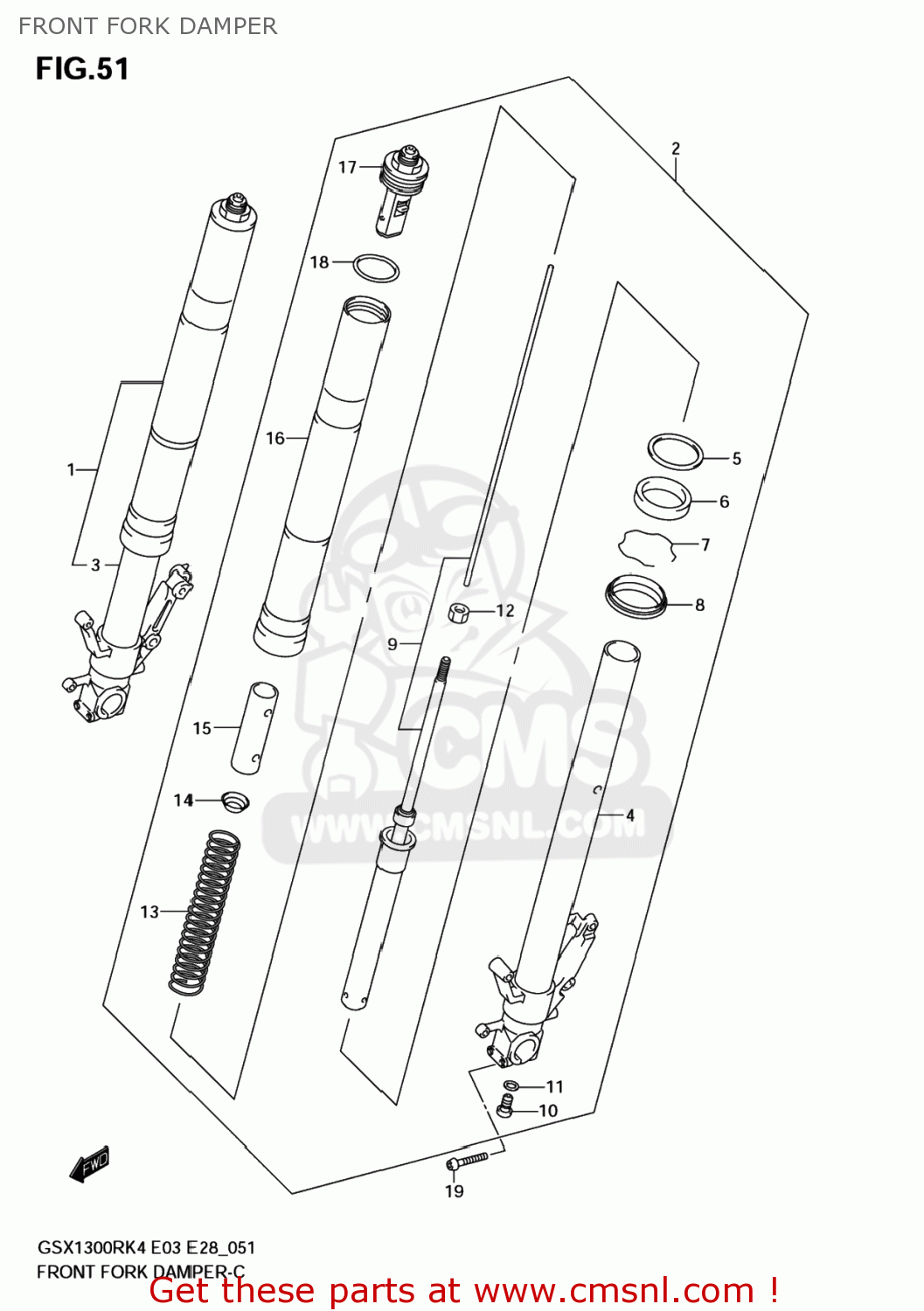

Front fork damper diagram GSX1300RZ HAYABUSA 2005 (K5) USA (E03)

FRONT FORK DAMPER GSX1300RZ HAYABUSA 2005 (K5) USA (E03)
FRONT FORK DAMPER GSX1300RZ HAYABUSA 2005 (K5) USA (E03)
FRONT FORK DAMPER GSX1300RZ HAYABUSA 2005 (K5) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5110324F30
ref: 1
DAMPER ASSY,FR FORK,R
5110324F30
€ 1,618.50
2
5110424F30
ref: 2
DAMPER ASSY,FR FORK,L
5110424F30
€ 1,653.50
3
5111024F30
ref: 3
TUBE,INNER,R(BLACK)
€ 963.00
4
5112024F30
ref: 4
TUBE,INNER,L(BLACK)
5112024F30
€ 963.00
5
5115814200
ref: 5
WASHER
5115814200
€ 4.00
6
5115302FA0
ref: 6
SEAL,OIL
5115302FA0
€ 16.50
7
5115614200
ref: 7
RING,STOPPER
5115614200
€ 4.50
8
5117302FA0
ref: 8
SEAL,DUST
5117302FA0
€ 21.00
9
5114624F00
ref: 9
CYLINDER
5114624F00
€ 458.00
10
5114740C00
ref: 10
BOLT,OIL LOCK PIECE,12X22
5114740C00
€ 24.50
11
5114840300
ref: 11
GASKET,CYLINDER (NAS)
5114840300
€ 2.50
12
5112924F00
ref: 12
NUT
€ 8.50
13
5117124F00
ref: 13
SPRING,FR
€ 142.00
14
5115824F00
ref: 14
GUIDE,SPRING
€ 9.50
15
5117624F00
ref: 15
SPACER,SPRING
€ 27.50
16
5113024F20
ref: 16
TUBE,OUTER(BRONZ)
€ 767.50
17
5135124F00
ref: 17
CAP,FR FORK
€ 161.50
18
6227814100
ref: 18
O RING
6227814100
€ 3.50
19
5116624F30
ref: 19
BOLT(8X45)
5116624F30
€ 10.50
