RADIATOR

GSX1300RZ HAYABUSA 2005 (K5) USA (E03)

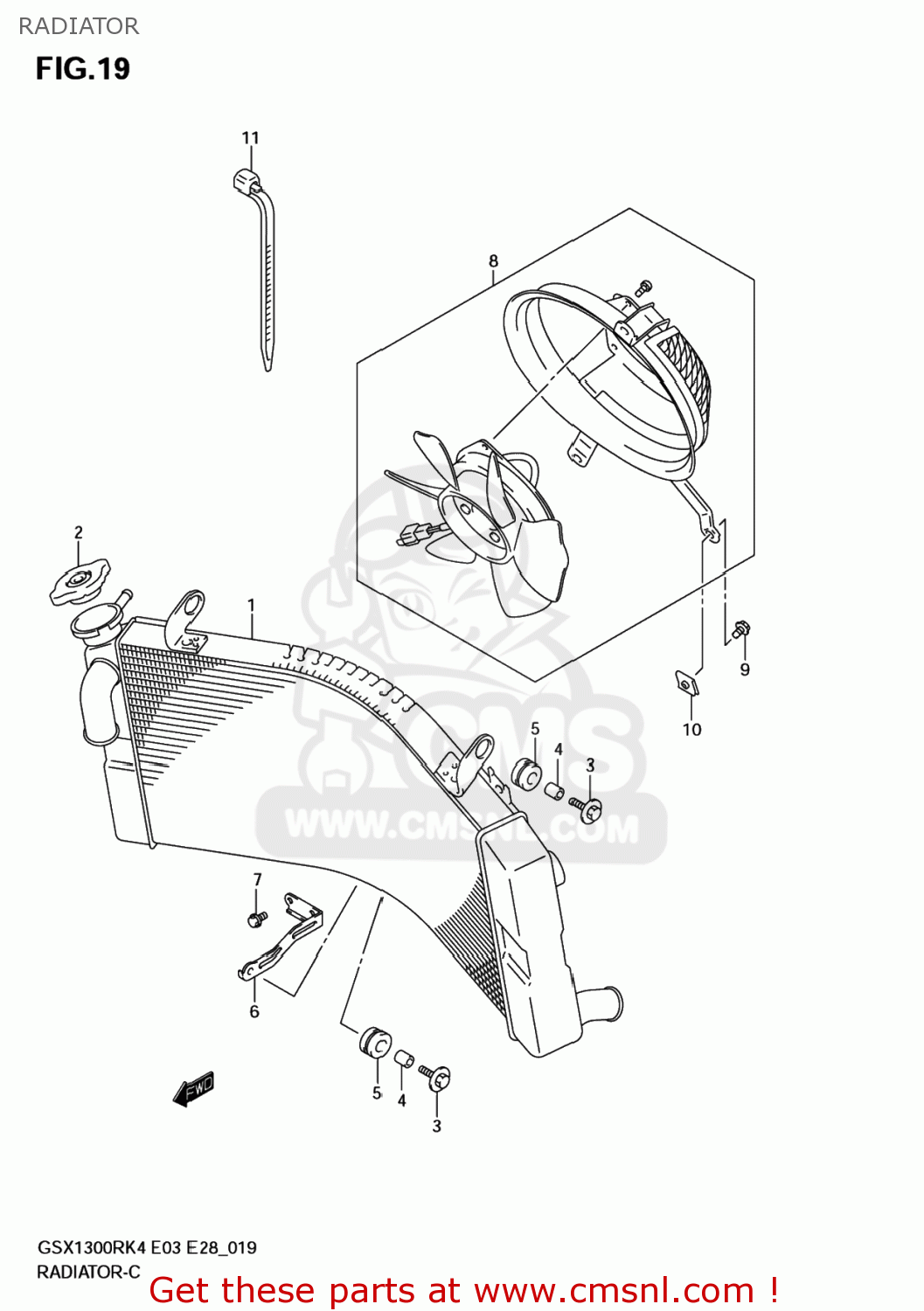

Radiator diagram GSX1300RZ HAYABUSA 2005 (K5) USA (E03)

RADIATOR GSX1300RZ HAYABUSA 2005 (K5) USA (E03)

RADIATOR GSX1300RZ HAYABUSA 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1771024F10
ref: 1

RADIATOR ASSY,WATER

€ 1,041.00

2

1773012C20
ref: 2
17730-08J00

CAP COMP,RADIATOR

€ 40.00

3

0911806097
ref: 3

BOLT(6X25)

€ 2.50

4

0918006290
ref: 4

SPACER(6.5X10X12)

€ 2.50

5-1

0932010042
ref: 5-1

CUSHION

€ 4.00

5-2

0932010051
ref: 5-2

CUSHION

€ 3.50

6

1775024F00
ref: 6

BRACKET,RADIATOR

€ 8.00

7

0154706123
ref: 7
01547-0612B

BOLT

€ 2.00

8

1780024F01
ref: 8

FAN ASSY,RADIATOR

€ 768.50

9

0155006103
ref: 9
01550-0610A

BOLT

€ 2.50

10

0914806015
ref: 10

NUT

€ 3.50

11

0940718402
ref: 11

CLAMP(L:165)

€ 2.50
