UNDER COWLING (GSX1300RZK4)

GSX1300RZ HAYABUSA 2005 (K5) USA (E03)

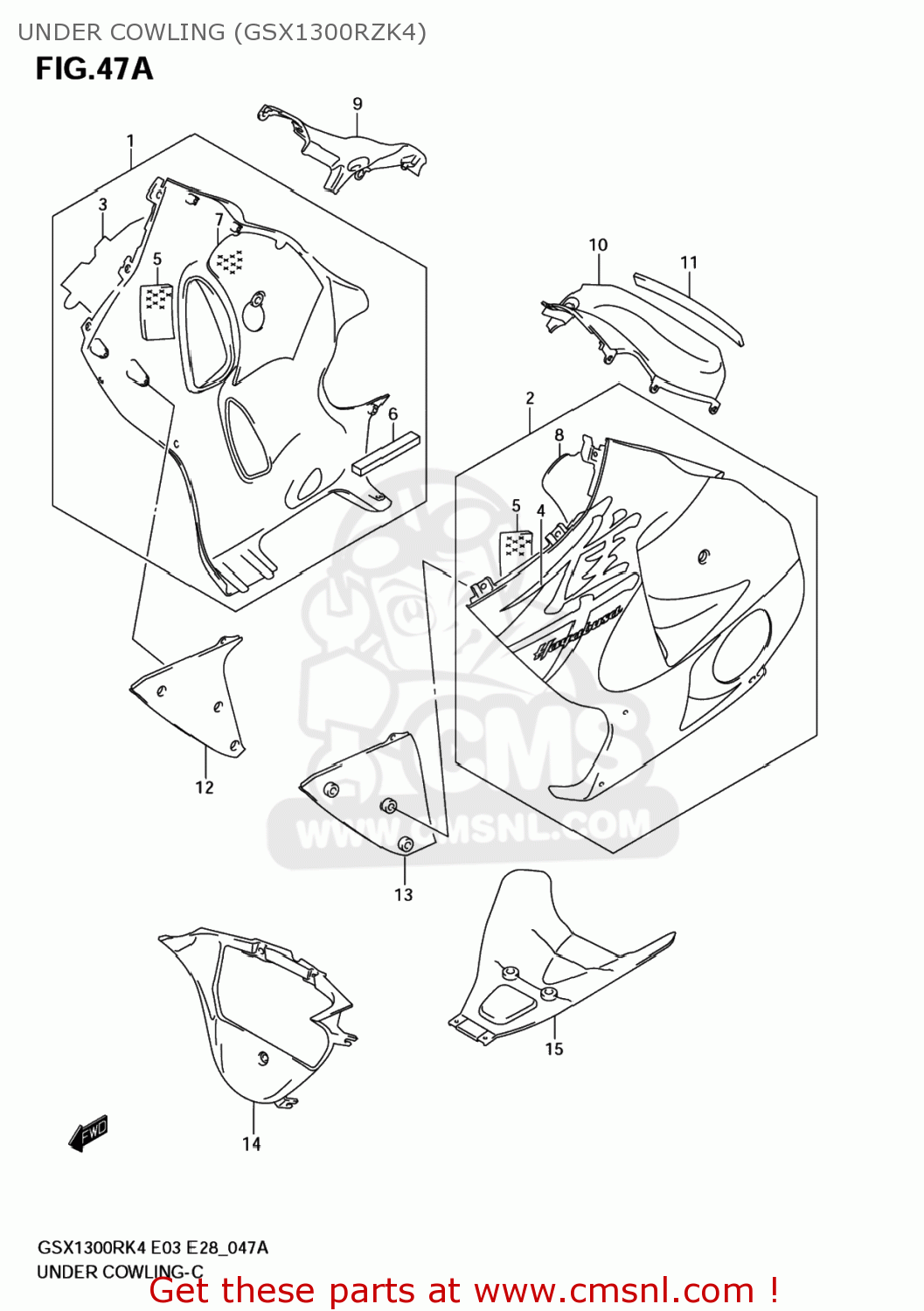

Under cowling (gsx1300rzk4) diagram GSX1300RZ HAYABUSA 2005 (K5) USA (E03)

UNDER COWLING (GSX1300RZK4) GSX1300RZ HAYABUSA 2005 (K5) USA (E03)

UNDER COWLING (GSX1300RZK4) GSX1300RZ HAYABUSA 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

9440724F10YU7
ref: 1
94407-24F11-YU7

COWL ASSY, UNDER RH (RED)

€ 595.50

2

9440824F10YU7
ref: 2
94408-24F11-YU7

COWL ASSY, UNDER LH (RED)

€ 595.50

3

6818124F10AWN
ref: 3

EMBLEM,COWLING UNDER,R

€ 119.00

4

6819124F10AWN
ref: 4

EMBLEM,COWLING UNDER,L

€ 0.00

5

9447424F01
ref: 5

CUSHION,UNDER COWLING NO,1

€ 23.00

6

9447324F00
ref: 6
94476-41G00

CUSHION,ENGINE COVER,RIGHT

€ 6.50

7

9447524F01
ref: 7

CUSHION,UNDER COWLING NO.2,R

€ 55.00

8

9448524F00
ref: 8

CUSHION,UNDER COWLING,L

€ 61.50

9

9462124F00
ref: 9

PANEL,SIDE,R

€ 36.00

10

9463124F00
ref: 10

PANEL,SIDE,L

€ 30.50

11

9462224F00
ref: 11

MOLDING,SIDE PANEL

€ 8.50

12

9446124F00
ref: 12

COWLING,UNDER INNER,R

€ 19.00

13

9446224F00
ref: 13

COWLING,UNDER INNER,L

€ 19.00

14

9449824F01
ref: 14

COWLING,UNDER CTR

€ 61.00

15

9466024F00YU7
ref: 15

COWLING,UNDER RR

€ 153.00
