CRANKCASE COVER

GSX1300RZ HAYABUSA 2006 (K6) USA (E03)

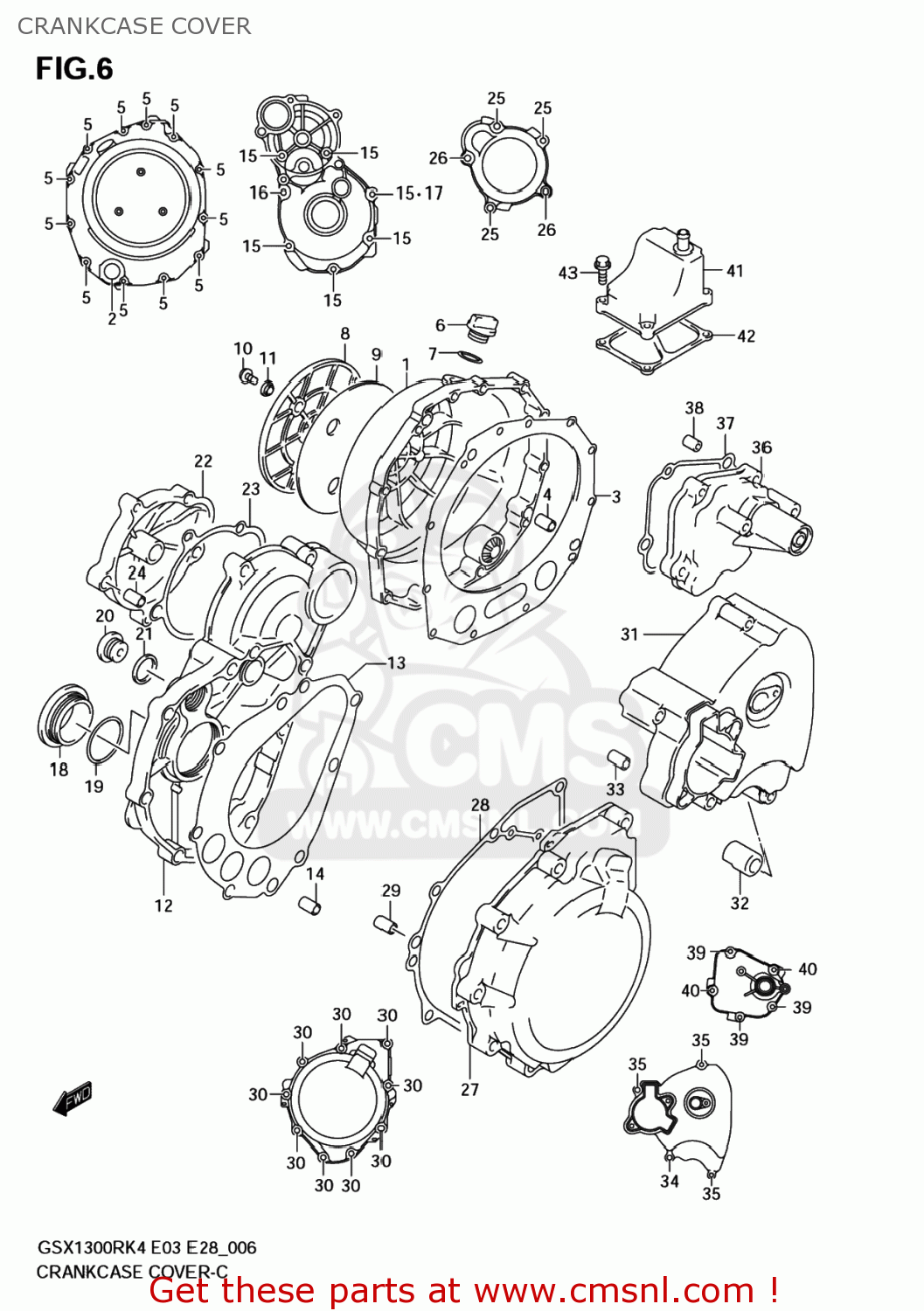

Crankcase cover diagram GSX1300RZ HAYABUSA 2006 (K6) USA (E03)

CRANKCASE COVER GSX1300RZ HAYABUSA 2006 (K6) USA (E03)
CRANKCASE COVER GSX1300RZ HAYABUSA 2006 (K6) USA (E03)
CRANKCASE COVER GSX1300RZ HAYABUSA 2006 (K6) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1134024F01
ref: 1
COVER,CLUTCH
1134024F01
€ 198.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3
1148224F00
ref: 3
GASKET,CL COVER (NAS)
1148224F00
€ 17.00
4
0421109189
ref: 4
PIN
0421109189
€ 2.00
5
0910306213
ref: 5
BOLT(6X30)
0910306213
€ 2.50
6
1197125D00
ref: 6
PLUG,ENGINE OIL FILLER
1197125D00
€ 5.50
7
0928017003
ref: 7
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
8
1137124F00
ref: 8
COVER,CLUTCH OUTER
1137124F00
€ 42.50
9
1137224F00
ref: 9
CUSHION,CLUTCH OUTER COVER
1137224F00
€ 9.50
10
0913906107
ref: 10
SCREW(6X16)
0913906107
€ 4.00
11
1137324F00
ref: 11
WASHER,CLUTCH OUTER COV SCREW
1137324F00
€ 3.00
12
1138024F20
ref: 12
COVER,STARTER CLUTCH
1138024F20
€ 174.00
13
1149124F01
ref: 13
GASKET,STARTER CLUTCH COVER (NAS)
1149124F01
€ 9.00
14
0421109149
ref: 14
PIN
0421109149
€ 2.00
15
0910306212
ref: 15
BOLT(6X25)
0910306212
€ 2.50
16
0910306214
ref: 16
BOLT(6X35)
0910306214
€ 2.50
17
0916806023
ref: 17
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
18
0925936021
ref: 18
PLUG
0925936021
€ 11.00
19
0928033004
ref: 19
O RING(D:3.1,ID:32.7)
0928033004
€ 2.50
20
0924816012
ref: 20
PLUG,16X8
0924816012
€ 4.50
21
0916816002
ref: 21
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
22
1138224F20
ref: 22
CAP,STARTER IDLE GEAR
1138224F20
€ 46.00
23
1149224F00
ref: 23
GASKET,START IDLE GEAR CAP (NAS)
1149224F00
€ 6.50
24
0421109149
ref: 24
PIN
0421109149
€ 2.00
25
0910306212
ref: 25
BOLT(6X25)
0910306212
€ 2.50
26
0910306214
ref: 26
BOLT(6X35)
0910306214
€ 2.50
27
1135124F00
ref: 27
COVER,MAGNETO
1135124F00
€ 73.00
28
1148324F00
ref: 28
GASKET,MAGNETO COVER (NAS)
1148324F00
€ 10.00
29
0421109149
ref: 29
PIN
0421109149
€ 2.00
30
0910306213
ref: 30
BOLT(6X30)
0910306213
€ 2.50
31
1136124F10
ref: 31
COVER,ENGINE SPROCKET
1136124F10
€ 134.00
32
1136224F00
ref: 32
PROTECTOR,ENGINE SPRKT COVER
1136224F00
€ 5.00
33
0421109149
ref: 33
PIN
0421109149
€ 2.00
34
0910306215
ref: 34
BOLT(6X40)
0910306215
€ 2.00
35
0910306216
ref: 35
BOLT(6X55)
0910306216
€ 2.50
36
1138324F00
ref: 36
COVER,GEAR SHIFT
1138324F00
€ 74.50
37
1148524F00
ref: 37
GASKET,GEAR SHIFT COVER (NAS)
1148524F00
€ 7.00
38
0421109149
ref: 38
PIN
0421109149
€ 2.00
39
0154706253
ref: 39
01547-0625B
SCREW
0154706253
€ 2.50
40
0154706353
ref: 40
01547-0635B
BOLT
0154706353
€ 3.00
41
1133024F01
ref: 41
COVER,BREATHER
€ 30.00
42
1131824F01
ref: 42
GASKET,BREATHER COVER (NAS)
1131824F01
€ 6.00
43
0154706303
ref: 43
01547-0630B
BOLT,G/S SWITC
0154706303
€ 3.00
