FUEL TANK (GSX1300RK6)

GSX1300RZ HAYABUSA 2006 (K6) USA (E03)

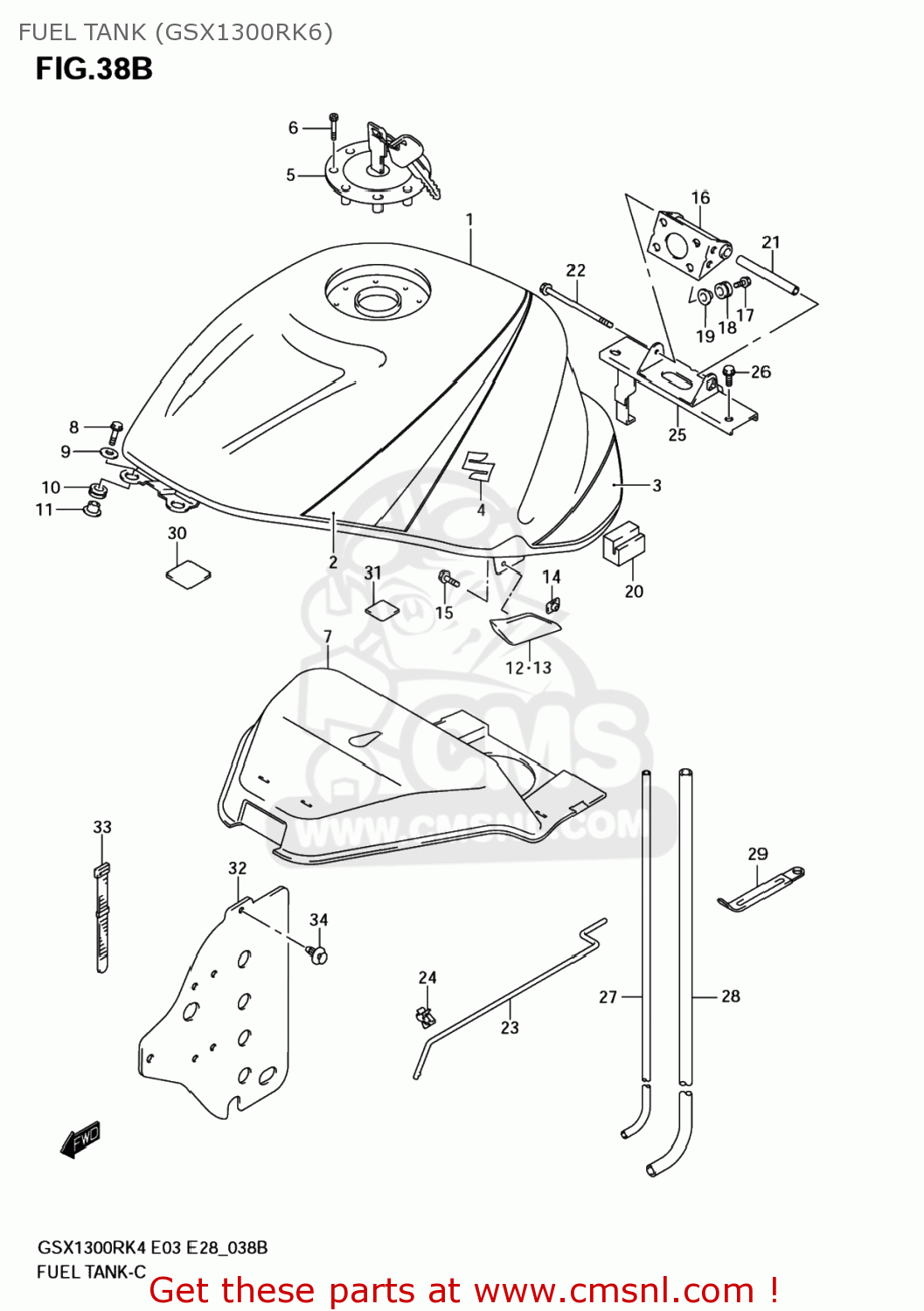

Fuel tank (gsx1300rk6) diagram GSX1300RZ HAYABUSA 2006 (K6) USA (E03)

FUEL TANK (GSX1300RK6) GSX1300RZ HAYABUSA 2006 (K6) USA (E03)
FUEL TANK (GSX1300RK6) GSX1300RZ HAYABUSA 2006 (K6) USA (E03)
FUEL TANK (GSX1300RK6) GSX1300RZ HAYABUSA 2006 (K6) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4910024F20YKZ
ref: 1-1
TANK ASSY,FUEL(BLUE)
€ 766.50
1-2
4910024F20YHL
ref: 1-2
TANK ASSY,FUEL(RED)
€ 766.50
1-3
4910024F20YAY
ref: 1-3
TANK ASSY,FUEL(BLACK)
€ 766.50
1-4
4910024F40YKZ
ref: 1-4
TANK ASSY,FUEL(BLUE)
€ 0.00
1-5
4910024F40YHL
ref: 1-5
TANK ASSY,FUEL(RED)
€ 0.00
1-6
4910024F40YAY
ref: 1-6
TANK ASSY,FUEL(BLACK)
€ 0.00
2-1
6811024F30DAJ
ref: 2-1
TAPE SET,FUEL TANK
€ 66.50
2-2
6811024F30DAK
ref: 2-2
TAPE SET,FUEL TANK
€ 53.50
2-3
6811024F30DAL
ref: 2-3
TAPE SET,FUEL TANK
6811024F30DAL
€ 65.50
3-1
6811024F40CZV
ref: 3-1
TAPE SET,FUEL TANK LWR
€ 23.00
3-2
6811024F40CZW
ref: 3-2
TAPE SET,FUEL TANK LWR
€ 21.00
3-3
6811024F40CZY
ref: 3-3
TAPE SET,FUEL TANK LWR
6811024F40CZY
€ 19.00
4
6811118G20
ref: 4
EMBLEM,S
6811118G20
€ 22.50
5-1
4420133810
ref: 5-1
CAP SET,FUEL TANK
4420133810
€ 234.50
5-2
4420033890
ref: 5-2
CAP ASSY,FUEL TANK FILLER
€ 0.00
6
0910605017
ref: 6
BOLT(5X20)
0910605017
€ 3.00
7
4419124F10
ref: 7
SHIELD,FUEL TANK HEAT
€ 300.50
8
0913906029
ref: 8
SCREW(6X25)
0913906029
€ 5.00
9
0916006036
ref: 9
WASHER(6.5X18X1.5)
0916006036
€ 1.50
10
0932009009
ref: 10
CUSHION
0932009009
€ 5.00
11
0916906062
ref: 11
WASHER
0916906062
€ 3.00
12
4453324F00
ref: 12
COVER,FUEL TANK SIDE,R
4453324F00
€ 17.00
13
4454324F00
ref: 13
COVER,FUEL TANK SIDE,L
4454324F00
€ 16.50
14
4454024F10
ref: 14
PLATE,FUEL TANK SIDE
4454024F10
€ 11.00
15
0214206103
ref: 15
02142-0610A
SCREW 6X10
0214206103
€ 2.00
16
4456024F01
ref: 16
BRACKET,FUEL TANK RR NO.1
€ 23.50
17
0911606152
ref: 17
BOLT(6X20)
0911606152
€ 2.00
18
0932008001
ref: 18
CUSHION
0932008001
€ 3.50
19
0916906062
ref: 19
WASHER
0916906062
€ 3.00
20
4454124F00
ref: 20
CUSHION,FUEL TANK SIDE
4454124F00
€ 6.00
21
4456133E10
ref: 21
SPACER,FUEL TANK RR
4456133E10
€ 19.00
22
0155008953
ref: 22
01550-0895A
BOLT
0155008953
€ 3.50
23
4457433E01
ref: 23
STAY,FUEL TANK
4457433E01
€ 13.50
24
0940305310
ref: 24
CLAMP
0940305310
€ 4.50
25
4455024F00
ref: 25
BRACKET,FUEL TANK RR NO.2
4455024F00
€ 37.50
26
0155008123
ref: 26
01550-0812A
BOLT
0155008123
€ 3.50
27
4442324F00
ref: 27
HOSE,FUELTANK BREATHER
4442324F00
€ 10.00
28
0935270113600
ref: 28
HOSE(7X11X600)
0935270113600
€ 17.50
29
0940406433
ref: 29
CLAMP(L:80)
0940406433
€ 3.00
30
4453424F00
ref: 30
CUSHION
4453424F00
€ 3.00
31
4453524F00
ref: 31
44534-24F00
CUSHION,FUEL TANK COVER
4453524F00
€ 3.00
32
4427124F00
ref: 32
SHEET,HEAT SHIELD RUBBER
4427124F00
€ 51.00
33
0940718402
ref: 33
CLAMP(L:165)
0940718402
€ 2.50
34
09409063225PK
ref: 34
CLIP(BLACK)
09409063225PK
€ 3.00
