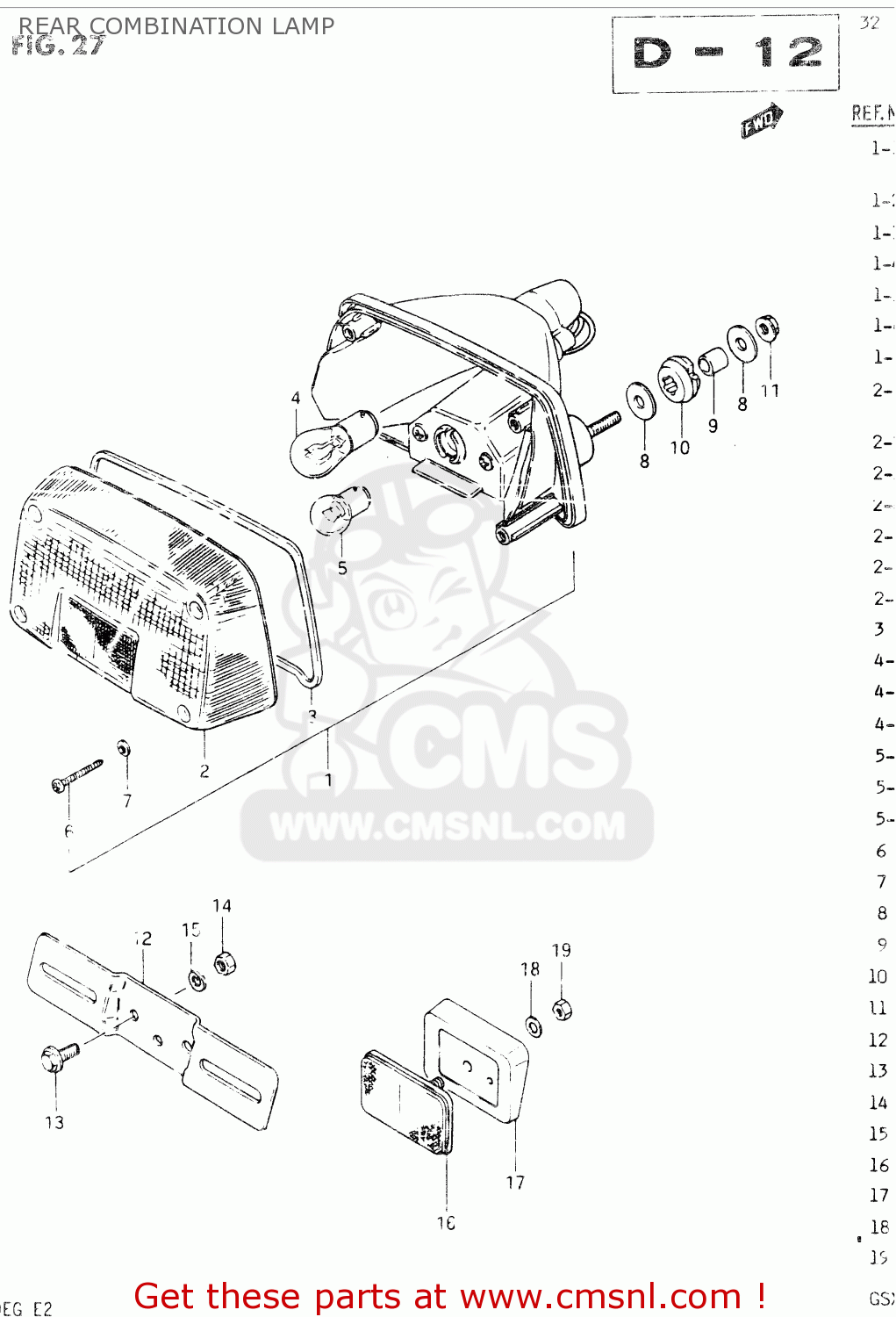

REAR COMBINATION LAMP

ref

part #

description

quantity

1-1

3571011582
ref: 1-1
MODEL E/F E2,E4,E16,

LAMP ASSY, REAR COMBINATION

€ 182.00

1-2

3571011522
ref: 1-2
MODEL G E2,E4,E21

LAMP ASSY, REAR COMBINATION

€ 182.00

1-3

3571011571
ref: 1-3
MODEL E/F E17

LAMP ASSY, REAR COMBINATION

€ 164.50

1-4

3571011572
ref: 1-4
MODEL G E17

LAMP ASSY, REAR COMBINATION

€ 0.00

1-5

3571011591
ref: 1-5
MODEL E/F E22,E25

LAMP ASSY,RR C

€ 182.00

1-6

3571011592
ref: 1-6
MODEL G E22,E25

LAMP ASSY

€ 182.00

1-7

3571011501
ref: 1-7
E24

LAMP ASSY, REAR COMBINATION

€ 76.00

2-1

3571211521
ref: 2-1
MODEL E/F E2,E4,E16,

LENS,RR COMBI

€ 59.50

2-2

3571211552
ref: 2-2
MODEL G E2,E4,E21

LENS

€ 59.50

2-3

3571211570
ref: 2-3
MODEL E/F E17

LENS

€ 30.00

2-4

3571211552
ref: 2-4
MODEL G E17

LENS

€ 59.50

2-5

3571211591
ref: 2-5
MODEL E/F E22,E25

LENS,REAR COMBINATION LAMP

€ 59.50

2-6

3571211563
ref: 2-6
MODEL G E22,E25

LENS

€ 59.50

2-7

3571211500
ref: 2-7
E24

LENS

€ 60.50

3

3571311520
ref: 3

GASKET

€ 5.50

4-1

0947112057
ref: 4-1

BULB 12V21/5W

€ 6.00

4-2

0947112046
ref: 4-2
E22

BULB(12V21/5W)

€ 1.50

4-3

0947112035
ref: 4-3
E24

BULB(12V23W)

€ 5.50

5-1

0947112058
ref: 5-1

BULB

€ 4.00

5-2

0947112062
ref: 5-2
E22

BULB(12V10W,TOKAI DENSO)

€ 0.00

5-3

0947112037
ref: 5-3
E24

BULB

€ 7.00

6

0321104308
ref: 6

SCREW

€ 1.50

7

3562743010
ref: 7

GASKET (NAS)

€ 2.00

8

0916006060
ref: 8

WASHER

€ 2.00

9

0918006006
ref: 9

SPACER (6.8X10X11.5)

€ 3.00

10

0932009010
ref: 10

CUSHION

€ 2.50

11

0831626066
ref: 11

NUT

€ 2.00

12

3592733200
ref: 12

BRACKET, LICENSE PLATE

€ 10.00

13

0151706164
ref: 13

BOLT

€ 2.50

14

0831011066
ref: 14

NUT

€ 2.00

15

0832121066
ref: 15

WASHER,LOCK

€ 2.00

16

3597049310
ref: 16
MODEL E/F E17

REFLECTOR,REFLEX

€ 16.50

17

3597711570
ref: 17
MODEL E/F E17

SPACER

€ 0.00

18

0916005013
ref: 18
MODEL E/F E17

WASHER(5.2X16X1)

€ 1.50

19

0831011056
ref: 19
MODEL E/F E17

NUT

€ 2.50
