STARTING MOTOR

GSX400S 1984 (E) GENERAL EXPORT (E01)

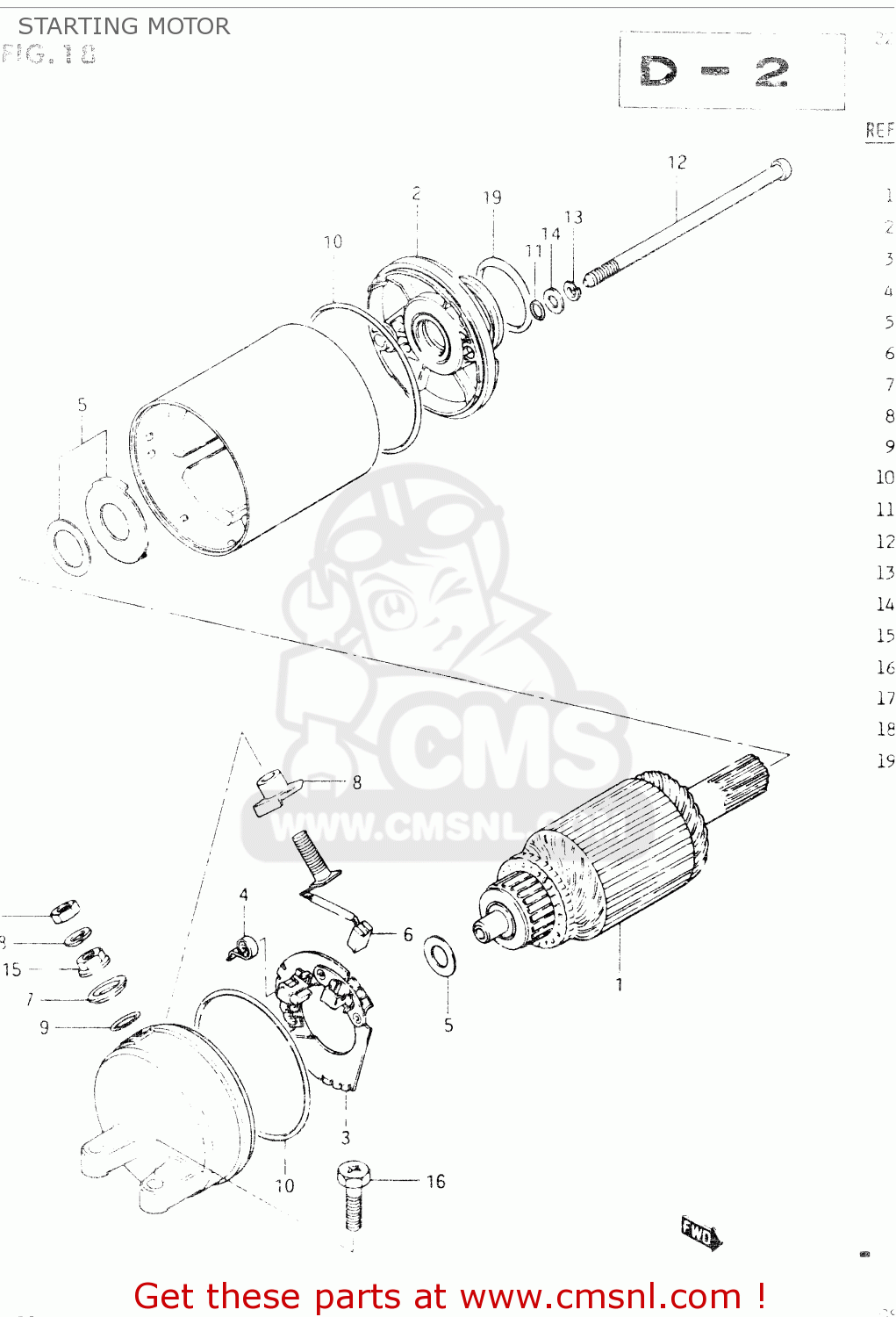

Starting motor diagram GSX400S 1984 (E) GENERAL EXPORT (E01)

STARTING MOTOR GSX400S 1984 (E) GENERAL EXPORT (E01)

STARTING MOTOR GSX400S 1984 (E) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

0

3110043401
ref: 0
FROM 31100-43400

MOTOR ASSEMBLY,STARTING

€ 731.50

1

3131043400
ref: 1

ARMATURE

€ 173.00

2

3115043400
ref: 2

BRACKET SET,STARTING MOTOR

€ 88.00

3

3113244110
ref: 3

HOLDER,BRUSH

€ 47.00

4

3113565010
ref: 4

SPRING

€ 3.00

5

3117043400
ref: 5

SHIM SET,STARTING MOTOR

€ 3.50

6

3113038300
ref: 6

BRUSH SUB ASSY,STARTING MOTOR

€ 12.50

7

3117238300
ref: 7

BUSHING

€ 4.00

8

3117138300
ref: 8

BUSH,B

€ 5.50

9

3114338300
ref: 9

O RING

€ 3.50

10

3126444110
ref: 10

O RING

€ 8.00

11

3115638300
ref: 11

O RING

€ 3.00

12

3128105300
ref: 12

BOLT

€ 8.50

13

0832121057
ref: 13

LOCK WASHER

€ 2.00

14

3116138300
ref: 14

WASHER

€ 2.50

15

0915906017
ref: 15

NUT

€ 2.50

16

0912806024
ref: 16

SCREW (6X25)

€ 2.50

17

0831011066
ref: 17

NUT

€ 2.00

18

0832121066
ref: 18

WASHER,LOCK

€ 2.00

19

0928024003
ref: 19

O RING(D:3,ID:24.5)

€ 2.00
