STAND

GSX400S 1984 (E) GENERAL EXPORT (E01)

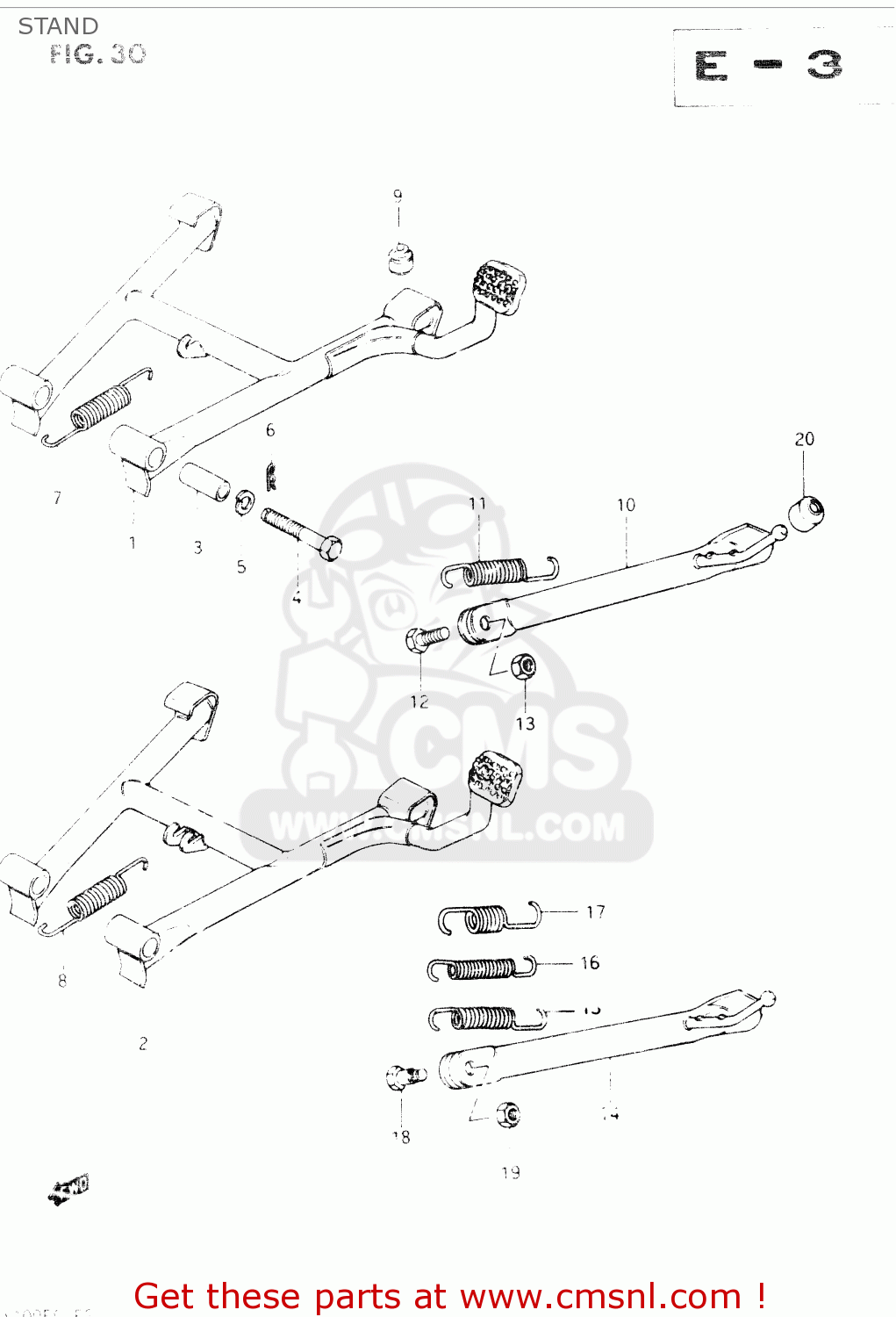

Stand diagram GSX400S 1984 (E) GENERAL EXPORT (E01)

STAND GSX400S 1984 (E) GENERAL EXPORT (E01)

STAND GSX400S 1984 (E) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

4210044400
ref: 1

STAND,CENTER

€ 72.00

2

4210044410
ref: 2
E22,E26

STAND, CENTER

€ 91.50

3

0918010040
ref: 3

SPACER(10X16X38.8)

€ 3.00

4

0910110034
ref: 4

BOLT

€ 6.50

5

0832121108
ref: 5

LOCK WASHER

€ 2.00

6

0938510001
ref: 6

CLIP

€ 1.50

7

0944318006
ref: 7

SPRING

€ 5.50

8

0944318006
ref: 8
E22,E26

SPRING

€ 5.50

9

0932110001
ref: 9

CUSHION

€ 2.50

10

4231044100
ref: 10

STAND,SIDE

€ 29.00

11

0944317005
ref: 11

SPRING

€ 11.50

12

0910010067
ref: 12

BOLT(10X30)

€ 3.50

13

0831022106
ref: 13

NUTM10X1.25X8

€ 2.00

14

4231044110
ref: 14
E16,E22,E26

STAND, PROP

€ 31.50

15

0944317006
ref: 15
E16,E26

SPRING

€ 4.50

16

0944311008
ref: 16
E22

SPRING

€ 5.50

17

0944319002
ref: 17
E22

SPRING, OUTER

€ 4.00

18

0911110019
ref: 18
E16,E22,E26

BOLT L:30

€ 4.50

19

0831022106
ref: 19
E16,E22,E26

NUTM10X1.25X8

€ 2.00

20

0932007001
ref: 20

CUSHION

€ 4.00
