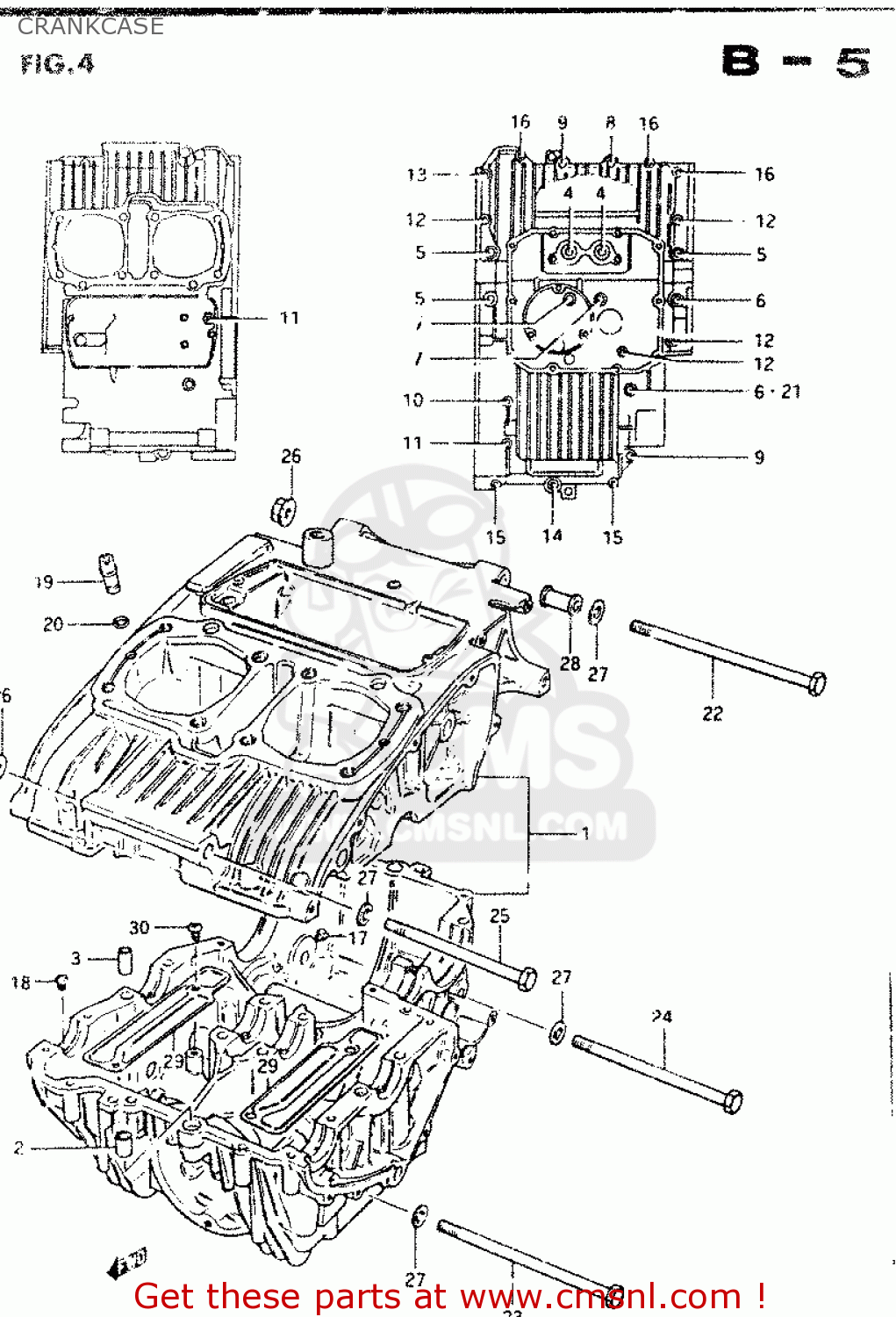

CRANKCASE

ref

part #

description

quantity

1

1130044880
ref: 1

CRANKCASE SET

€ 1,172.50

2

0920613004
ref: 2

PIN(10.4X13X22)

€ 3.00

3

0920611005
ref: 3

PIN (11X20)(SUS)

€ 6.50

4

0711008706
ref: 4

BOLT (8X70)

€ 4.00

5

0910308094
ref: 5

BOLT

€ 4.50

6-1

0910308122
ref: 6-1
MODEL E

BOLT(8X110)

€ 4.00

6-2

0910308024
ref: 6-2
MODEL F/G

BOLT

€ 3.00

7

0910308070
ref: 7

BOLT(8X100)

€ 5.00

8

0151708655
ref: 8

BOLT (8X65)

€ 3.00

9

0151708455
ref: 9

BOLT

€ 3.00

10

0910306033
ref: 10

BOLT(6X125)

€ 3.50

11

0910306067
ref: 11

BOLT(6X105)

€ 3.50

12

0151706905
ref: 12

BOLT (6X90)

€ 3.50

13

0151706705
ref: 13

BOLT

€ 2.50

14

0151706655
ref: 14

BOLT

€ 2.50

15

0151706505
ref: 15

BOLT 6X50

€ 2.00

16

0151706455
ref: 16

BOLT (6X45)

€ 2.50

17

0949322010
ref: 17

JET,AIR

€ 12.00

18

0949332002
ref: 18

JET

€ 11.50

19

0949324008
ref: 19

JET

€ 16.00

20

0928003003
ref: 20

O RING(D:1.05,ID:3.1)

€ 2.50

21

0916808008
ref: 21

GASKET 8.2X14X1 (NAS)

€ 1.00

22

0910010139
ref: 22

BOLT

€ 6.50

23

0910010145
ref: 23

BOLT

€ 46.50

24

0910010136
ref: 24

BOLT

€ 28.50

25

0910010135
ref: 25

BOLT

€ 6.50

26

0831931105
ref: 26

NUT 10MM

€ 3.00

27

0832211105
ref: 27

WASHER

€ 2.50

28

1161011410
ref: 28

SPACER,ENGINE MOUNT

€ 9.50

29

1152144100
ref: 29

PLATE,OIL SEPARATOR

€ 3.00

30

0211206108
ref: 30

SCREW

€ 1.50
