CRANKSHAFT BALANCER

GSX400S 1986 (G) GENERAL EXPORT (E01)

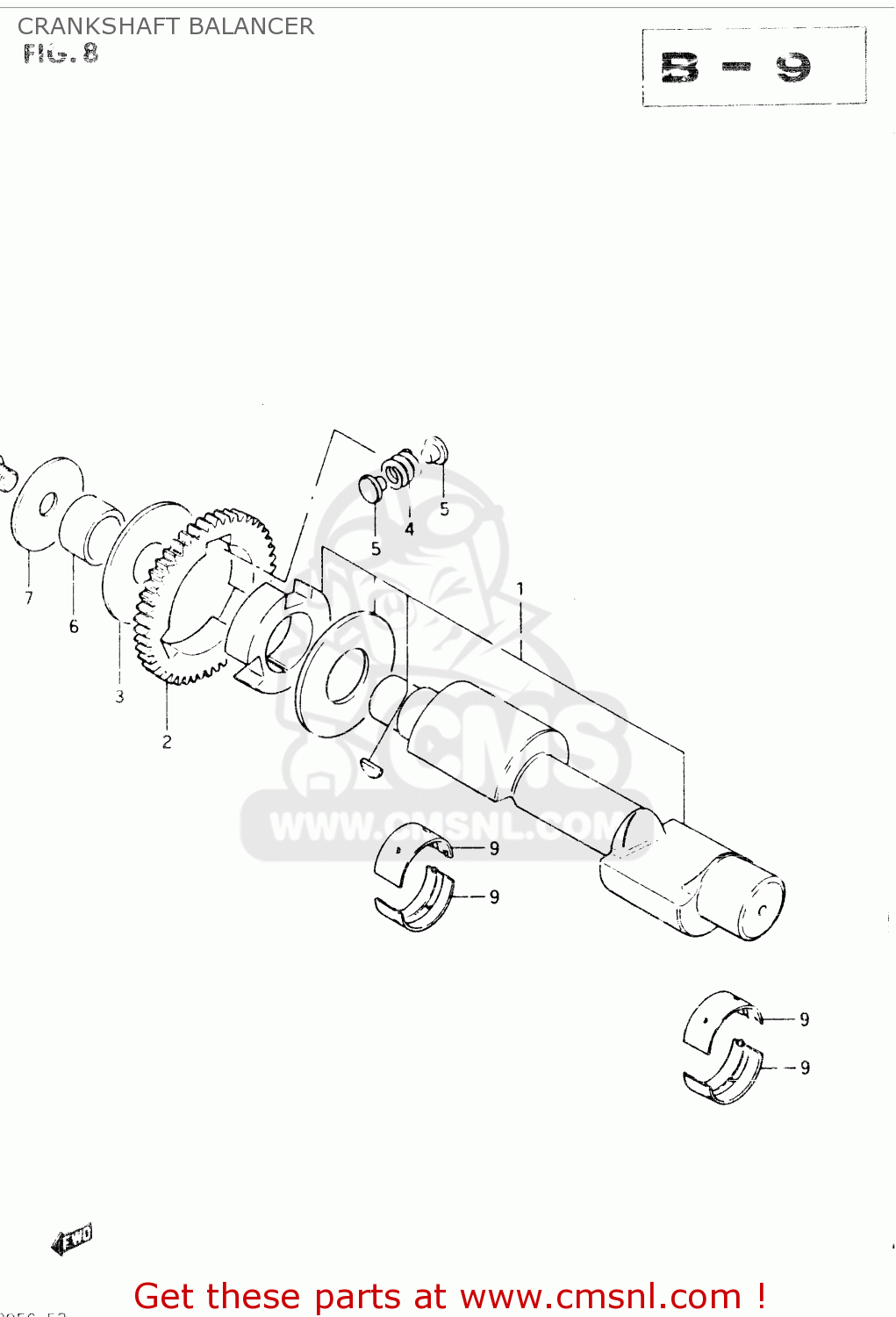

Crankshaft balancer diagram GSX400S 1986 (G) GENERAL EXPORT (E01)

CRANKSHAFT BALANCER GSX400S 1986 (G) GENERAL EXPORT (E01)

CRANKSHAFT BALANCER GSX400S 1986 (G) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1265044100
ref: 1

BALANCER,CRANKSHAFT

€ 223.00

2

1266644000
ref: 2

GEAR,CRANK BALANCER DRIVE

€ 128.00

3

0916024017
ref: 3

WASHER

€ 12.00

4

0944015007
ref: 4

SPRING

€ 23.50

5

0920108001
ref: 5

PIN

€ 3.50

6-1

0918024004
ref: 6-1

SPACER

€ 7.00

6-2

0918024006
ref: 6-2

SPACER

€ 7.00

7

0916012039
ref: 7

WASHER(12X50X3)

€ 8.00

8

0110712208
ref: 8

BOLT

€ 3.00

9-1

1222944100010
ref: 9-1
GREEN

METAL CRANKSHAFT

€ 10.50

9-2

1222944100020
ref: 9-2
BLACK

METAL CRANKSHAFT

€ 11.00

9-3

1222944100030
ref: 9-3
BROWN

METAL CRANKSHAFT

€ 11.00

9-4

1222944100040
ref: 9-4
YELLOW

METAL CRANKSHAFT

€ 11.00
