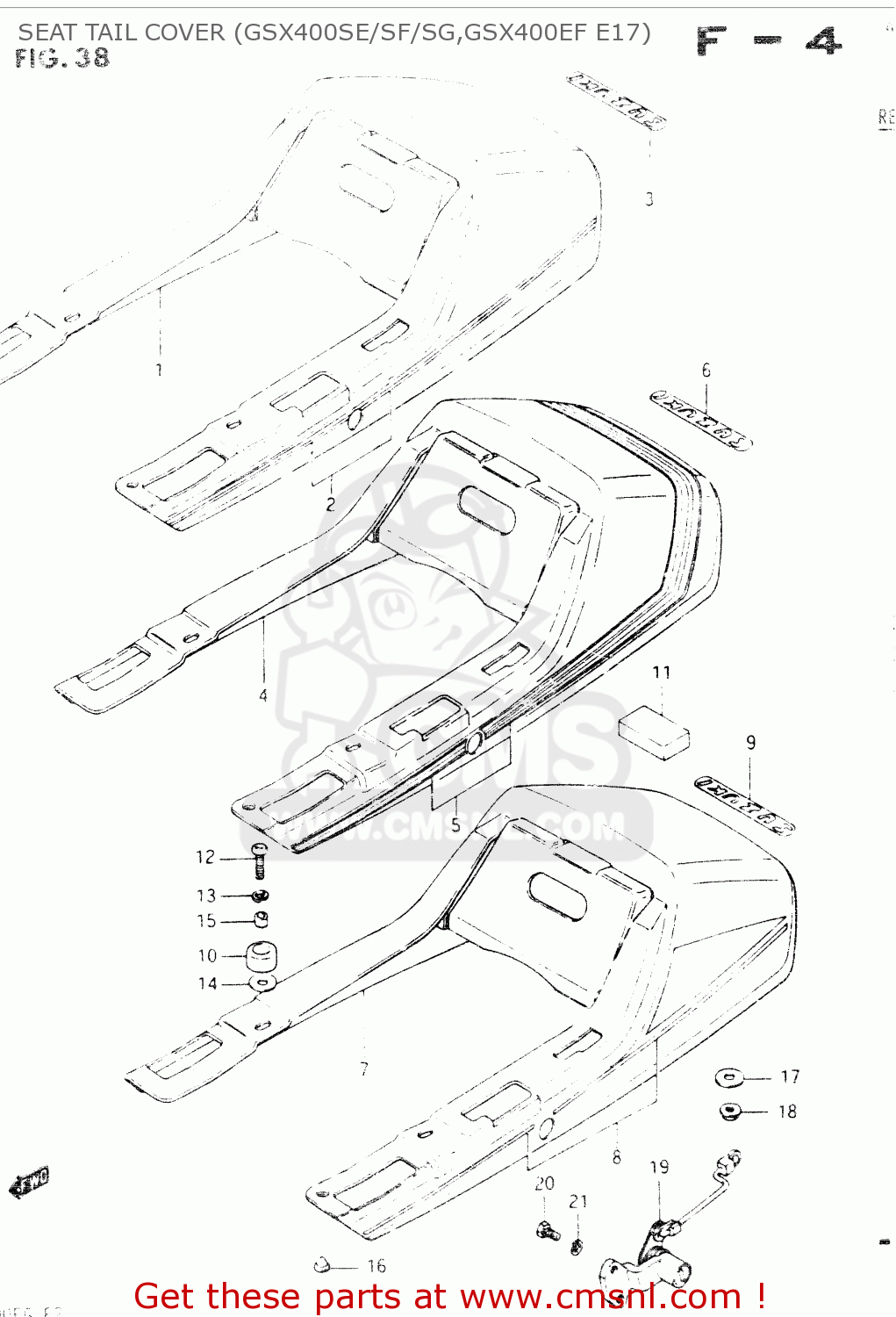

SEAT TAIL COVER (GSX400SE/SF/SG,GSX400EF E17)

ref

part #

description

quantity

1-1

455104448087P
ref: 1-1
MODEL E

COVER, SEAT TAIL

€ 127.00

1-2

455104448086R
ref: 1-2
MODEL E

COVER, SEAT TAIL

€ 127.00

2-1

681604444087P
ref: 2-1
MODEL E,FOR 87P

TAPE SET, SEAT TAIL COVER

€ 0.00

2-2

681604444086R
ref: 2-2
MODEL E,FOR 86R

TAPE SET, SEAT TAIL COVER

€ 0.00

3

681663130007G
ref: 3
MODEL E

EMBLEM

€ 4.50

4-1

45590444307PD
ref: 4-1
MODEL F

COVER, SEAT TAIL

€ 0.00

4-2

45590444307PE
ref: 4-2
MODEL F

COVER, SEAT TAIL

€ 0.00

5-1

68160444707PN
ref: 5-1
MODEL F,FOR 7PD

TAPE SET, SEAT TAIL COVER

€ 0.00

5-2

68160444707PP
ref: 5-2
MODEL F,FOR 7PE

TAPE SET, SEAT TAIL COVER

€ 0.00

6

6816631300019
ref: 6
MODEL F

EMBLEM

€ 4.00

7-1

45580444007JK
ref: 7-1
MODEL G

COVER, SEAT TAIL

€ 0.00

7-2

45580444007PD
ref: 7-2
MODEL G

COVER, SEAT TAIL

€ 0.00

8-1

681604449065G
ref: 8-1
MODEL G,FOR 7JK

TAPE SET, SEAT TAIL COVER

€ 0.00

8-2

681604449083Y
ref: 8-2
MODEL G,FOR 7PD

TAPE SET, SEAT TAIL COVER

€ 0.00

9

6816631300064
ref: 9
MODEL G

EMBLEM(WHITE)

€ 3.50

10

4514944400
ref: 10

CUSHION,COVER

€ 6.50

11

4556244410
ref: 11

CUSHION

€ 2.50

12

0211206206
ref: 12

SCREW

€ 2.00

13

0832121066
ref: 13

WASHER,LOCK

€ 2.00

14

0916006004
ref: 14

WASHER (6.5X24X1.6)

€ 1.50

15

0918006073
ref: 15

SPACER

€ 2.00

16

0932106016
ref: 16

CUSHION

€ 2.00

17

0916906016
ref: 17

WASHER

€ 1.50

18

0916906016
ref: 18

WASHER

€ 1.50

19

4570044400KEY
ref: 19

LOCK ASSEMBLY,SEAT

€ 46.50

20

0110705106
ref: 20

BOLT

€ 1.50

21

0832121056
ref: 21

LOCK WASHER

€ 3.00

all assemblies
