CAM SHAFT-VALVE

GSX550ES 1986 (G) (E01 E02 E21 E22 E25 E34)

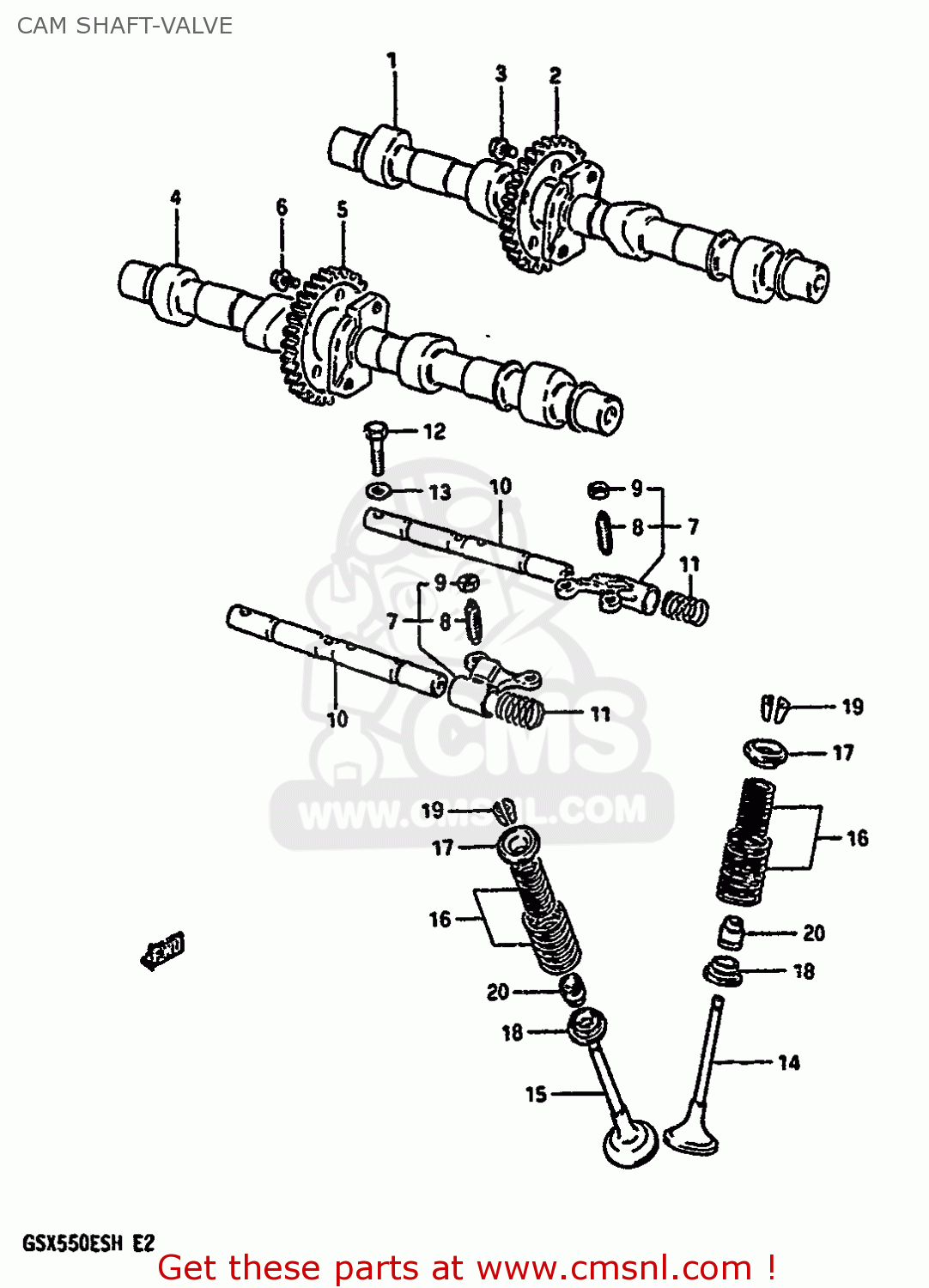

Cam shaft-valve diagram GSX550ES 1986 (G) (E01 E02 E21 E22 E25 E34)

CAM SHAFT-VALVE GSX550ES 1986 (G) (E01 E02 E21 E22 E25 E34)
CAM SHAFT-VALVE GSX550ES 1986 (G) (E01 E02 E21 E22 E25 E34)
CAM SHAFT-VALVE GSX550ES 1986 (G) (E01 E02 E21 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
1271143430
ref: 1-1
CAMSHAFT,INTAKE
€ 193.50
1-2
1271143420
ref: 1-2
GSX550EUF/EUG/EUH E2
CAM SHAFT,INTAKE
1271143420
€ 169.50
2
1274143401
ref: 2
SPROCKET,INTAKE CAMSHAFT
1274143401
€ 23.00
3
0910307001
ref: 3
BOLT(7X11)
0910307001
€ 2.00
4-1
1272143402
ref: 4-1
CAMSHAFT,EXHAUST
1272143402
€ 193.50
4-2
1272143420
ref: 4-2
GSX550EUF/EUG/EUH E2
CAM SHAFT,EXHAUST
€ 297.00
5
1274143401
ref: 5
SPROCKET,INTAKE CAMSHAFT
1274143401
€ 23.00
6
0910307001
ref: 6
BOLT(7X11)
0910307001
€ 2.00
7
1284011401
ref: 7
ARM,VALVE ROCKER
1284011401
€ 62.00
8
1284249210
ref: 8
SCREW,TAPPET ADJUSTING
1284249210
€ 5.50
9
1284304A00
ref: 9
NUT,ADJUSTING
1284304A00
€ 3.00
10
1286143401
ref: 10
SHAFT,VALVE ROCKER
€ 25.50
11
0944013024
ref: 11
SPRING
0944013024
€ 3.50
12
0110706306
ref: 12
BOLT
0110706306
€ 2.50
13
0832221066
ref: 13
WASHER, LOWER
0832221066
€ 2.00
14
1291143400
ref: 14
VALVE,INTAKE
1291143400
€ 12.50
15
1291243400
ref: 15
VALVE,EXHAUST
1291243400
€ 37.50
16
1292033230
ref: 16
SPRING SET,VALVE
€ 10.50
17
1293143400
ref: 17
RETAINER,VALVE SPRING
€ 5.50
18
1293333200
ref: 18
SEAT,VALVE SPRING
1293333200
€ 4.50
19
1293227A00
ref: 19
COTTER VALVE
1293227A00
€ 2.50
20
0928905008
ref: 20
SEAL,OIL(5X10.5X8.4)
0928905008
€ 6.00
