SPEEDOMETER-TACHOMETER (GSX550ESF/EFF/ESG/EFG/ESH/EFH)

GSX550ES 1986 (G) (E01 E02 E21 E22 E25 E34)

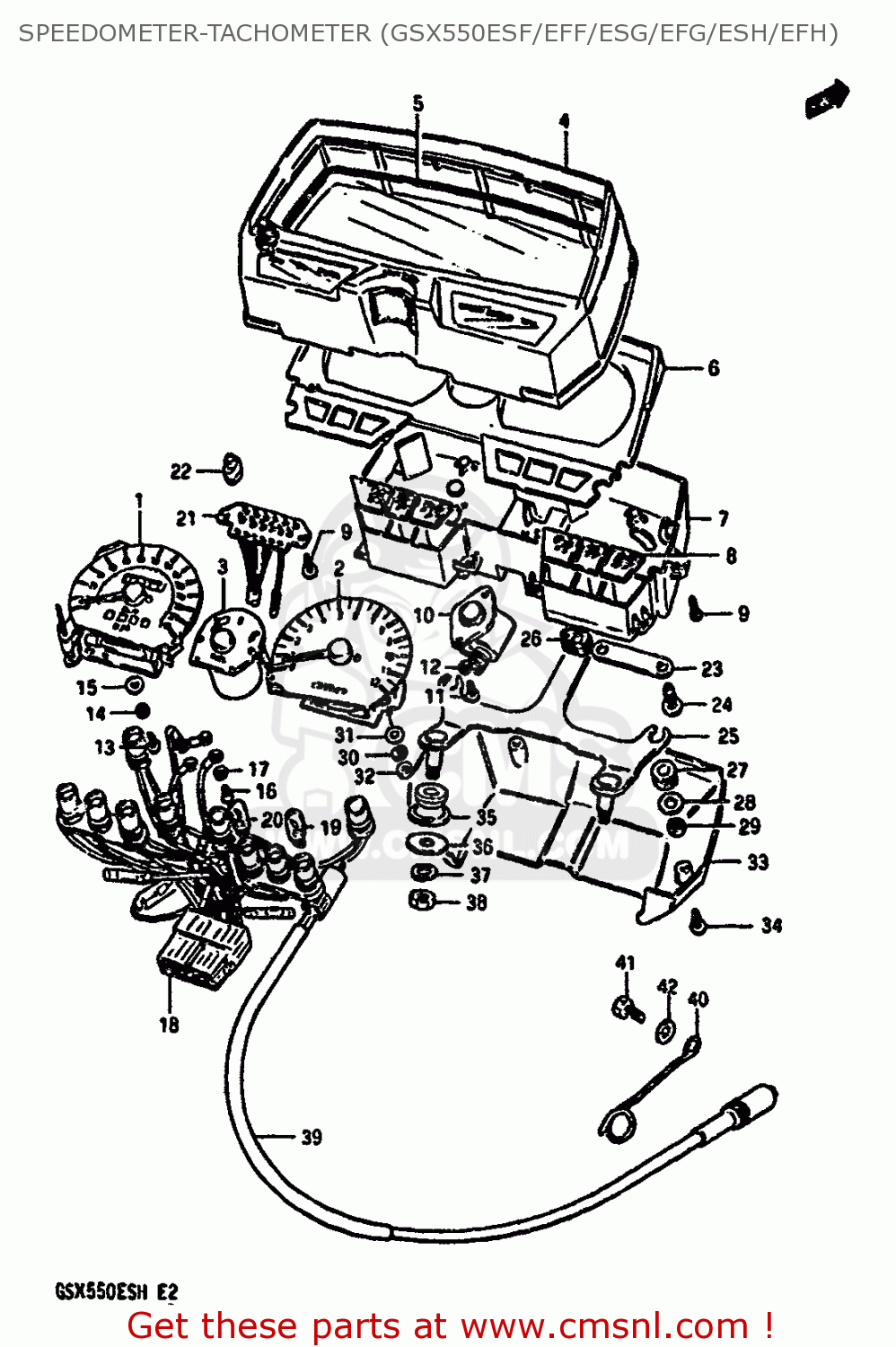

Speedometer-tachometer (gsx550esf/eff/esg/efg/esh/efh) diagram GSX550ES 1986 (G) (E01 E02 E21 E22 E25 E34)

SPEEDOMETER-TACHOMETER (GSX550ESF/EFF/ESG/EFG/ESH/EFH) GSX550ES 1986 (G) (E01 E02 E21 E22 E25 E34)
SPEEDOMETER-TACHOMETER (GSX550ESF/EFF/ESG/EFG/ESH/EFH) GSX550ES 1986 (G) (E01 E02 E21 E22 E25 E34)
SPEEDOMETER-TACHOMETER (GSX550ESF/EFF/ESG/EFG/ESH/EFH) GSX550ES 1986 (G) (E01 E02 E21 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
3412043450
ref: 1-1
METER,SPEEDOMETER (KM/MPH)
€ 157.00
1-2
3412043400
ref: 1-2
SPEEDOMETER (KILO)
3412043400
€ 330.50
2-1
3422043402
ref: 2-1
TACHOMETER
3422043402
€ 459.50
2-2
3422043462
ref: 2-2
E24
TACHOMETER
€ 459.50
3
3432043410
ref: 3
METER,FUEL
3432043410
€ 78.50
4-1
3415043410
ref: 4-1
E1,E4,E6,E17,E21,E24
HOOD,METER
3415043410
€ 72.50
4-2
3415043410
ref: 4-2
E2 ~F.NO.115132
HOOD,METER
3415043410
€ 72.50
4-3
3415043440
ref: 4-3
E2 F.NO.115133~
HOOD,METER
3415043440
€ 72.50
4-4
3415043440
ref: 4-4
E18,E22,E26
HOOD,METER
3415043440
€ 72.50
5
3411243410
ref: 5
GLASS,SPEEDOMETER
3411243410
€ 36.50
6-1
3415343410
ref: 6-1
E1,E4,E6,E17,E21,E24
PLATE,METER WINDOW
3415343410
€ 17.50
6-2
3415343410
ref: 6-2
E2 ~F.NO.115132
PLATE,METER WINDOW
3415343410
€ 17.50
6-3
3415343440
ref: 6-3
E2 F.NO.115133~
PLATE, WINDOW
€ 23.00
6-4
3415343440
ref: 6-4
E18,E22,E26
PLATE, WINDOW
€ 23.00
7
3411143400
ref: 7
CASE,METER,INNER
3411143400
€ 51.00
8-1
3630043810
ref: 8-1
LENS SET,PILOT
€ 24.00
8-2
3630043820
ref: 8-2
E17
LENS SET,PILOT
€ 0.00
9
3645634510
ref: 9
SCREW,GEAR INDICATOR
€ 2.00
10
3413143400
ref: 10
BOX,GEAR
€ 121.50
11
0211204108
ref: 11
SCREW 4X10
€ 2.00
12
0832121047
ref: 12
WASHER,LOCK 4M
0832121047
€ 2.00
13
0211203108
ref: 13
SCREW
0211203108
€ 1.50
14
0832121038
ref: 14
LOCK WASHER
€ 1.50
15
0832221038
ref: 15
WASHER
0832221038
€ 2.00
16
0211203068
ref: 16
SCREW
0211203068
€ 2.00
17
0832221038
ref: 17
WASHER
0832221038
€ 2.00
18-1
3417043400
ref: 18-1
E1,E4,E6,E17,E21,E24
SOCKET,METER
€ 0.00
18-2
3417043400
ref: 18-2
E2 ~F.NO.115132
SOCKET,METER
€ 0.00
18-3
3417043470
ref: 18-3
E2 F.NO.115133~
SOCKER
3417043470
€ 49.00
18-4
3417043470
ref: 18-4
E18,E22,E26
SOCKER
3417043470
€ 49.00
19
0947112082
ref: 19
BULB(12V3.4W,T10,BF175-01450A)
0947112082
€ 3.50
20
0947112077
ref: 20
BULB(12V1.7W,T10,WB121)
0947112077
€ 1.00
21
3645343410
ref: 21
SOCKET,GEAR INDICATOR
3645343410
€ 30.00
22
0947112071
ref: 22
BULB(14V1.12W)
0947112071
€ 5.00
23
3418243400
ref: 23
PLATE,COUPLER
€ 3.00
24
0321204109
ref: 24
SCREW
€ 2.00
25
3495043410
ref: 25
BRACKET,METER
3495043410
€ 17.00
26
3499545720
ref: 26
CUSHION,METER
€ 3.00
27
3499643410
ref: 27
CUSHION,METER
3499643410
€ 3.00
28
0916005031
ref: 28
WASHER
€ 1.50
29
0831022058
ref: 29
NUT
€ 2.50
30
0832121047
ref: 30
WASHER,LOCK 4M
0832121047
€ 2.00
31
3418143400
ref: 31
WASHER,SPEEDOMETER
€ 2.00
32
0831011047
ref: 32
NUT
0831011047
€ 2.00
33
3419343400
ref: 33
COVER,METER,UNDER
3419343400
€ 51.00
34
0311204125
ref: 34
SCREW
0311204125
€ 1.50
35
3495631001
ref: 35
CUSHION,METER BRACKET
3495631001
€ 4.50
36
0916008057
ref: 36
WASHER (8.5X20X1.6)
0916008057
€ 2.00
37
0832121084
ref: 37
WASHER,LOCK,8.
0832121084
€ 2.50
38
0831011085
ref: 38
NUT
€ 1.50
39
3491038430
ref: 39
CABLE ASSY,SPEEDOMETER
3491038430
€ 22.50
40
3493845100
ref: 40
CLAMP,SPEEDOMETER CABLE
3493845100
€ 14.50
41
0110706167
ref: 41
BOLT
0110706167
€ 3.00
42
0832221067
ref: 42
WASHER
0832221067
€ 2.00
