OIL COOLER

GSX550ES 1986 (G) (E01 E02 E21 E22 E25 E34)

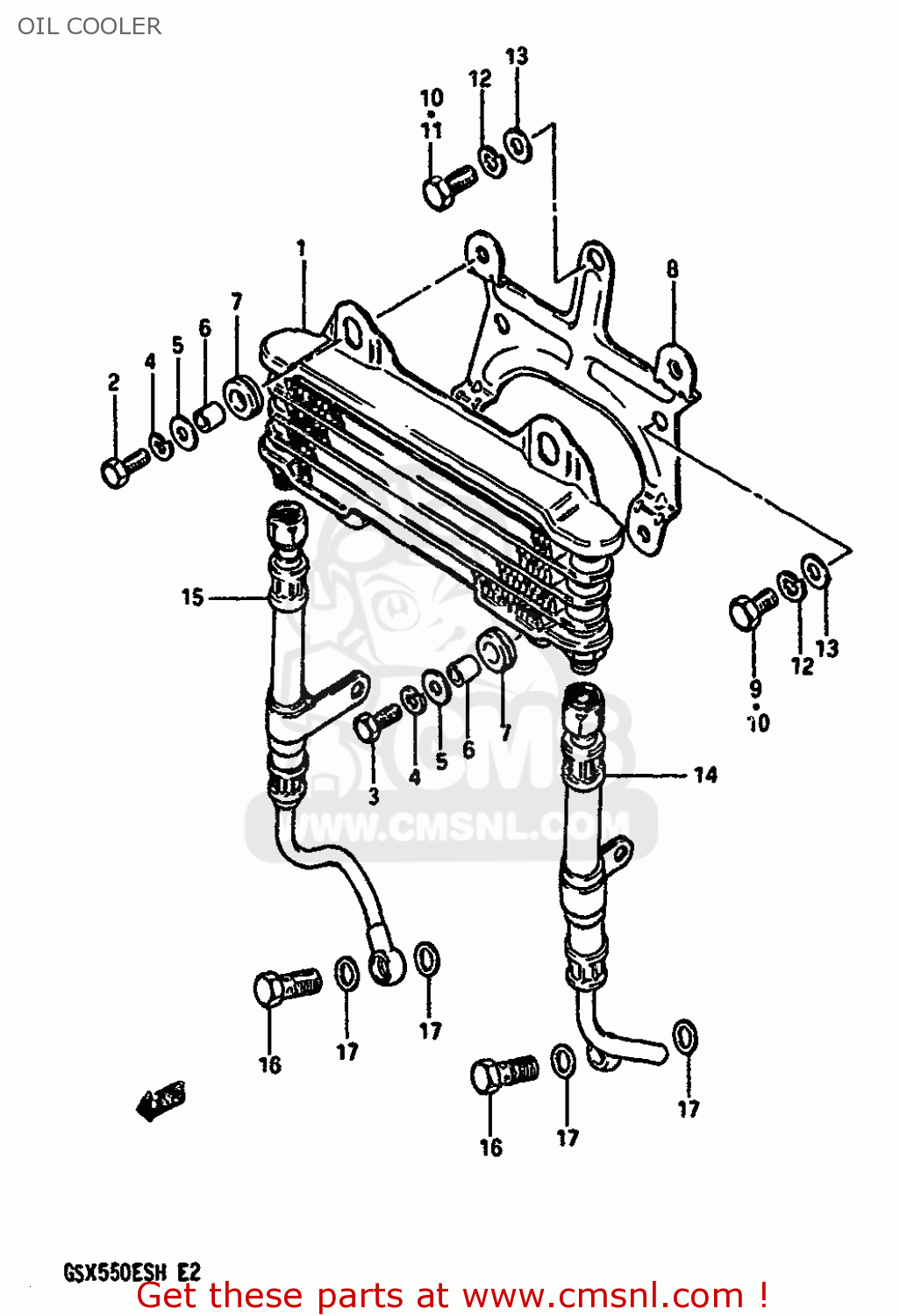

Oil cooler diagram GSX550ES 1986 (G) (E01 E02 E21 E22 E25 E34)

OIL COOLER GSX550ES 1986 (G) (E01 E02 E21 E22 E25 E34)
OIL COOLER GSX550ES 1986 (G) (E01 E02 E21 E22 E25 E34)
OIL COOLER GSX550ES 1986 (G) (E01 E02 E21 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
1660034310
ref: 1
COOLER ASSEMBLY,ENGINE OIL
1660034310
€ 373.00
2
0110706205
ref: 2
BOLT
0110706205
€ 2.00
3
0910006110
ref: 3
BOLT
€ 0.00
4
0832121064
ref: 4
WASHER,LOCK
0832121064
€ 2.00
5
0916006039
ref: 5
WASHER (6.5X18X1.6)
0916006039
€ 2.00
6
0918006030
ref: 6
SPACER (6.8X10X10)
0918006030
€ 2.00
7
0932010015
ref: 7
CUSHION
0932010015
€ 2.50
8
1662043400
ref: 8
BRACKET,OIL COOLER
€ 13.00
9
0110708165
ref: 9
GSX550EF/EG/ESH,GSX5
BOLT
€ 2.00
10
0110708165
ref: 10
GSX550ESF/EFF/EUF/ES
BOLT
€ 2.00
11
0110708205
ref: 11
GSX550EF/EG/ESH,GSX5
BOLT
€ 2.00
12
0832121084
ref: 12
WASHER,LOCK,8.
0832121084
€ 2.50
13
0832211084
ref: 13
WASHER
0832211084
€ 1.50
14
1646043400
ref: 14
HOSE,ENGINE OIL,LEFT
€ 105.00
15
1647043400
ref: 15
HOSE,ENGINE OIL,RIGHT
1647043400
€ 100.00
16
0936014002
ref: 16
BOLT UNION
0936014002
€ 20.50
17
0916814011
ref: 17
GASKET(14X20X1.5) (NAS)
0916814011
€ 2.00
