CAM CHAIN
GSX550EU 1986 (G) GERMANY (E22)

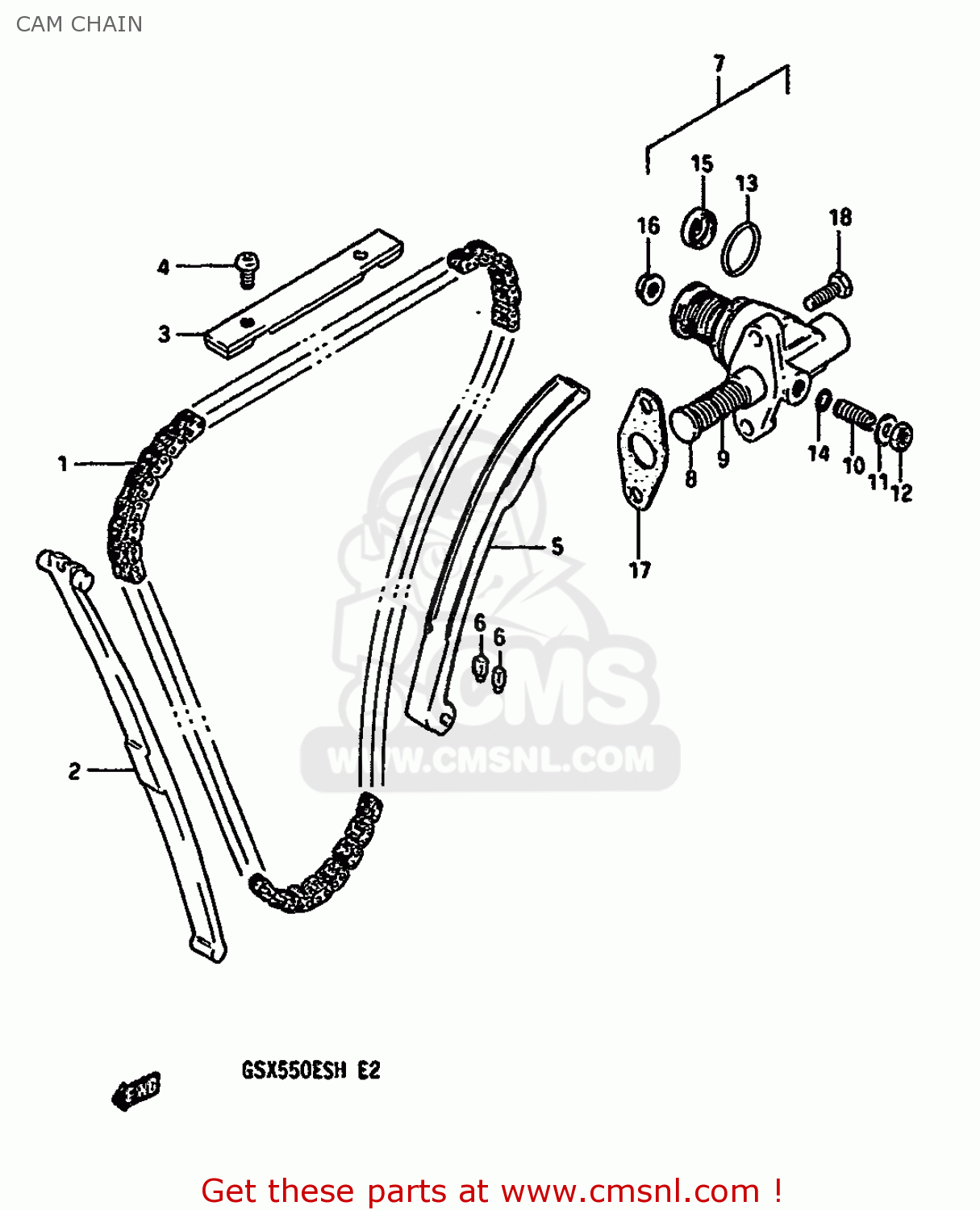

Cam chain diagram GSX550EU 1986 (G) GERMANY (E22)
CAM CHAIN GSX550EU 1986 (G) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1276043400
ref: 1
CHAIN,CAMSHAFT DRIVE
€ 114.00
2
1277143400
ref: 2
GUIDE,CAM CHAIN NO.1
€ 29.50
3
1278233200
ref: 3
GUIDE,CAM CHAIN NO.2
€ 37.50
4
0211205107
ref: 4
SCREW
€ 2.00
5
1281043400
ref: 5
TENSIONER,CAM CHAIN
€ 62.50
6
1281444101
ref: 6
CUSHION,CAM CHAIN TENSIONER
€ 8.50
7
1283033302
ref: 7
ADJUSTER ASSY,TENSIONER
€ 116.50
8
1283333201
ref: 8
ROD,PUSH
€ 17.00
9
0944012029
ref: 9
SPRING
€ 3.50
10
1283845010
ref: 10
SCREW,TENSIONER ADJUST
€ 6.00
11
0832211084
ref: 11
WASHER
€ 1.50
12
0831011085
ref: 12
NUT
€ 1.50
13
0928021013
ref: 13
O RING(D:2.4,ID:20.8)
€ 4.50
14
0928006005
ref: 14
O RING(D:1.9,ID:5.7)
€ 2.50
15
0928410006
ref: 15
SEAL,OIL(10X16X4)
€ 4.00
16
0831616064
ref: 16
NUT 6MM
€ 2.50
17
1283731310
ref: 17
GASKET,TENSIONER ADJUSTER (MCA)
€ 7.50
18
0912806022
ref: 18
SCREW
€ 2.50
