SEAT
GSX550EU 1986 (G) GERMANY (E22)

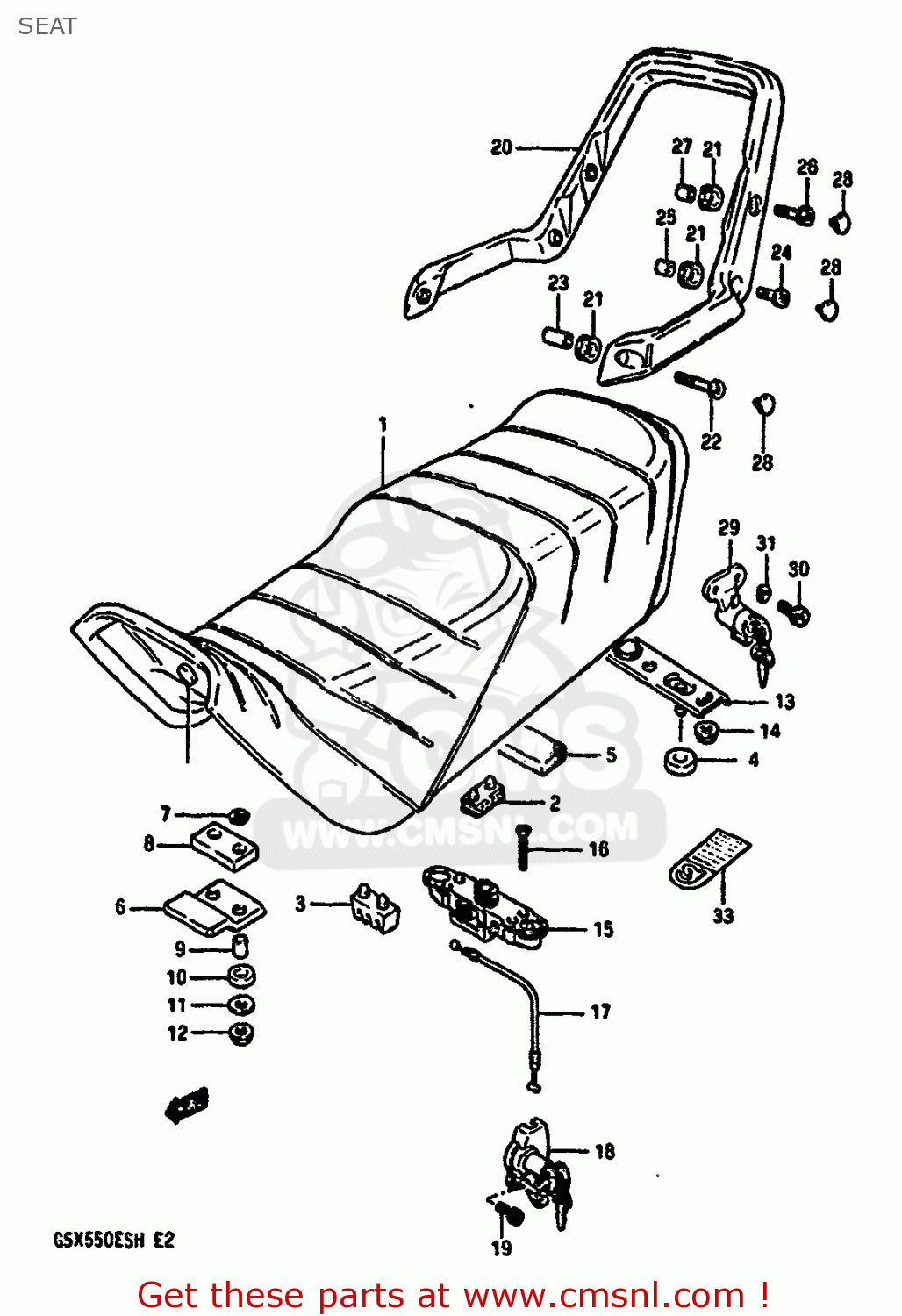

Seat diagram GSX550EU 1986 (G) GERMANY (E22)
SEAT GSX550EU 1986 (G) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
451004340248H
ref: 1-1
MODEL E,FOR 7JJ
SEAT ASSEMBLY
€ 245.50
1-2
451004340253L
ref: 1-2
MODEL E,FOR 7JH
SEAT ASSEMBLY
€ 245.50
1-3
451004342158R
ref: 1-3
MODEL G/H
SEAT ASSEMBLY
€ 245.50
1-4
451004341248H
ref: 1-4
MODEL F E18,E24,FOR
SEAT ASSY (BLAC)
€ 249.00
1-5
451004341253L
ref: 1-5
MODEL F E18,E24,FOR
SEAT ASSY (BLUE)
€ 415.00
1-6
451004343158R
ref: 1-6
MODEL G/H E18,E24
SEAT ASSY (BLACK)
€ 249.00
1-7
451004340358R
ref: 1-7
MODEL H E17
SEAT ASSEMBLY
€ 245.50
2
4514931300
ref: 2
CUSHION,SEAT(40X20X15)
€ 2.00
3
4514945330
ref: 3
CUSHION,SUPPORT(50X25X32)
€ 2.00
4
4521343400
ref: 4
CUSHION,STRIKER
€ 3.50
5
0932910018
ref: 5
CUSHION
€ 2.50
6
9498229400
ref: 6
CUSHION(30X60X10)
€ 1.50
7
4511943401
ref: 7
PLATE,SEAT HOOK,FRONT
€ 0.00
8
0832221067
ref: 8
WASHER
€ 2.00
9
4512513600
ref: 9
CUSHION,SEAT
€ 3.00
10
0918006035
ref: 10
SPACER (6.1X8X12)
€ 2.50
11
0932426470
ref: 11
CUSHION
€ 0.00
12
0916006006
ref: 12
WASHER
€ 2.00
13
0831616066
ref: 13
NUT
€ 2.50
14
4521043400
ref: 14
STRIKER, SEAT LOCK
€ 18.50
15
0831626066
ref: 15
NUT
€ 2.00
16
4522013601
ref: 16
LOCK ASSY,SEAT STRIKER
€ 47.00
17
0211206306
ref: 17
SCREW,6X30
€ 2.50
18
4528043400
ref: 18
CABLE,SEAT LOCK
€ 13.00
19-1
9570043400KEY
ref: 19-1
MODEL E/F/G
LOCK ASSEMBLY,SEAT & HELMET
€ 57.00
19-2
9570043401KEY
ref: 19-2
MODEL H
LOCK ASSEMBLY,SEAT & HELMET
€ 57.00
20
0711006165
ref: 20
BOLT
€ 3.00
21
4621043400
ref: 21
HANDLE,PILLION RIDER
€ 91.50
22
4552243401
ref: 22
GROMMET,PILION RIDER HANDLE
€ 4.00
23
0910608037
ref: 23
BOLT
€ 3.50
24
4621943400
ref: 24
SPACER,PILLION RIDER HOLDER
€ 2.50
25
0910608042
ref: 25
BOLT
€ 3.00
26
4621943420
ref: 26
SPACER,PILLION RIDER HOLDER
€ 3.00
27
0910608039
ref: 27
BOLT
€ 3.50
28
4621943411
ref: 28
SPACER,PILLION RIDER HOLDER
€ 3.50
29
0925006008
ref: 29
CAP(OD:10)
€ 3.00
30
9570043410KEY
ref: 30
LOCK ASSEMBLY,HELMET
€ 35.00
31
0711006165
ref: 31
BOLT
€ 3.00
32
0832121064
ref: 32
WASHER,LOCK
€ 2.00
33
1196782000
ref: 33
E2
LABEL,ASBESTOS WARNING
€ 2.00
