WIRING HARNESS
GSX550EU 1986 (G) GERMANY (E22)

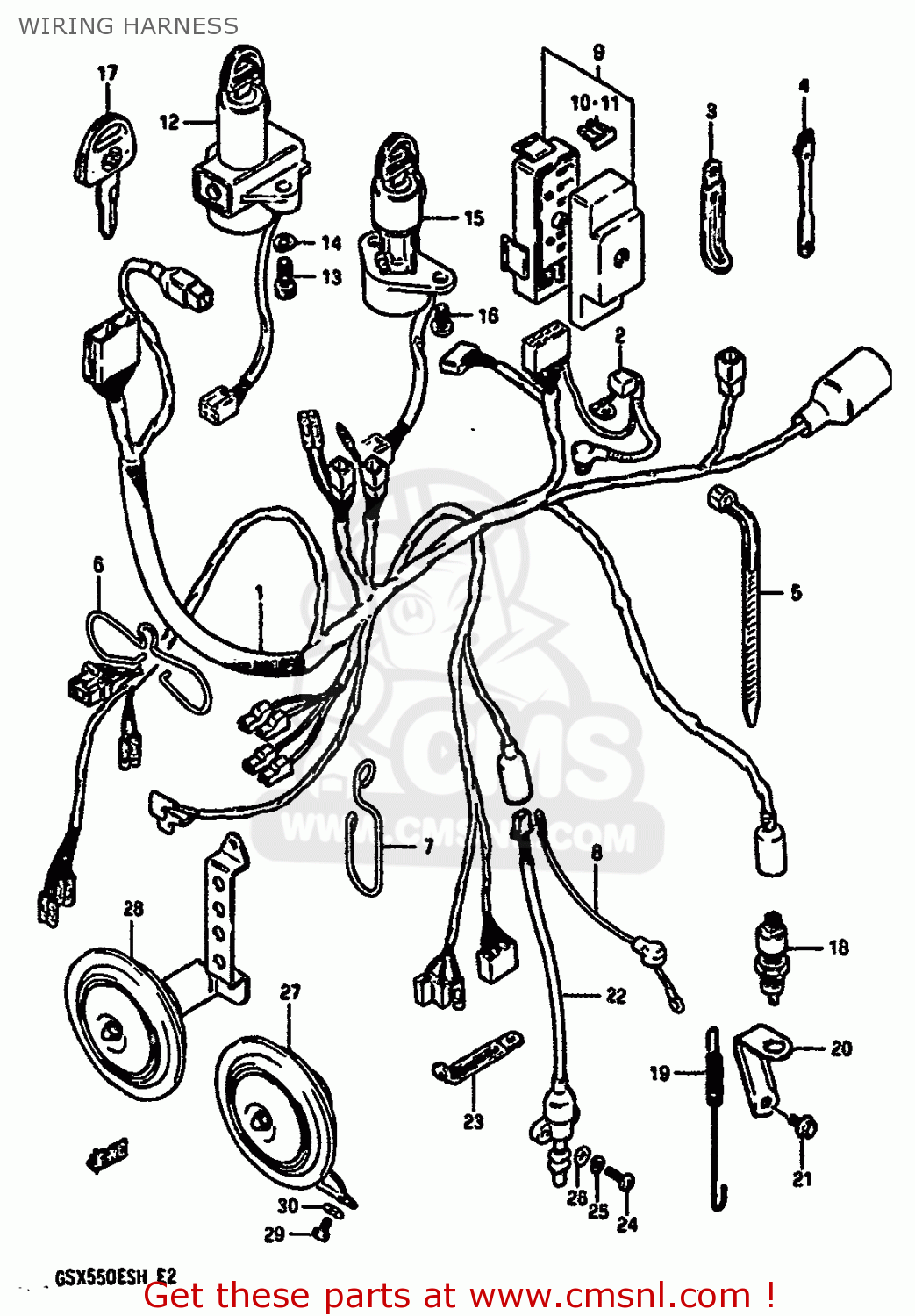

Wiring harness diagram GSX550EU 1986 (G) GERMANY (E22)
WIRING HARNESS GSX550EU 1986 (G) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661043410
ref: 1-1
GSX550EF/EUF/EG/EUG/
HARNESS,WIRING
€ 0.00
1-2
3661043460
ref: 1-2
GSX550ESF/EFF/ESG/EF
HARNESS,WIRING
€ 199.50
2
3362443500
ref: 2
CAP,BATTERY PLUS TERMINAL
€ 3.50
3-1
0940406402
ref: 3-1
CLAMP
€ 2.50
3-2
0940406415
ref: 3-2
CLAMP
€ 3.00
4
0940705403
ref: 4
CLAMP,L:88
€ 1.50
5-1
0940711401
ref: 5-1
CLAMP(L:95)
€ 2.50
5-2
0940714403
ref: 5-2
CLAMP(L:125)
€ 2.50
5-3
0940718402
ref: 5-3
CLAMP(L:165)
€ 2.50
5-4
0940725401
ref: 5-4
CLAMP(L:235)
€ 4.00
6
3661843400
ref: 6
GSX550EF/EUF/EG/EUG/
BOOT,WIRING HARNESS
€ 0.00
7
3661849302
ref: 7
GSX550ESF/EFF/ESG/EF
GUIDE,WIRING HARNESS
€ 4.50
8
3685143410
ref: 8
WIRE
€ 3.00
9
3674043401
ref: 9
FUSE BOX ASSY
€ 61.00
10
0948110101
ref: 10
FUSE(10A)
€ 2.50
11
0948115101
ref: 11
FUSE(15A)
€ 1.50
12-1
3710000A01
ref: 12-1
GSX550EF/EUF/EG
IGNITION SWITCH/STEERING LOCK
€ 122.50
12-2
3710000A52
ref: 12-2
GSX550ESF/EFF/ESG/EF
IGNITION SWITCH/STEERING LOCK
€ 93.50
13
3715247011
ref: 13
BOLT
€ 3.00
14
0832121067
ref: 14
WASHER,LOCK
€ 2.50
15-1
3711011501
ref: 15-1
GSX550EF/EUF/EG/EUG/
SWITCH ASSY,IGNITION
€ 86.00
15-2
3711043452
ref: 15-2
GSX550ESF/EFF/ESG/EF
SWITCH ASSY, IGNITION
€ 83.00
16
0214206125
ref: 16
SCREW 6X12
€ 2.00
17
3714647010
ref: 17
OPT
KEY,BLANK
€ 15.00
18
3774007900
ref: 18
TO 37740-24A00
SWITCH ASSEMBLY,STOP LAMP
€ 20.50
19
0944306005
ref: 19
SPRING
€ 6.00
20
4325143400
ref: 20
BRACKET,BRAKE LAMP SWITCH
€ 0.00
21
0151706108
ref: 21
BOLT
€ 2.50
22
3784031302
ref: 22
SWITCH ASSEMBLY,SIDE STAND
€ 58.50
23
0940406404
ref: 23
CLAMP
€ 3.00
24
0211205205
ref: 24
SCREW 5X20
€ 2.50
25
0832121055
ref: 25
WASHER,LOCK
€ 3.00
26
0832221055
ref: 26
WASHER,5MM
€ 2.50
27-1
3850043400
ref: 27-1
GSX550EF/EUF/EG/EUG/
HORN ASSEMBLY
€ 47.00
27-2
3850043410
ref: 27-2
GSX550EF E34
HORN ASSY
€ 47.00
28-1
3850043450
ref: 28-1
GSX550ESF/EFF/ESG/EF
HORN ASSEMBLY
€ 60.00
28-2
3850043460
ref: 28-2
GSX550ESF/EFF/ESG/EF
HORN ASSY
€ 60.00
29
0110706126
ref: 29
BOLT
€ 2.00
30
0832221066
ref: 30
WASHER, LOWER
€ 2.00
