CAM CHAIN (MODEL J/K/L/M/N/P/R/S)

GSX600F KATANA 1988 (J) USA (E03)

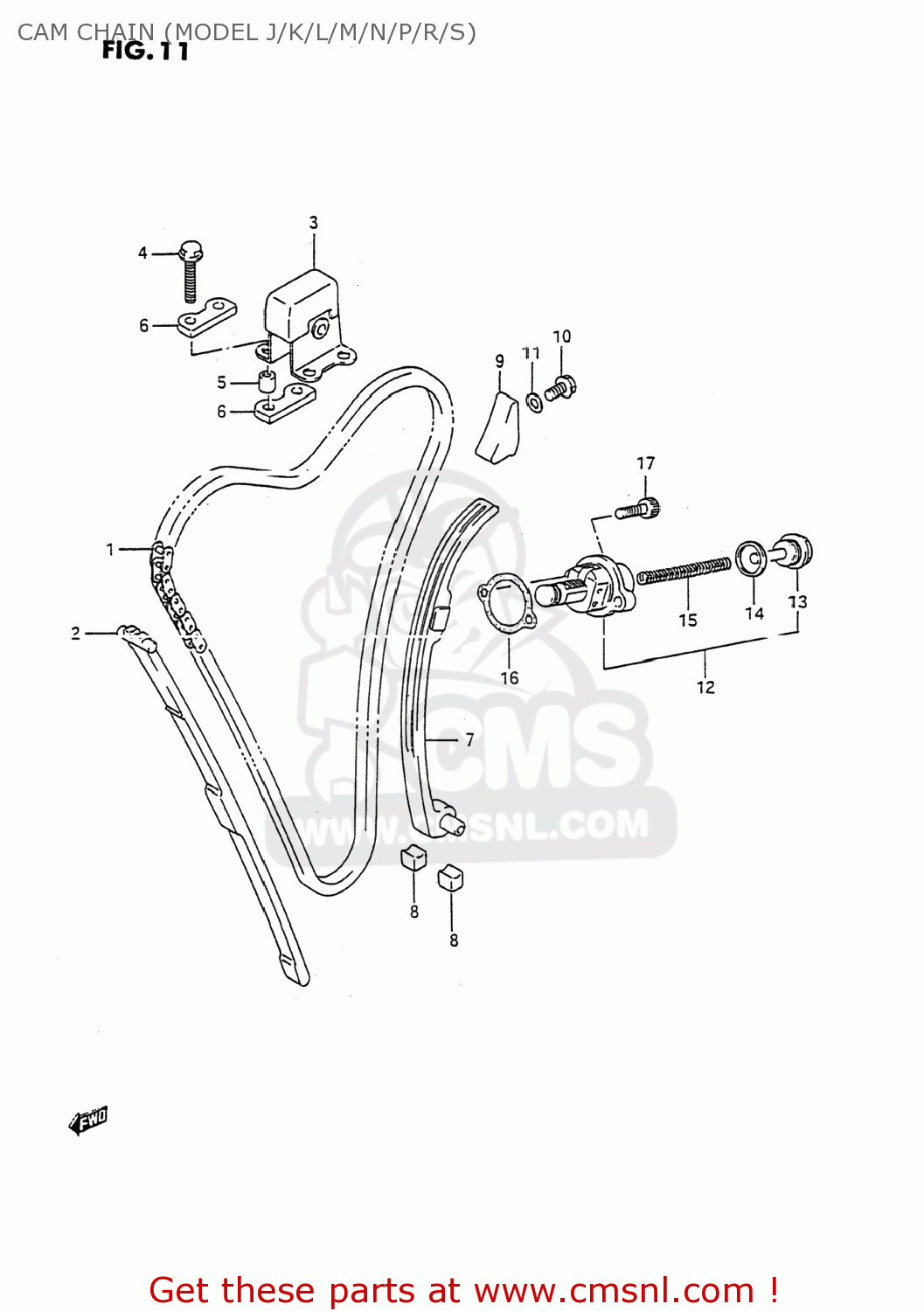

Cam chain (model j/k/l/m/n/p/r/s) diagram GSX600F KATANA 1988 (J) USA (E03)

CAM CHAIN (MODEL J/K/L/M/N/P/R/S) GSX600F KATANA 1988 (J) USA (E03)

CAM CHAIN (MODEL J/K/L/M/N/P/R/S) GSX600F KATANA 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1276027A01
ref: 1-1
12760-17D01

CHAIN,CAMSHAFT DRIVE

€ 125.50

1-2

1276017D00
ref: 1-2
12760-17D01

CHAIN,CAMSHAFT DRIVE

€ 125.50

1-3

1276017D01
ref: 1-3

CHAIN,CAMSHAFT DRIVE

€ 125.50

2

1277127A00
ref: 2

GUIDE,CAM CHAIN NO.1

€ 38.50

3-1

1278027A03
ref: 3-1
12780-40C00

IDLER,CAM CHAIN

€ 84.00

3-2

1278040C00
ref: 3-2

IDLER,CAM CHAIN

€ 84.00

4-1

0151706257
ref: 4-1
01550-06257

BOLT 6X25

€ 2.50

4-2

0155006253
ref: 4-2
01550-0625A

BOLT

€ 2.50

5

0918006167
ref: 5
09180-06286

SPACER (6,8X10X9.4)

€ 2.50

6

1278848B01
ref: 6

CUSION,IDLER

€ 15.00

7

1281027A00
ref: 7

TENSIONER,CAM CHAIN

€ 62.00

8

1281434200
ref: 8

CUSHION,CAM CHAIN TENSIONER

€ 6.50

9

1279127A00
ref: 9

GUIDE,CAM CHAIN NO.2

€ 6.00

10-1

0151706105
ref: 10-1
01550-0610A

BOLT

€ 2.50

10-2

0155006103
ref: 10-2
01550-0610A

BOLT

€ 2.50

11

0916806023
ref: 11

GASKET(5.8X13X1.2) (NAS)

€ 2.00

12

1283027A08
ref: 12

ADJUSTER ASSY,TENSIONER

€ 617.00

13

1283427A00
ref: 13

PLUG

€ 20.50

14

1283227A00
ref: 14

GASKET (NAS)

€ 5.50

15

1283327A00
ref: 15

SPRING

€ 17.00

16

1283727A10
ref: 16

GASKET,TENSIONER ADJUSTER (NAS)

€ 8.50

17-1

0711006255
ref: 17-1
07130-0625B

BOLT

€ 3.00

17-2

0713006253
ref: 17-2
07130-0625B

BOLT,CL.COVER

€ 3.00
