HANDLE SWITCH (MODEL K/L/M/N/P/R/S/T)

GSX600F KATANA 1988 (J) USA (E03)

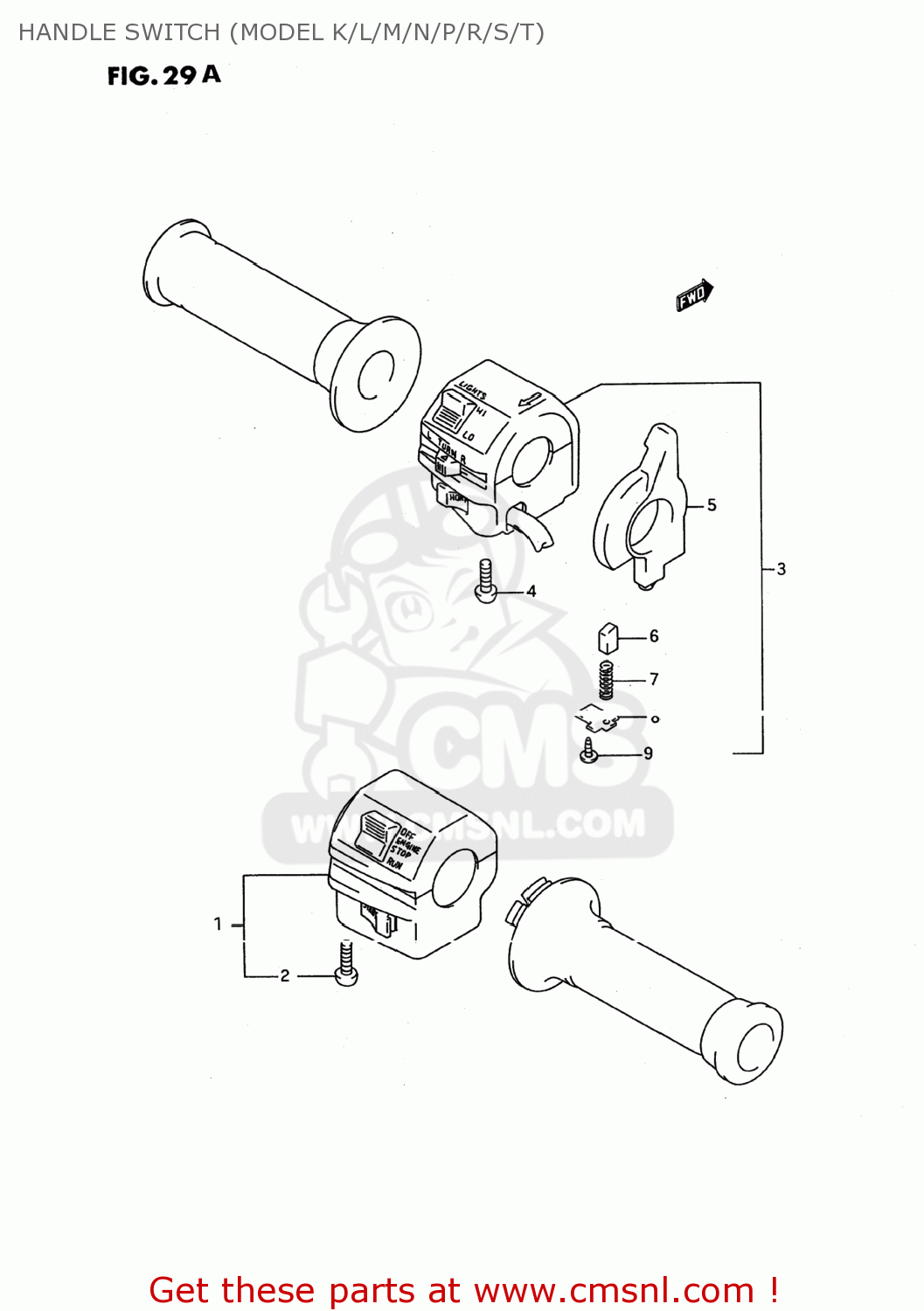

Handle switch (model k/l/m/n/p/r/s/t) diagram GSX600F KATANA 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3720017C32
ref: 1-1
37200-45C22

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 110.00

1-2

3720045C21
ref: 1-2
37200-45C22

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 110.00

0211205455
ref: 2
02112-0545B

SCREW, 5X45

€ 4.00

3740047B31
ref: 3
37400-47B32

SWITCH ASSY, HANDLE,LH

€ 81.00

0211205455
ref: 4
02112-0545B

SCREW, 5X45

€ 4.00

3748130B01
ref: 5

LEVER,CHOKE

€ 13.00

3748230B00
ref: 6

PIECE,SLIDE

€ 4.00

3748330B00
ref: 7

SPRING

€ 7.50

3748630B00
ref: 8

PLATE

€ 3.00

0351104123
ref: 9
03511-0412A

SCREW, TRUNK BOX

€ 1.50
