CARBURETOR (MODEL K)
GSX600F KATANA 1988 (J) USA (E03)

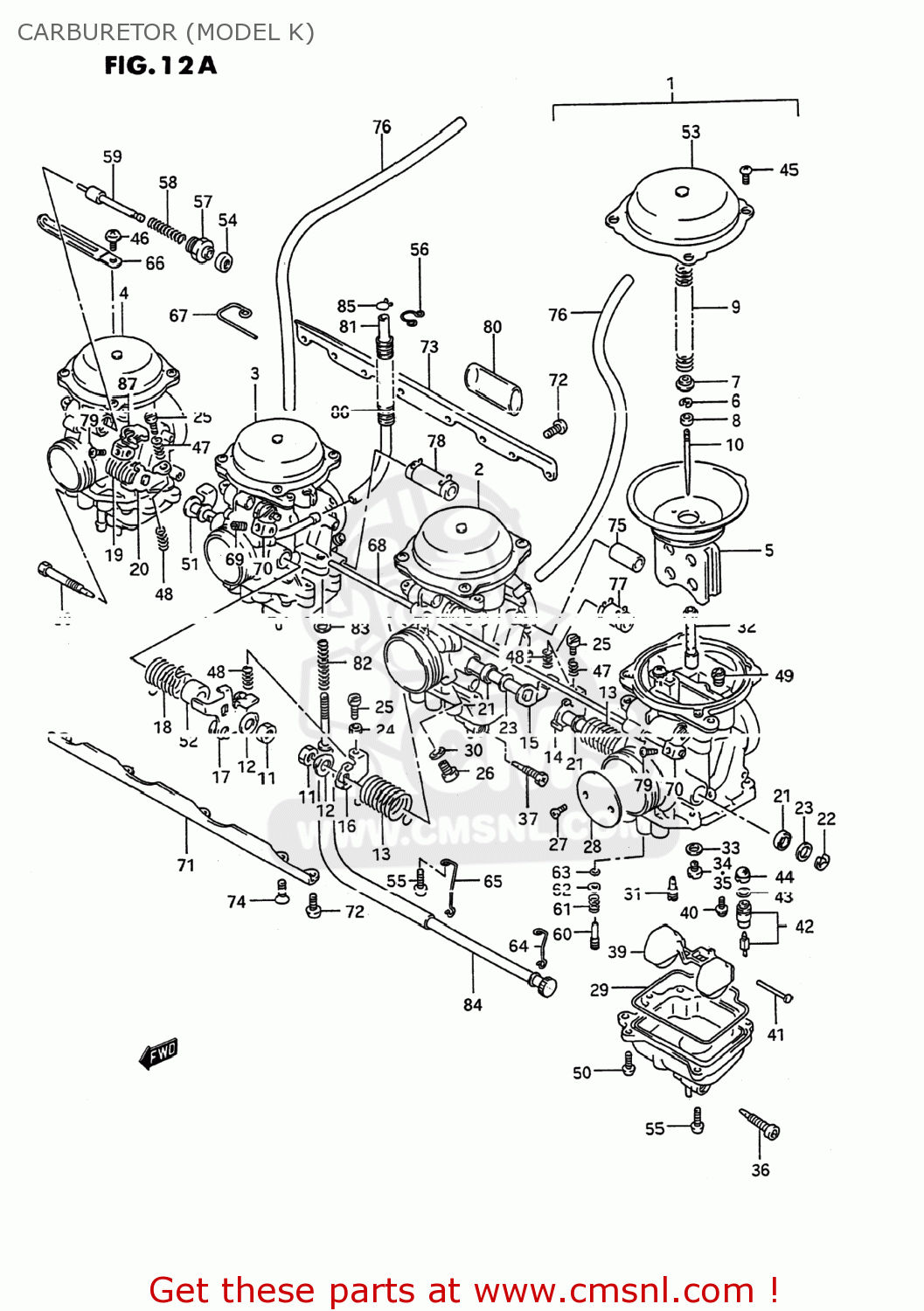

Carburetor (model k) diagram GSX600F KATANA 1988 (J) USA (E03)
CARBURETOR (MODEL K) GSX600F KATANA 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1320143C00
ref: 1
CARBURETOR ASSY,LH
€ 381.00
2
1320243C00
ref: 2
CARBURETOR ASS
€ 436.00
3
1320343C00
ref: 3
CARBURETOR ASSY,MR
€ 387.50
4
1320443C00
ref: 4
CARBURETOR ASS
€ 436.00
5
1350019C00
ref: 5
DIAPHRAGM ASSY
€ 178.00
6
1339410010
ref: 6
CLIP
€ 4.50
7
1338242A00
ref: 7
RING
€ 3.50
8
1338747010
ref: 8
RING
€ 7.50
9
1341726B00
ref: 9
SPRING
€ 6.00
10
1338319C10
ref: 10
NEEDLE,JET
€ 14.00
11
0831022086
ref: 11
08310-0008A
NUT
€ 1.50
12
1360647070
ref: 12
WASHER
€ 3.00
13
1357328A10
ref: 13
SPRING
€ 0.00
14
1355028A30
ref: 14
SHAFT ASSEMBLY
€ 0.00
15
1355028A00
ref: 15
SHAFT ASSEMBLY
€ 0.00
16
1355328A00
ref: 16
LEVER
€ 0.00
17
1355528A00
ref: 17
LEVER ASSEMBLY
€ 0.00
18
1357328A00
ref: 18
SPRING
€ 0.00
19
1357328A20
ref: 19
SPRING
€ 0.00
20
1355028A20
ref: 20
SHAFT ASSEMBLY
€ 0.00
21
1365151010
ref: 21
SEAL
€ 4.00
22
1361744080
ref: 22
E RING
€ 3.50
23
1355747070
ref: 23
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
24
1358295216
ref: 24
NUT,THROTTLE ROD
€ 6.50
25
1326752012
ref: 25
SCREW
€ 3.00
26
1360573000
ref: 26
SCREW
€ 10.50
27
1360442A00
ref: 27
13604-44080
SCREW
€ 3.50
28
1355142A30
ref: 28
VALVE,THROTTLE (130)
€ 24.00
29
1325142A00
ref: 29
O RING,FLOAT CHAMBER
€ 7.50
30
1324978100
ref: 30
WASHER
€ 4.00
31
0949240014
ref: 31
JET(40)
€ 8.50
32
0949400623
ref: 32
JET,NEEDLE (P-9)
€ 31.00
33
1333244080
ref: 33
13382-03110
WASHER,NEEDLE NOZZLE
€ 2.50
34
0949127010
ref: 34
JET,MAIN(137.5)
€ 10.50
35
0949127009
ref: 35
JET,MAIN(135)
€ 10.50
36
1324724500
ref: 36
PLUG,DRAIN
€ 12.00
37
1324738B00
ref: 37
13247-02340
PLUG
€ 5.50
38
1324719C00
ref: 38
13247-02340
SCREW,DRAIN
€ 5.50
39
1325028A00
ref: 39
FLOAT
€ 33.00
40
1360243410
ref: 40
SCREW
€ 2.50
41
1325492311
ref: 41
PIN,FLOAT
€ 2.00
42
1337044500
ref: 42
VALVE ASSY,NEEDLE
€ 40.50
43
1337444080
ref: 43
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
44
1337684110
ref: 44
13376-19F00
FILTER
€ 6.50
45
0211204085
ref: 45
02112-0408A
SCREW
€ 2.00
46
1360238A20
ref: 46
02142-0408B
SCREW
€ 1.50
47
1327128A00
ref: 47
SPRING
€ 4.00
48
1326896110
ref: 48
13268-96111
SPRING,THROTTLE SCREW
€ 4.50
49
0949332002
ref: 49
JET
€ 11.50
50
1360227A10
ref: 50
02112-04127
SCREW
€ 1.50
51
1355028A10
ref: 51
SHAFT ASSEMBLY
€ 0.00
52
1357428A00
ref: 52
RING
€ 4.50
53
1350228A00
ref: 53
13502-09F00
COVER,DIAPHRAGM
€ 35.00
54
1368231210
ref: 54
CAP,STARTER VALVE
€ 5.00
55
1360219C00
ref: 55
13602-48B10
SCREW
€ 3.00
56
1369202500
ref: 56
CLIP
€ 7.00
57
1341844080
ref: 57
GUIDE SCREW,PLUNGER
€ 8.00
58
1341743010
ref: 58
SPRING
€ 3.50
59
1341105320
ref: 59
PLUNGER ASSY
€ 18.00
60
1327947070
ref: 60
SCREW,PILOT
€ 11.50
61
1326847070
ref: 61
SPRING
€ 5.00
62
1329129900
ref: 62
WASHER
€ 2.00
63
1329529900
ref: 63
O RING,PILOT AIR SCREW
€ 4.00
64
1369219C00
ref: 64
CLIP
€ 6.00
65
1369243C00
ref: 65
CLIP
€ 0.00
66
1367105A20
ref: 66
09404-06433
CLIP
€ 3.00
67
1367148B00
ref: 67
CLIP
€ 0.00
68
1358648B00
ref: 68
SHAFT,STARTER
€ 30.00
69
1360549330
ref: 69
13605-47070
SCREW
€ 5.50
70
1342228A00
ref: 70
13422-48B10
LEVER
€ 7.50
71
1362819C00
ref: 71
PLATE
€ 21.00
72
0211205128
ref: 72
02112-05127
SCREW
€ 2.50
73
1362819C10
ref: 73
PLATE
€ 19.50
74
0912605005
ref: 74
SCREW(5X14)
€ 2.00
75
1368349160
ref: 75
09354-65113-600
HOSE,CARBURETOR
€ 26.00
76
1368422A00
ref: 76
44420-44AR0
HOSE
€ 13.00
77
1368027A00
ref: 77
13218-03D00
HOSE SET (3X5X18)
€ 6.00
78
1368028A00
ref: 78
HOSE ASSY
€ 6.00
79
1360534390
ref: 79
13605-09300
SCREW
€ 3.50
80
1368443440
ref: 80
HOSE(16X19X100)
€ 6.50
81
1368305A30
ref: 81
09352-50903-600
HOSE
€ 28.50
82
1327128A10
ref: 82
SPRING
€ 6.00
83
1343247090
ref: 83
WASHER
€ 2.50
84
1326743C00
ref: 84
ADJUSTER
€ 39.50
85
1367105A30
ref: 85
09401-08410
CLIP
€ 2.50
86
1368419C00
ref: 86
HOSE
€ 8.00
87
1342248B00
ref: 87
LEVER
€ 6.50
