AIR CLEANER (MODEL L/M/N/P/R/S/T)

GSX600F KATANA 1989 (K) USA (E03)

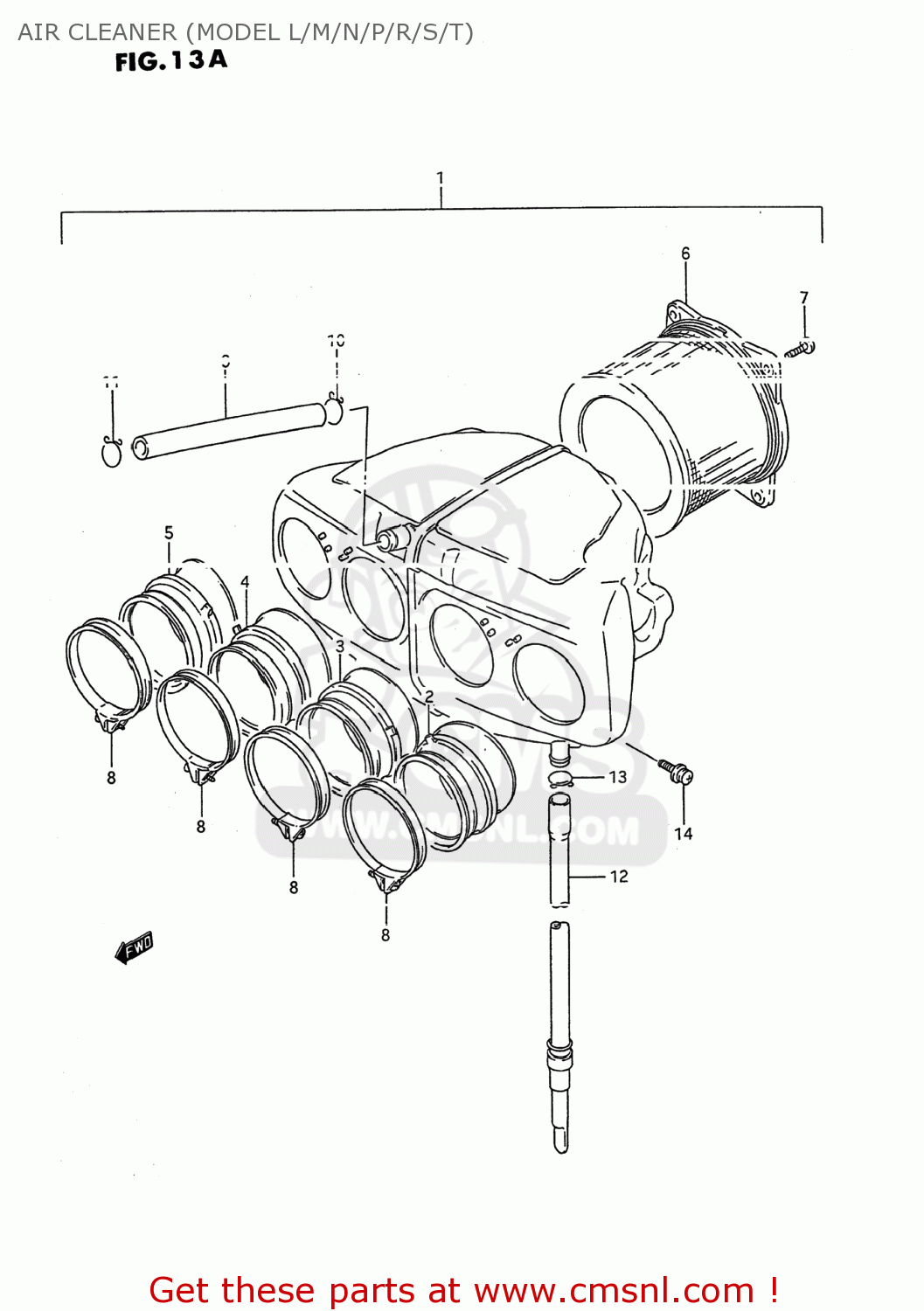

Air cleaner (model l/m/n/p/r/s/t) diagram GSX600F KATANA 1989 (K) USA (E03)

AIR CLEANER (MODEL L/M/N/P/R/S/T) GSX600F KATANA 1989 (K) USA (E03)

AIR CLEANER (MODEL L/M/N/P/R/S/T) GSX600F KATANA 1989 (K) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1370020C01
ref: 1-1
13700-20C03

CLEANER ASSEMBLY,AIR

€ 233.50

1-2

1370020C23
ref: 1-2

CLEANER ASSY, AIR

€ 174.50

2

1388120C01
ref: 2

TUBE,OUTLET,L

€ 24.50

3

1388220C01
ref: 3

TUBE,OUTLET ML

€ 28.50

4

1388320C01
ref: 4

TUBE,OUTLET MR

€ 22.50

5

1388420C01
ref: 5

TUBE,OUTLET,R

€ 24.50

6

1378020C00
ref: 6

FILTER ASSY

€ 43.50

7-1

0214205124
ref: 7-1
02142-0512A

SCREW, FRONT & REAR

€ 1.50

7-2

0214205123
ref: 7-2
02142-0512A

SCREW 5X12

€ 1.50

8

0940266208
ref: 8

CLAMP

€ 6.50

9

1385319C00
ref: 9

TUBE,BREATHER

€ 14.00

10

0940116401
ref: 10

CLIP

€ 3.00

11

0940114301
ref: 11

CLIP

€ 2.00

12

1387011458
ref: 12

TUBE,DRAIN

€ 13.50

13

0940113409
ref: 13

CLIP

€ 2.50

14-1

0211276168
ref: 14-1
02112-7616A

SCREW

€ 2.00

14-2

0211276163
ref: 14-2
02112-7616A

SCREW

€ 2.00
