SPEEDOMETER (MODEL K/L/M/N/P/S/T)

GSX600F KATANA 1989 (K) USA (E03)

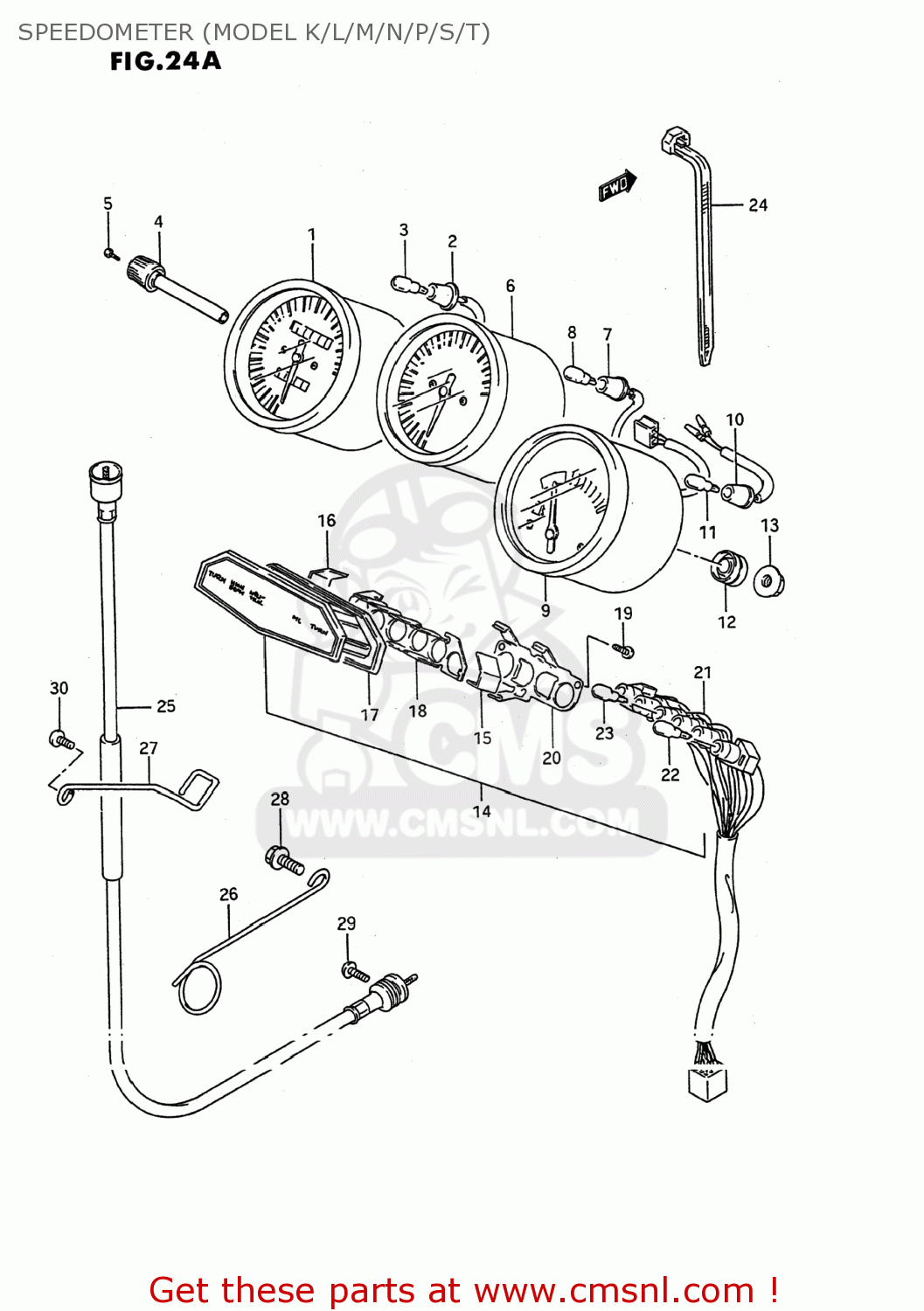

Speedometer (model k/l/m/n/p/s/t) diagram GSX600F KATANA 1989 (K) USA (E03)

SPEEDOMETER (MODEL K/L/M/N/P/S/T) GSX600F KATANA 1989 (K) USA (E03)
SPEEDOMETER (MODEL K/L/M/N/P/S/T) GSX600F KATANA 1989 (K) USA (E03)
SPEEDOMETER (MODEL K/L/M/N/P/S/T) GSX600F KATANA 1989 (K) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3410019C30
ref: 1
SPEEDOMETER ASSY
3410019C30
€ 406.50
2
3417119C00
ref: 2
SOCKET
€ 30.00
3
0947112085
ref: 3
BULB(12V3W,WB371,T7)
0947112085
€ 3.00
4
3412419C00
ref: 4
KNOB,TRIP
3412419C00
€ 11.00
5-1
3418414A00
ref: 5-1
34184-12D00
SCREW,TRIP KNOB
3418414A00
€ 2.00
5-2
3418412D00
ref: 5-2
SCREW,TRIP KNOB
3418412D00
€ 2.00
6
3420019C11
ref: 6
TACHOMETER ASSY
€ 512.50
7
3417119C10
ref: 7
SOCKET
€ 22.00
8
0947112085
ref: 8
BULB(12V3W,WB371,T7)
0947112085
€ 3.00
9
3430019C10
ref: 9
34300-19C20
METER ASSEMBLY,FUEL
€ 150.50
10
3417119C10
ref: 10
SOCKET
€ 22.00
11
0947112085
ref: 11
BULB(12V3W,WB371,T7)
0947112085
€ 3.00
12
3418930921
ref: 12
CUSHION
3418930921
€ 3.00
13-1
3418519C00
ref: 13-1
09159-06076
NUT
€ 3.00
13-2
0915906076
ref: 13-2
NUT
0915906076
€ 3.00
14
3638019C10
ref: 14
36380-19C11
BOX ASSY
3638019C10
€ 133.00
15
3638327A00
ref: 15
PLATE,TURN,R
3638327A00
€ 14.50
16
3638427A00
ref: 16
PLATE,TURN,L
3638427A00
€ 9.50
17
3419619C00
ref: 17
CUSHION
3419619C00
€ 19.00
18
3638227A00
ref: 18
PLATE,PILOT LAMP
3638227A00
€ 18.50
19-1
3638727A00
ref: 19-1
36457-45100
SCREW
€ 2.00
19-2
3645745100
ref: 19-2
SCREW
3645745100
€ 2.00
20
3419719C00
ref: 20
LOCK PLATE
€ 13.00
21
3417119C20
ref: 21
SOCKET
€ 85.00
22
0947112100
ref: 22
BULB(12V1.7W,WB372,T7)
0947112100
€ 2.00
23
0947112085
ref: 23
BULB(12V3W,WB371,T7)
0947112085
€ 3.00
24
0940714403
ref: 24
CLAMP(L:125)
0940714403
€ 2.50
25
3491019C01
ref: 25
CABLE ASSY,SPEEDOMETER
3491019C01
€ 27.50
26
3493845100
ref: 26
CLAMP,SPEEDOMETER CABLE
3493845100
€ 14.50
27
3493834C01
ref: 27
34938-34C0V
CLAMP,SPEEDOMETER CABLE
€ 4.50
28-1
0155006107
ref: 28-1
BOLT
0155006107
€ 2.50
28-2
0155006103
ref: 28-2
01550-0610A
BOLT
0155006103
€ 2.50
28-3
0155006163
ref: 28-3
01550-0616A
BOLT
0155006163
€ 2.50
29-1
0211205164
ref: 29-1
SCREW
0211205164
€ 2.00
29-2
0211205163
ref: 29-2
02112-0516A
SCREW
0211205163
€ 2.00
30-1
0214205124
ref: 30-1
02142-0512A
SCREW, FRONT & REAR
€ 1.50
30-2
0214205123
ref: 30-2
02142-0512A
SCREW 5X12
0214205123
€ 1.50
