TRANSMISSION
GSX600F KATANA 1989 (K) USA (E03)

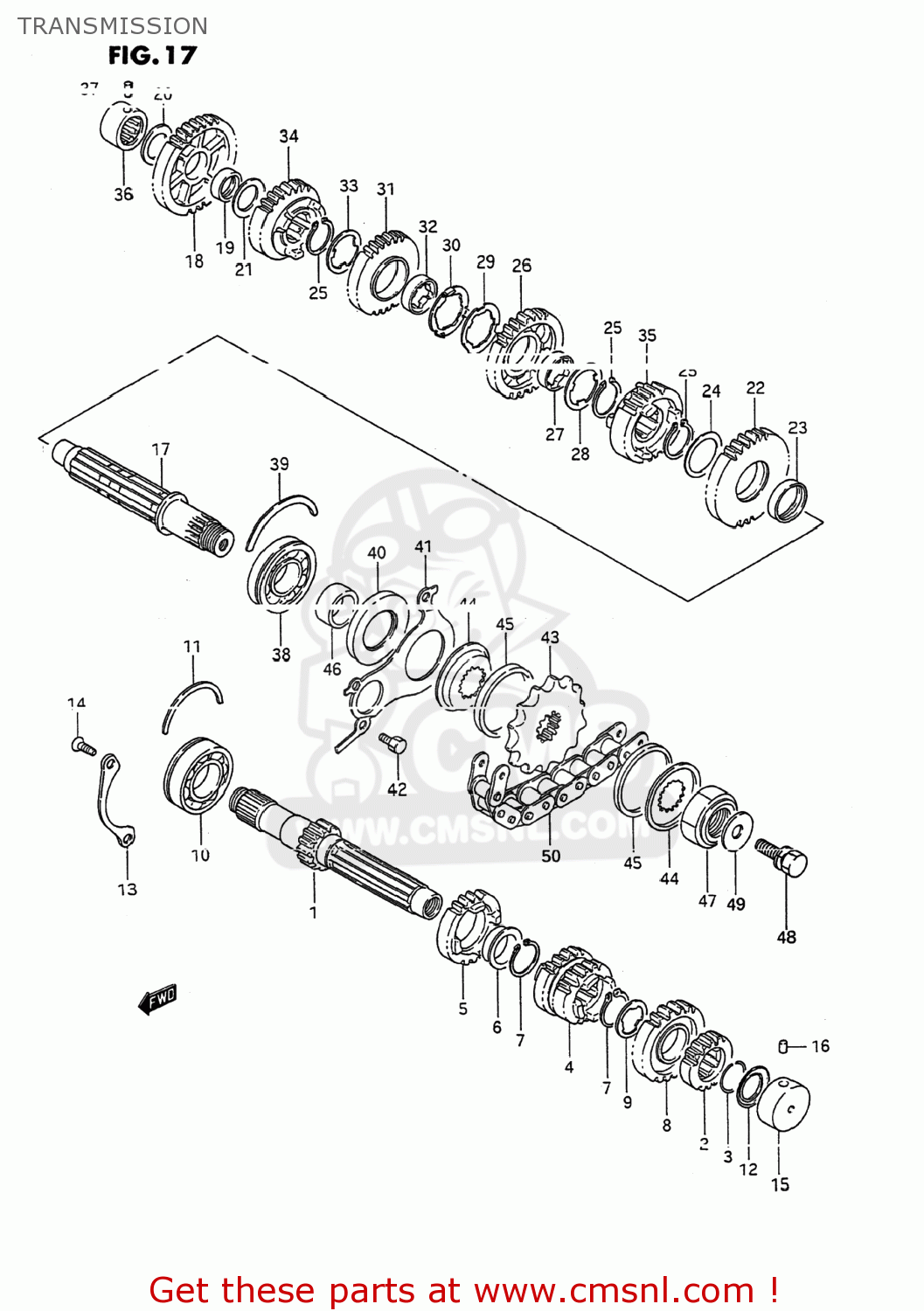

Transmission diagram GSX600F KATANA 1989 (K) USA (E03)
TRANSMISSION GSX600F KATANA 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2412119C01
ref: 1-1
SHAFT,COUNTER(NT:12)
€ 193.50
1-2
2412120C00
ref: 1-2
24121-20C10
SHAFT,COUNTER
€ 196.00
1-3
2412120C10
ref: 1-3
SHAFT,COUNTER(NT:12)
€ 196.00
2-1
2422127A01
ref: 2-1
GEAR,2ND DRIVE(NT:16)
€ 93.00
2-2
2422127A10
ref: 2-2
24221-27A01
GEAR,SECOND DRIVE
€ 93.00
2-3
2422127A01
ref: 2-3
GEAR,2ND DRIVE(NT:16)
€ 93.00
3-1
0938025012
ref: 3-1
CIRCLIP
€ 2.00
3-2
0938025013
ref: 3-2
CIRCLIP
€ 3.00
4-1
2423127A00
ref: 4-1
GEAR,3RD & 4TH DRIVE(NT:17/20)
€ 162.00
4-2
2423127A10
ref: 4-2
24231-27A00
GEAR,THIRD & FOURTH DRIVE,N
€ 162.00
4-3
2423127A00
ref: 4-3
GEAR,3RD & 4TH DRIVE(NT:17/20)
€ 162.00
5
2425127A01
ref: 5
GEAR,5TH DRIVE(NT:22)
€ 91.00
6
0930125001
ref: 6
24322-19F00
BUSHING
€ 12.50
7
0938025003
ref: 7
RING,SNAP
€ 3.00
8-1
2426127A00
ref: 8-1
24261-17C02
GEAR,SIXTH DRIVE
€ 119.50
8-2
2426117C01
ref: 8-2
24261-17C02
GEAR,SIXTH DRIVE (NT:21)
€ 119.50
9
0916725012
ref: 9
WASHER,LOCK
€ 3.50
10-1
0926225051
ref: 10-1
09262-25105
BEARING(25X62X17)
€ 59.50
10-2
0926225115
ref: 10-2
BEARING(25X62X17)
€ 54.00
11-1
0939062006
ref: 11-1
09390-62012
C-RING
€ 5.00
11-2
0939062012
ref: 11-2
C RING
€ 5.00
12
0928520006
ref: 12
SEAL,OIL(20X31.2X2.7)
€ 7.00
13
2474127A00
ref: 13
RETAINER,CNTR SHAFT BEARING
€ 7.00
14-1
0212206167
ref: 14-1
SCREW
€ 2.00
14-2
0212206163
ref: 14-2
02122-0616A
SCREW ,6X16
€ 2.00
15
0926320049
ref: 15
BEARING(20X34X17.5)
€ 58.00
16
0422107129
ref: 16
PIN
€ 1.50
17-1
2413127A02
ref: 17-1
SHAFT,DRIVE
€ 188.50
17-2
2413120C00
ref: 17-2
SHAFT,DRIVE
€ 177.50
18-1
2431119C01
ref: 18-1
24311-19C10
GEAR,FIRST DRIVEN
€ 101.50
18-2
2431119C10
ref: 18-2
GEAR,1ST DRIVEN(NT:37)
€ 101.50
19
0930022008
ref: 19
BUSH(22X26X9)
€ 10.50
20
0821120341
ref: 20
WASHER
€ 2.00
21
0821122341
ref: 21
WASHER
€ 3.00
22-1
2432127A02
ref: 22-1
GEAR,2ND DRIVEN(NT:33)
€ 143.50
22-2
2432120C10
ref: 22-2
24321-20C00
GEAR,SECOND DRIVEN
€ 60.00
22-3
2432120C00
ref: 22-3
GEAR,2ND DRIVEN(NT:33)
€ 60.00
23-1
0930028001
ref: 23-1
BUSH(28X32X8)
€ 11.50
23-2
0930028003
ref: 23-2
BUSH(28X32X9.5)
€ 19.50
24
0821128381
ref: 24
09181-28195
WASHER, THRUST
€ 3.50
25
0833131286
ref: 25
08331-3128A
CIRCLIP
€ 2.50
26-1
2433127A00
ref: 26-1
GEAR,3RD DRIVEN(NT:28)
€ 129.00
26-2
2433117D00
ref: 26-2
GEAR,3RD DRIVEN
€ 142.00
26-3
2433127A10
ref: 26-3
24331-27A00
GEAR,THIRD DRIVEN
€ 129.00
26-4
2433127A00
ref: 26-4
GEAR,3RD DRIVEN(NT:28)
€ 129.00
27
2433227A00
ref: 27
BUSH
€ 13.50
28
0916728001
ref: 28
WASHER,LOCK
€ 3.00
29
0916728002
ref: 29
WASHER,LOCK
€ 3.00
30
0916928001
ref: 30
WASHER
€ 3.00
31-1
2434127A00
ref: 31-1
24341-27A01
GEAR,FOURTH DRIVEN
€ 80.00
31-2
2434127A01
ref: 31-2
GEAR,4TH DRIVEN(NT:28)
€ 80.00
32
2433227A00
ref: 32
BUSH
€ 13.50
33
0916728001
ref: 33
WASHER,LOCK
€ 3.00
34
2435127A00
ref: 34
GEAR,5TH DRIVEN(NT:27)
€ 117.00
35-1
2436127A02
ref: 35-1
GEAR,6TH DRIVEN
€ 114.00
35-2
2436127A03
ref: 35-2
GEAR,6TH DRIVEN(NT:23)
€ 110.50
35-3
2436120C00
ref: 35-3
24361-20C01
GEAR,SIXTH DRIVEN (NT:23)
€ 124.00
36
0926320040
ref: 36
BEARING(20X34X20)
€ 42.50
37
0422107209
ref: 37
PIN
€ 1.50
38-1
0926225105
ref: 38-1
BEARING(25X62X17)
€ 59.50
38-2
0926225115
ref: 38-2
BEARING(25X62X17)
€ 54.00
39-1
0939062006
ref: 39-1
09390-62012
C-RING
€ 5.00
39-2
0939062012
ref: 39-2
C RING
€ 5.00
40
0928334005
ref: 40
SEAL,OIL(34X62X6)
€ 14.50
41
2475127A01
ref: 41
RETAINER,DRIVE SHAFT OIL SEAL
€ 8.00
42-1
0110706107
ref: 42-1
01500-06107
BOLT
€ 2.00
42-2
0150006123
ref: 42-2
01500-0612A
BOLT
€ 2.00
43
2751127A11
ref: 43
27510-21E00
SPROCKET,ENGINE
€ 45.00
44
2751619C00
ref: 44
HOLDER,SPROCKET DAMPER
€ 3.50
45
2751731300
ref: 45
DAMPER,SPROCKET
€ 14.00
46
0918025090
ref: 46
SPACER(25X34X16.1)
€ 12.00
47
0915920004
ref: 47
NUT
€ 12.00
48-1
0114706168
ref: 48-1
01570-06167
BOLT
€ 2.50
48-2
0157006163
ref: 48-2
01570-0616A
BOLT
€ 2.50
49
0821206222
ref: 49
WASHER
€ 1.50
50
2760019C00112
ref: 50
CHAIN,DRIVE(112LE)
€ 197.00
