CAM SHAFT - VALVE (MODEL J/K/L/M)

GSX600F KATANA 1992 (N) USA (E03)

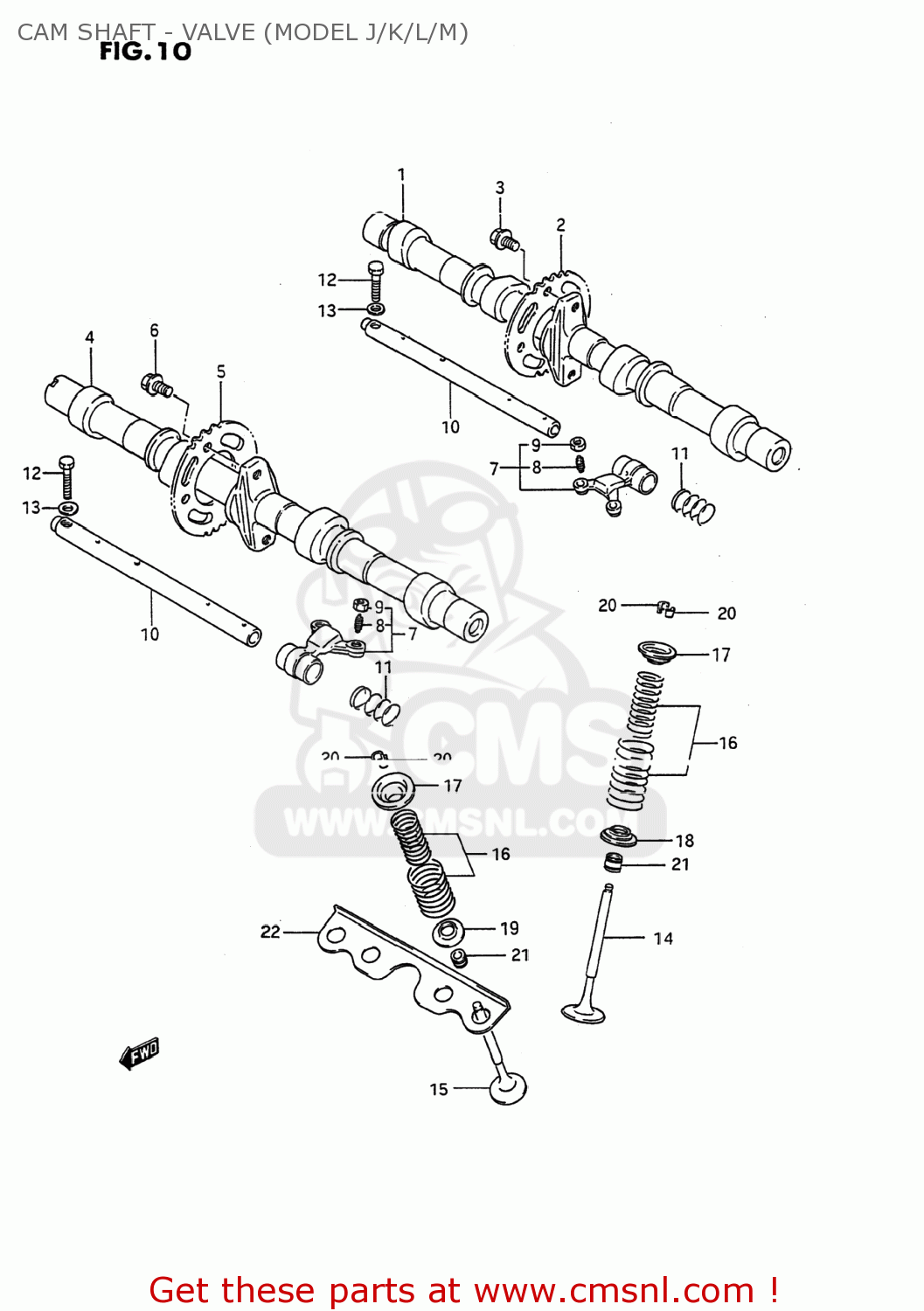

Cam shaft - valve (model j/k/l/m) diagram GSX600F KATANA 1992 (N) USA (E03)

CAM SHAFT - VALVE (MODEL J/K/L/M) GSX600F KATANA 1992 (N) USA (E03)

CAM SHAFT - VALVE (MODEL J/K/L/M) GSX600F KATANA 1992 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1271119C70
ref: 1-1

CAMSHAFT,INTAKE

€ 235.50

1-1

1271119C70
ref: 1-1

CAMSHAFT,INTAKE

€ 235.50

1-2

1271106B90
ref: 1-2

CAMSHAFT,INTAKE

€ 549.50

1-2

1271106B90
ref: 1-2

CAMSHAFT,INTAKE

€ 549.50

1-3

1271119C90
ref: 1-3

CAM SHAFT,INTAKE

€ 216.00

2

1274127A00
ref: 2

SPROCKET,CAMSHAFT

€ 41.00

3

0910307001
ref: 3

BOLT(7X11)

€ 2.00

4

1272128A10
ref: 4

CAMSHAFT,EXHAUST

€ 297.50

5

1274127A00
ref: 5

SPROCKET,CAMSHAFT

€ 41.00

6

0910307001
ref: 6

BOLT(7X11)

€ 2.00

7

1284019C00
ref: 7

ARM,VALVE ROCKER

€ 74.50

8

1284249210
ref: 8
12842-49201

SCREW,TAPPET ADJUSTING

€ 5.50

9

1284304A00
ref: 9
12843-27A00

NUT,ADJUSTING

€ 3.00

10

1286127A00
ref: 10

SHAFT,VALVE ROCKER ARM

€ 31.00

11

0944013014
ref: 11

SPRING

€ 2.50

12

0110706306
ref: 12
01500-0630A

BOLT

€ 2.50

13

0832221066
ref: 13
08322-0106B

WASHER, LOWER

€ 2.00

14

1291119C00
ref: 14

VALVE,INTAKE

€ 37.00

15

1291219C00
ref: 15

VALVE,EXHAUST

€ 78.00

16

1292027A01
ref: 16

SPRING SET,VALVE

€ 15.50

17

1293127A01
ref: 17

RETAINER,VALVE SPRING

€ 5.50

18-1

1293327A00
ref: 18-1
12933-81400

SEAT,VALVE SPRING

€ 4.00

18-2

1293381400
ref: 18-2

SEAT,VALVE SPRING

€ 4.00

19

1293427A00
ref: 19
12934-27A01

SEAT,VALVE SPRING

€ 7.00

20

1293227A00
ref: 20

COTTER VALVE

€ 2.50

21

0928905011
ref: 21

SEAL,OIL(5X10X9.7)

€ 6.00

22

1113719C00
ref: 22
11137-19C01

PLATE,VALVE SEAT

€ 7.00
