TAIL LAMP - LICENSE LAMP

GSX600F KATANA 1992 (N) USA (E03)

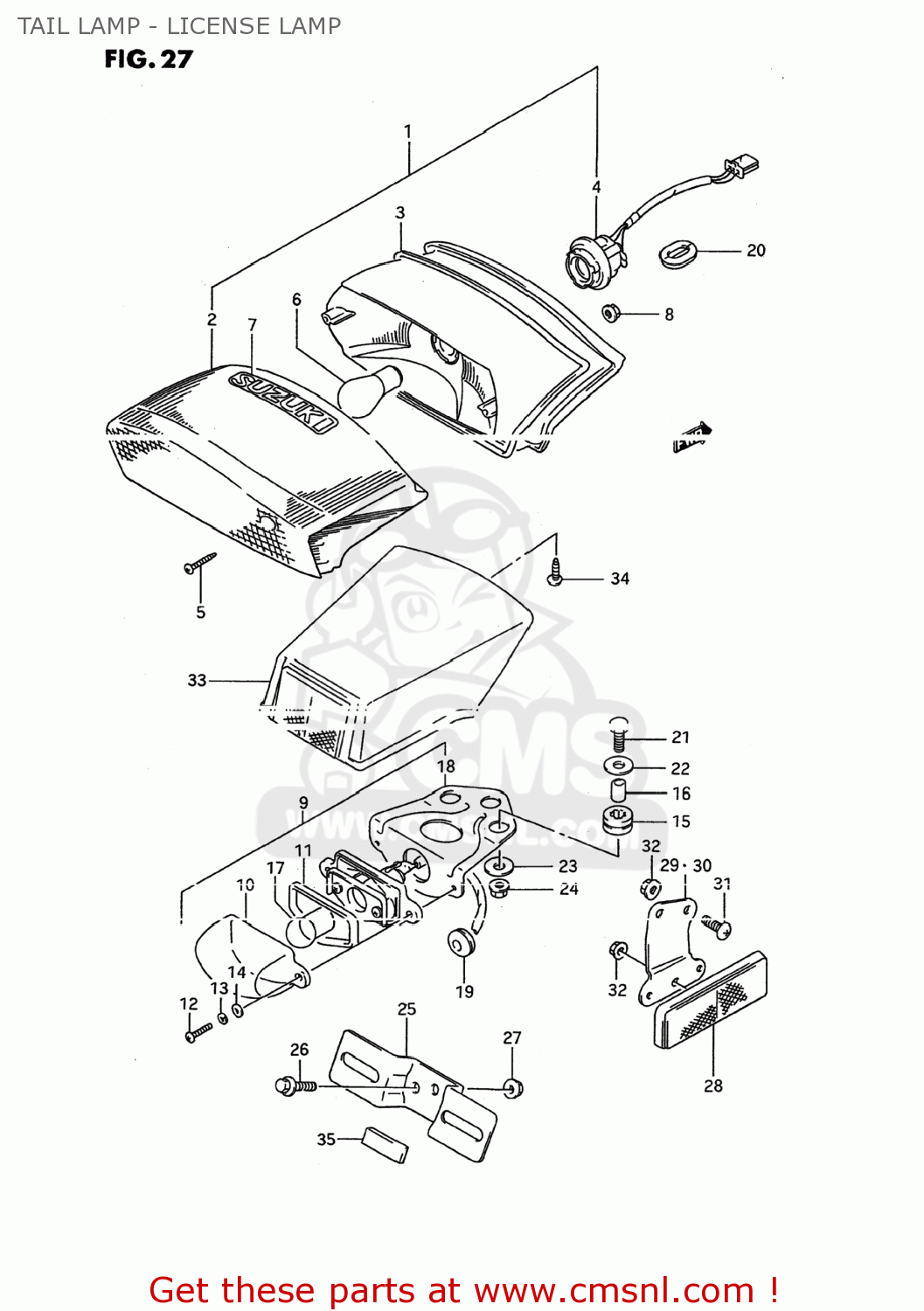

Tail lamp - license lamp diagram GSX600F KATANA 1992 (N) USA (E03)

TAIL LAMP - LICENSE LAMP GSX600F KATANA 1992 (N) USA (E03)
TAIL LAMP - LICENSE LAMP GSX600F KATANA 1992 (N) USA (E03)
TAIL LAMP - LICENSE LAMP GSX600F KATANA 1992 (N) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
3571019C0022R
ref: 1-1
35710-19C30
LAMP ASSEMBLY,REAR COMBINATION
€ 3.50
1-2
3571019C00764
ref: 1-2
35710-19C30
LAMP ASSEMBLY,REAR COMBINATION
€ 3.50
1-3
3571019C00742
ref: 1-3
35710-19C30
LAMP ASSEMBLY,REAR COMBINATION
€ 3.50
1-4
3571019C000JW
ref: 1-4
35710-19C30
LAMP ASSEMBLY,REAR COMBINATION
€ 3.50
1-5
3571019C30
ref: 1-5
LAMP ASSY,RR COMBINATION
€ 3.50
2
3571219C00
ref: 2
LENS
3571219C00
€ 57.50
3
3571319C00
ref: 3
GASKET (NAS)
3571319C00
€ 7.00
4
3571819C00
ref: 4
SOCKET
3571819C00
€ 33.00
5
0321104203
ref: 5
03211-04207
SCREW
€ 1.50
6
0947112128
ref: 6
BULB(12V21/5W,BF141-49642A)
0947112128
€ 6.00
7-1
6816516B0022R
ref: 7-1
68165-16B00-0JW
EMBLEM
€ 6.00
7-2
6816516B00764
ref: 7-2
EMBLEM,SUZUKI (GOLD)
€ 0.00
7-3
6816516B00742
ref: 7-3
68165-16B00-13L
EMBLEM
€ 5.50
7-4
6816516B000JW
ref: 7-4
EMBLEM,SUZUKI
6816516B000JW
€ 6.00
8
0831620063
ref: 8
08316-2006A
NUT
0831620063
€ 2.00
9
3591019C00
ref: 9
LAMP ASSY,LICENSE
€ 76.50
10
3591200A10
ref: 10
LENS,LICENSE LAMP
3591200A10
€ 16.00
11
3591304A00
ref: 11
GASKET,LICESE LAMP (NAS)
3591304A00
€ 4.00
12-1
0211204167
ref: 12-1
02112-0416A
SCREW
0211204167
€ 1.00
12-2
0211204163
ref: 12-2
02112-0416A
SCREW 4X16
0211204163
€ 1.00
13
0832101043
ref: 13
08321-0104A
WASHER,LOCK
0832101043
€ 2.00
14
0832201047
ref: 14
WASHER
0832201047
€ 2.00
15
3576535300
ref: 15
CUSHION,RR COMBINATION
3576535300
€ 3.00
16
3576619C00
ref: 16
SPACER
3576619C00
€ 2.00
17
0947112058
ref: 17
BULB
0947112058
€ 4.00
18
3591619C00
ref: 18
BRACKET
3591619C00
€ 13.00
19
0930807009
ref: 19
GROMMET
€ 2.00
20
0930812007
ref: 20
GROMMET
€ 3.50
21-1
0150006203
ref: 21-1
01500-0620A
BOLT
0150006203
€ 2.00
21-2
0911606056
ref: 21-2
09116-06115
BOLT
0911606056
€ 2.00
21-3
0911606115
ref: 21-3
BOLT(6X20)
0911606115
€ 2.00
22
0916006027
ref: 22
09160-06077
WASHER (6.5X20X1.2)
0916006027
€ 2.00
23-1
0916006060
ref: 23-1
09160-06077
WASHER
0916006060
€ 2.00
23-2
0916006077
ref: 23-2
WASHER(6.5X20X1.2)
0916006077
€ 2.00
24
0831620063
ref: 24
08316-2006A
NUT
0831620063
€ 2.00
25
3592700A30
ref: 25
BRACKET,LICENSE PLATE
€ 8.00
26-1
0151706254
ref: 26-1
01550-0625A
BOLT
€ 2.50
26-2
0214206164
ref: 26-2
02142-0616A
SCREW
0214206164
€ 2.50
26-3
0214206163
ref: 26-3
02142-0616A
SCREW
0214206163
€ 2.50
26-4
0211206163
ref: 26-4
02112-0616A
SCREW 6X16
0211206163
€ 2.00
27-1
0831620063
ref: 27-1
08316-2006A
NUT
0831620063
€ 2.00
27-2
0831000063
ref: 27-2
08310-0006A
NUT 6MM
0831000063
€ 2.00
28-1
3597000A21
ref: 28-1
35970-00A10
REFLECTOR ASSEMBLY,REAR
3597000A21
€ 22.00
28-2
3597024D60
ref: 28-2
REFLECTOR ASSY,RR
3597024D60
€ 19.50
29-1
3597519C00
ref: 29-1
35975-20C01
BRACKET
€ 3.00
29-2
3597519C01
ref: 29-2
35975-20C01
BRACKET
€ 3.00
29-3
3597520C01
ref: 29-3
BRACKET,RR SIDE RR,R
3597520C01
€ 3.00
30-1
3597619C00
ref: 30-1
35976-20C01
BRACKET
€ 3.00
30-2
3597619C01
ref: 30-2
35976-20C01
BRACKET
€ 3.00
30-3
3597620C01
ref: 30-3
BRACKET,RR SIDE RR,L
3597620C01
€ 3.00
31-1
0214205124
ref: 31-1
02142-0512A
SCREW, FRONT & REAR
€ 1.50
31-2
0214205123
ref: 31-2
02142-0512A
SCREW 5X12
0214205123
€ 1.50
32-1
0831626055
ref: 32-1
08316-2005A
NUT
0831626055
€ 2.00
32-2
0831000053
ref: 32-2
08310-0005A
NUT
€ 2.50
33
3591719C00
ref: 33
COVER,LICENSE LAMP
3591719C00
€ 26.00
34
0354105163
ref: 34
03541-0516A
SCREW
0354105163
€ 1.50
35
3599505C00
ref: 35
33652-49000
PROTECTOR,LICENSE LAMP
3599505C00
€ 2.00
