CLUTCH (MODEL J/K/L/M)
GSX600F KATANA 1992 (N) USA (E03)

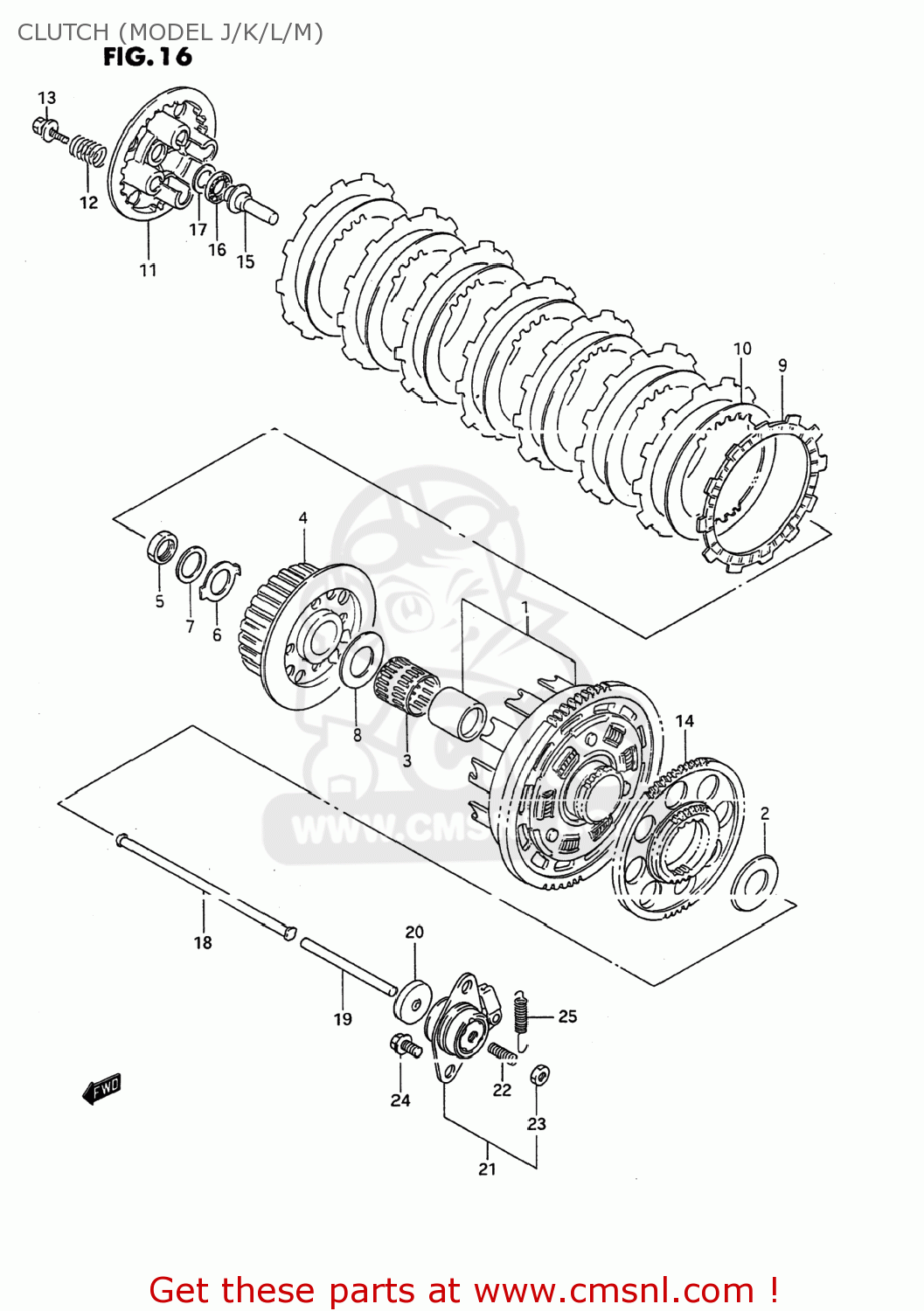

Clutch (model j/k/l/m) diagram GSX600F KATANA 1992 (N) USA (E03)
CLUTCH (MODEL J/K/L/M) GSX600F KATANA 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120019812
ref: 1-1
21200-19813
GEAR ASSEMBLY,PRIMARY DRIVE
€ 236.50
1-2
2120019813
ref: 1-2
GEAR ASSEMBLY,PRIMARY DRIVE
€ 236.50
2
0916025067
ref: 2
WASHER(25X54X2.5)
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
€ 36.50
4
2141027A02
ref: 4
HUB,CLUTCH SLEEVE
€ 134.50
5
0914022008
ref: 5
NUT
€ 4.50
6
0916922005
ref: 6
WASHER
€ 3.00
7
0916422006
ref: 7
09164-22007
WASHER
€ 5.00
8
0916025056
ref: 8
WASHER(25X50X2.5)
€ 9.50
9
2144137400
ref: 9
PLATE,CLUTCH DRIVE (NAS)
€ 20.50
10
2145105A00
ref: 10
PLATE,CLUTCH DRIVEN (NAS)
€ 9.00
11
2146227A00
ref: 11
DISC,CLUTCH PRESSURE
€ 37.00
12
0944020016
ref: 12
SPRING
€ 5.00
13
0911606016
ref: 13
09116-06168
BOLT
€ 2.50
14
2272119C01
ref: 14
22721-17D02
GEAR,GENERATOR DRIVE
€ 140.00
14
2272119C01
ref: 14
22721-17D02
GEAR,GENERATOR DRIVE
€ 140.00
15
2312127A00
ref: 15
PIECE,CLUTCH PUSH
€ 21.50
16
0926315003
ref: 16
BEARING(15X28X2)
€ 7.00
17
0916015015
ref: 17
09160-15045
WASHER
€ 4.00
18
2311019C00
ref: 18
23110-20C00
ROD,CLUTCH PUSH
€ 23.00
19
2311131301
ref: 19
ROD,CLUTCH PUSH,L
€ 14.50
20
0928506015
ref: 20
SEAL,OIL(6X34X5.5)
€ 8.50
21
2320031300
ref: 21
SCREW ASSY,CLUTCH RELEASE
€ 104.50
22
0913406010
ref: 22
SCREW(6X25)
€ 3.00
23
0831022067
ref: 23
08310-00067
NUT 6MM
€ 2.50
24
0155006167
ref: 24
BOLT
€ 1.50
25
0944307038
ref: 25
SPRING
€ 4.00
