FRAME COVER (MODEL K3)

GSX600F KATANA 2000 (Y) USA (E03)

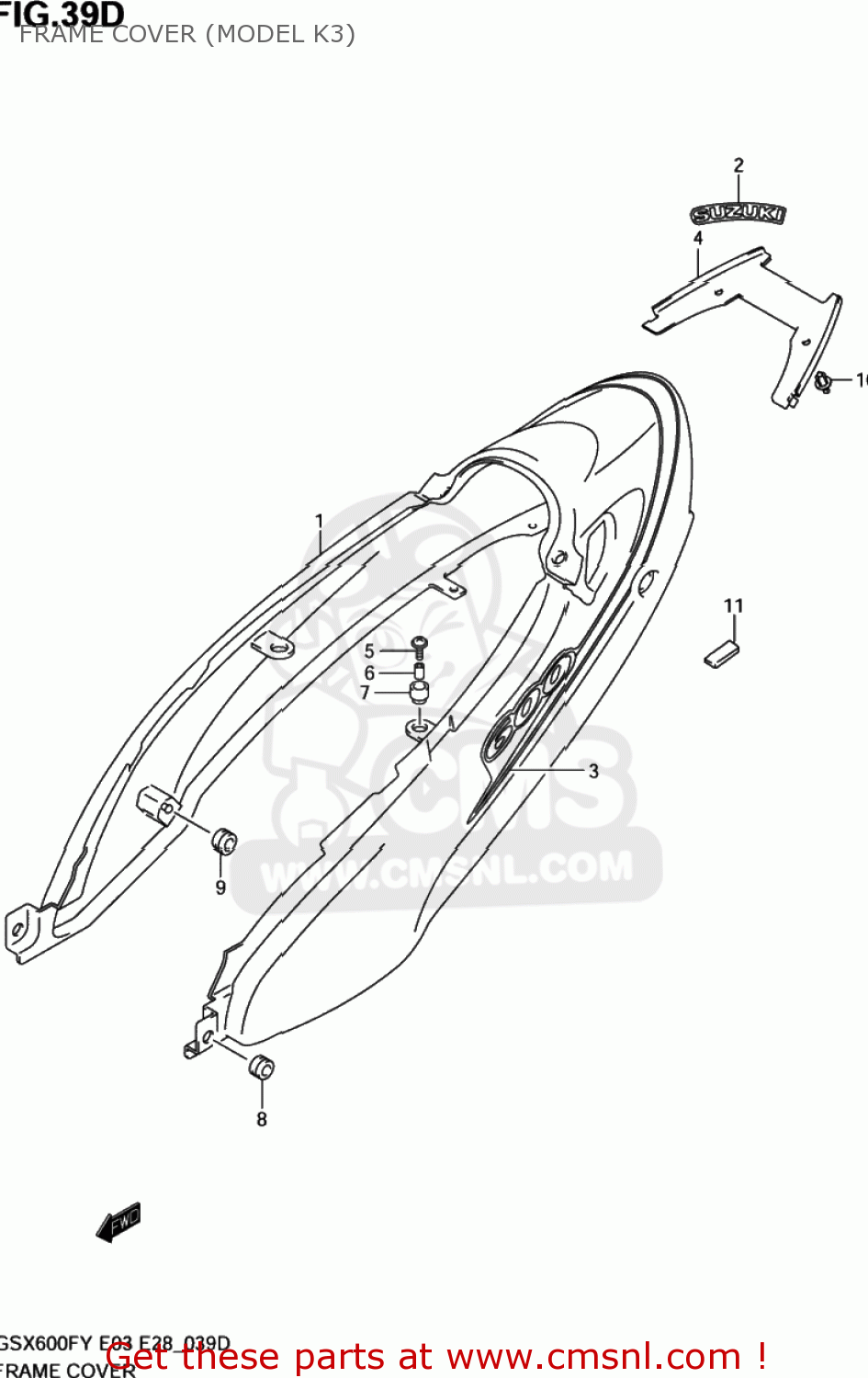

Frame cover (model k3) diagram GSX600F KATANA 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711008F7033J
ref: 1-1

COVER,FRAME(BLACK)

€ 208.00

1-2

4711008F701NX
ref: 1-2

COVER,FRAME(BLACK)

€ 246.50

2-1

6813139F001ZY
ref: 2-1

EMBLEM,SUZUKI

€ 6.50

2-2

6813139F001ZZ
ref: 2-2

EMBLEM,SUZUKI

€ 6.50

3-1

6813508F70LR3
ref: 3-1

TAPE,FRAME COVER

€ 77.50

3-2

6813508F70LR4
ref: 3-2

TAPE,FRAME COVER

€ 77.50

4732108FA0
ref: 4

COVER,FRAME LWR

€ 9.50

0913606105
ref: 5

SCREW(6X20)

€ 2.00

0918006286
ref: 6

SPACER(6.5X10X9.4)

€ 2.50

0932010045
ref: 7

CUSHION

€ 3.50

0932008028
ref: 8

CUSHION

€ 2.50

0932008018
ref: 9

CUSHION

€ 4.00

09409083085ES
ref: 10

CLIP(BLACK)

€ 2.00

4489424A00
ref: 11

CUSHION

€ 1.50
