UNDER COWLING
GSX600F KATANA 2000 (Y) USA (E03)

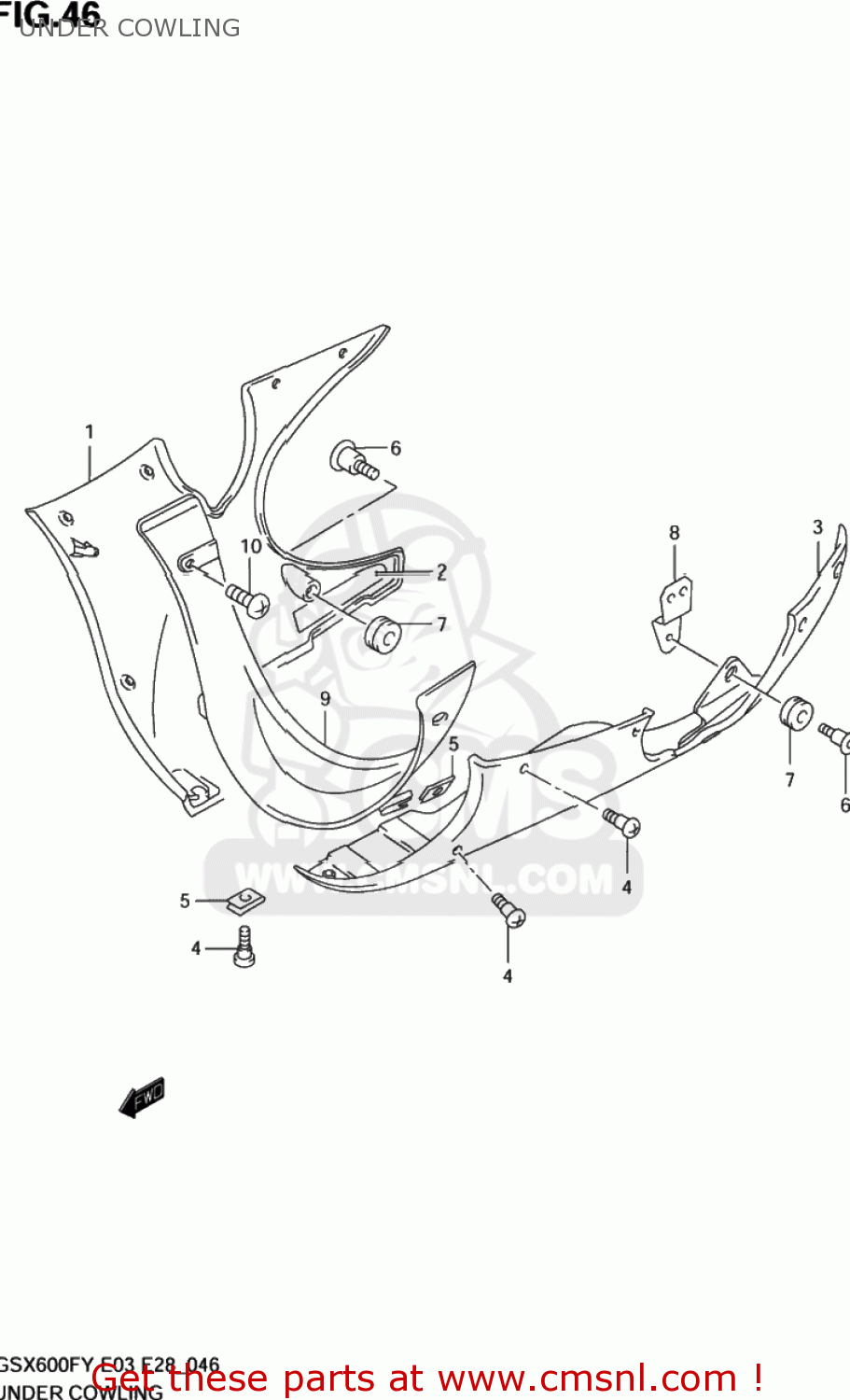

Under cowling diagram GSX600F KATANA 2000 (Y) USA (E03)
UNDER COWLING GSX600F KATANA 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
9447008F00Y4P
ref: 1-1
COWLING,UNDER,R(GRAY)
€ 737.50
1-2
9447008F00Y7L
ref: 1-2
COWLING,UNDER,R(BLACK)
€ 148.50
1-3
9447008F00YD8
ref: 1-3
COWLING,UNDER,R(SILVER)
€ 239.00
1-4
9447008F00YC2
ref: 1-4
COWLING,UNDER,R(BLUE)
€ 148.50
1-5
9447008F00YU9
ref: 1-5
COWLING,UNDER,R(YELLOW)
€ 148.50
2
9447208F00
ref: 2
SHIELD,COWLING UNDER,R NO.1
€ 9.00
3-1
9448108F00Y4P
ref: 3-1
COWLING,UNDER,L
€ 168.50
3-2
9448108F00Y7L
ref: 3-2
COWLING,UNDER,L
€ 168.50
3-3
9448108F00YD8
ref: 3-3
COWLING,UNDER,L(SILVER)
€ 175.00
3-4
9448108F00YC2
ref: 3-4
COWLING,UNDER,L(BLUE)
€ 168.50
3-5
9448108F00YU9
ref: 3-5
COWLING,UNDER,L
€ 135.00
4
0913905054
ref: 4
SCREW(5X16)
€ 6.00
5-1
9448432B00
ref: 5-1
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
5-2
9448424F00
ref: 5-2
NUT,COWL
€ 4.00
6-1
0913906087
ref: 6-1
09139-06126
SCREW(6X20)
€ 4.00
6-2
0913906126
ref: 6-2
SCREW(6X20)
€ 4.00
7
0932009016
ref: 7
CUSHION
€ 2.50
8
9457008F00
ref: 8
BRACKET,UNDER COWL,L & FRAME
€ 7.00
9
9447508F00
ref: 9
COWLING,UNDER CTR
€ 54.00
10
0354105123
ref: 10
03541-0512A
SCREW
€ 2.00
