STARTING MOTOR (MODEL K1/K2/K3)

GSX600F KATANA 2000 (Y) USA (E03)

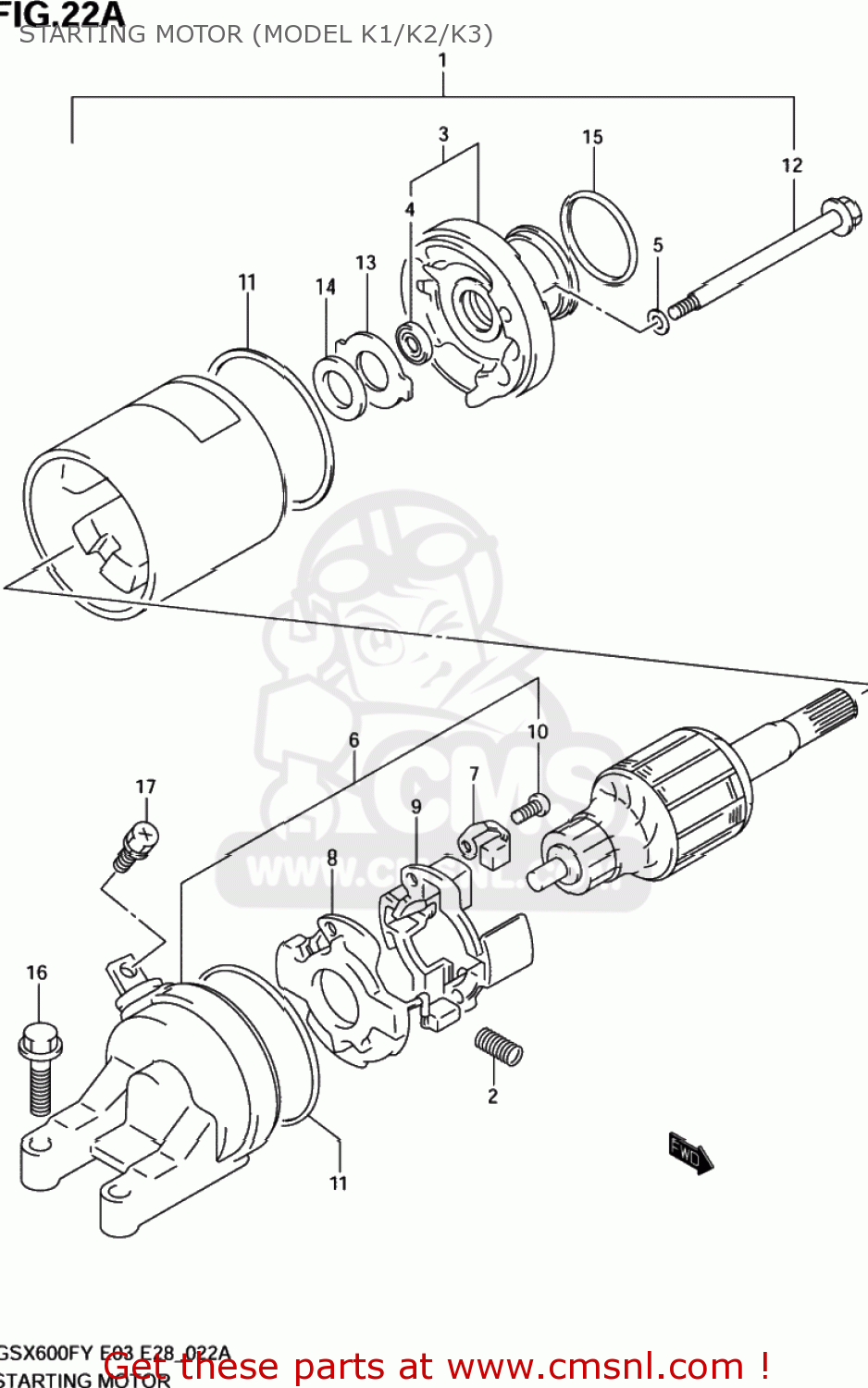

Starting motor (model k1/k2/k3) diagram GSX600F KATANA 2000 (Y) USA (E03)

STARTING MOTOR (MODEL K1/K2/K3) GSX600F KATANA 2000 (Y) USA (E03)

STARTING MOTOR (MODEL K1/K2/K3) GSX600F KATANA 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3110008F00
ref: 1

MOTOR ASSY,STARTING

€ 999.00

2

3113532C10
ref: 2

SPRING

€ 3.50

3

3115008F00
ref: 3

BRACKET

€ 87.50

4

3115349210
ref: 4

SEAL,OIL

€ 15.00

5

3115608F00
ref: 5

O RING

€ 3.00

6

3117508F00
ref: 6

FRAME ASSY,COMMUTATOR

€ 143.50

7

3113232C10
ref: 7

BRUSH

€ 14.50

8

3113032C20
ref: 8

BRUSH SUB ASSY,STARTER

€ 28.00

9

3113332C10
ref: 9

HOLDER,BRUSH

€ 9.00

10

0211234123
ref: 10
02112-3412B

SCREW

€ 2.00

11

3126432C10
ref: 11

O RING

€ 9.00

12

3128132C10
ref: 12

BOLT

€ 8.50

13

3136132C10
ref: 13

PLATE,LOCK

€ 2.50

14

3136138300
ref: 14

SHIM

€ 1.50

15

0928024003
ref: 15

O RING(D:3,ID:24.5)

€ 2.00

16

0912806024
ref: 16
09103-06212

SCREW (6X25)

€ 2.50

17

0913705004
ref: 17

SCREW(5X8)

€ 2.00
