FUEL COCK

GSX600F KATANA 2002 (K2) USA (E03)

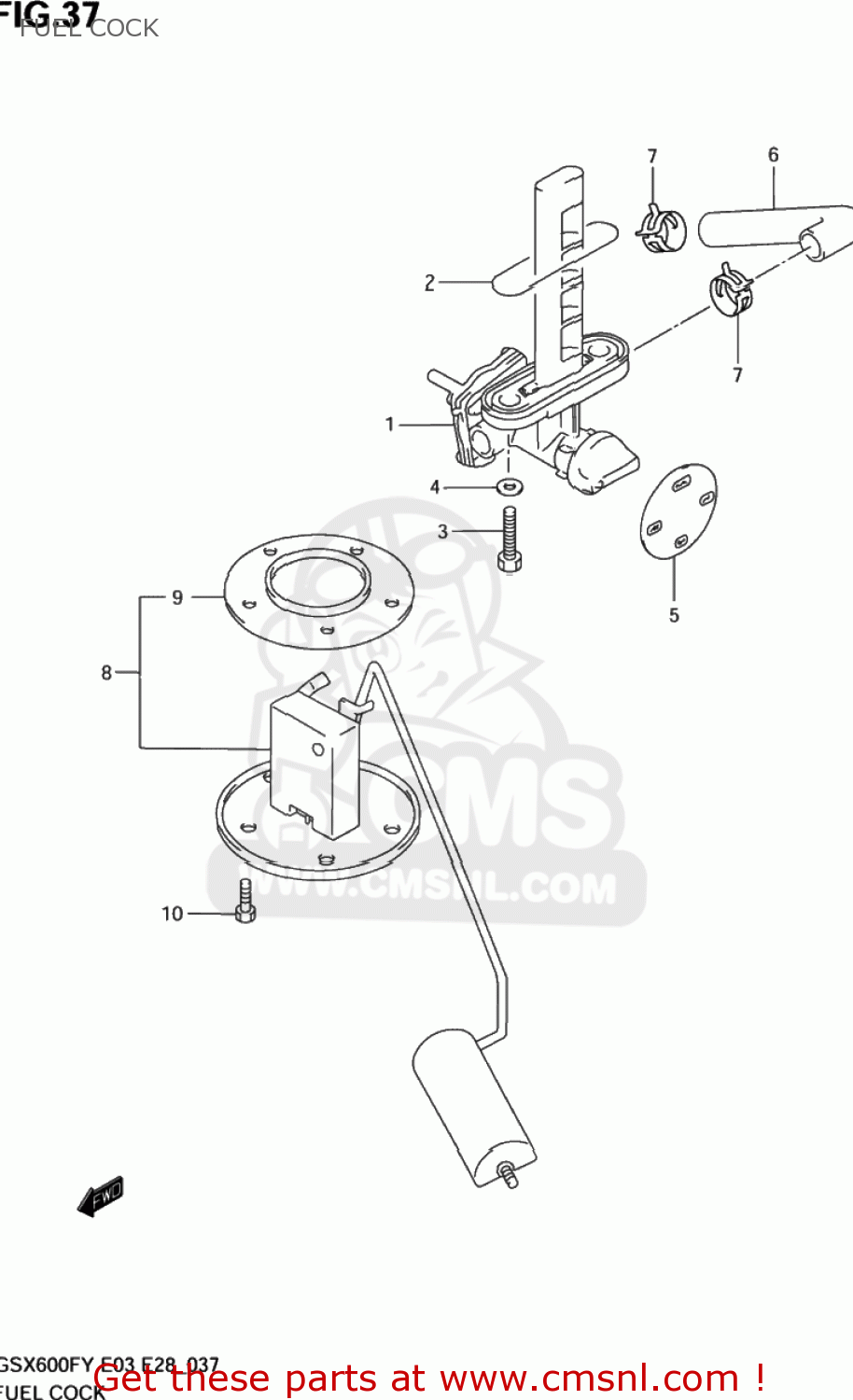

Fuel cock diagram GSX600F KATANA 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

4430008F00
ref: 1

COCK ASSEMBLY,FUEL

€ 153.50

4434849170
ref: 2

O RING

€ 3.50

0912806006
ref: 3
09128-06057

BOLT(6X20)

€ 2.00

0916806026
ref: 4

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

5-1

4439508F0020G
ref: 5-1

LABEL,FUEL COCK(GRAY)

€ 22.50

5-2

4439508F0013L
ref: 5-2

LABEL,FUEL COCK(SILVER)

€ 23.00

4443121E00
ref: 6
44431-21ER0

HOSE,FUEL ON

€ 8.00

0940111407
ref: 7
09401-11415

CLIP

€ 2.50

3481008F00
ref: 8

GAUGE ASSY,FUEL LEVEL SENDER

€ 118.00

3482545100
ref: 9

GASKET,FUEL LEVEL GAUGE (NAS)

€ 7.00

0911705003
ref: 10
01570-0510B

BOLT 5X10

€ 2.00
