STARTING MOTOR (MODEL K1/K2/K3)

GSX600F KATANA 2002 (K2) USA (E03)

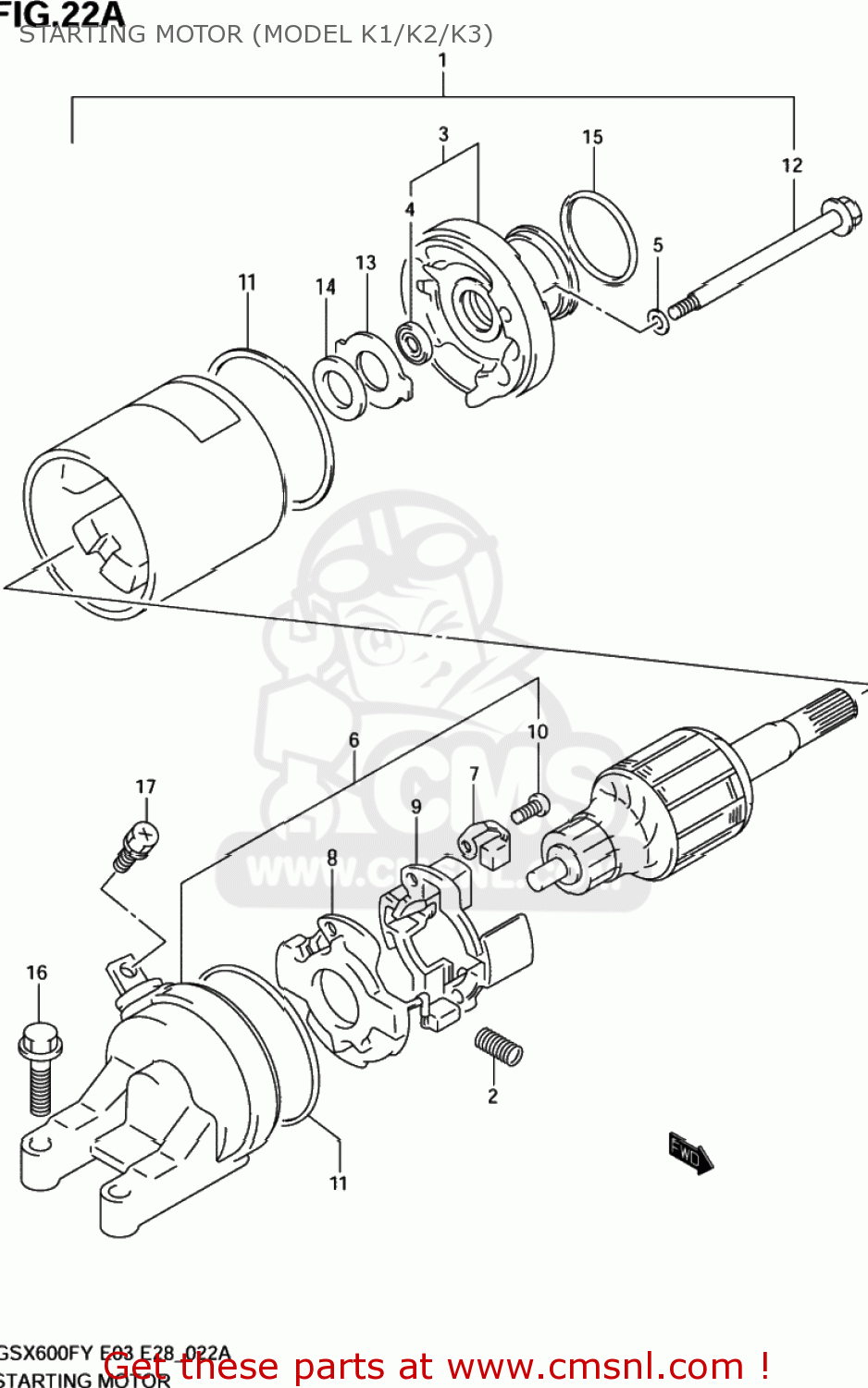

Starting motor (model k1/k2/k3) diagram GSX600F KATANA 2002 (K2) USA (E03)

STARTING MOTOR (MODEL K1/K2/K3) GSX600F KATANA 2002 (K2) USA (E03)
STARTING MOTOR (MODEL K1/K2/K3) GSX600F KATANA 2002 (K2) USA (E03)
STARTING MOTOR (MODEL K1/K2/K3) GSX600F KATANA 2002 (K2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3110008F00
ref: 1
MOTOR ASSY,STARTING
€ 999.00
2
3113532C10
ref: 2
SPRING
3113532C10
€ 3.50
3
3115008F00
ref: 3
BRACKET
3115008F00
€ 87.50
4
3115349210
ref: 4
SEAL,OIL
3115349210
€ 15.00
5
3115608F00
ref: 5
O RING
3115608F00
€ 3.00
6
3117508F00
ref: 6
FRAME ASSY,COMMUTATOR
€ 143.50
7
3113232C10
ref: 7
BRUSH
3113232C10
€ 14.50
8
3113032C20
ref: 8
BRUSH SUB ASSY,STARTER
3113032C20
€ 28.00
9
3113332C10
ref: 9
HOLDER,BRUSH
3113332C10
€ 9.00
10
0211234123
ref: 10
02112-3412B
SCREW
0211234123
€ 2.00
11
3126432C10
ref: 11
O RING
3126432C10
€ 9.00
12
3128132C10
ref: 12
BOLT
3128132C10
€ 8.50
13
3136132C10
ref: 13
PLATE,LOCK
€ 2.50
14
3136138300
ref: 14
SHIM
3136138300
€ 1.50
15
0928024003
ref: 15
O RING(D:3,ID:24.5)
0928024003
€ 2.00
16
0912806024
ref: 16
09103-06212
SCREW (6X25)
0912806024
€ 2.50
17
0913705004
ref: 17
SCREW(5X8)
0913705004
€ 2.00
