SIGNAL GENERATOR

GSX600F KATANA 2002 (K2) USA (E03)

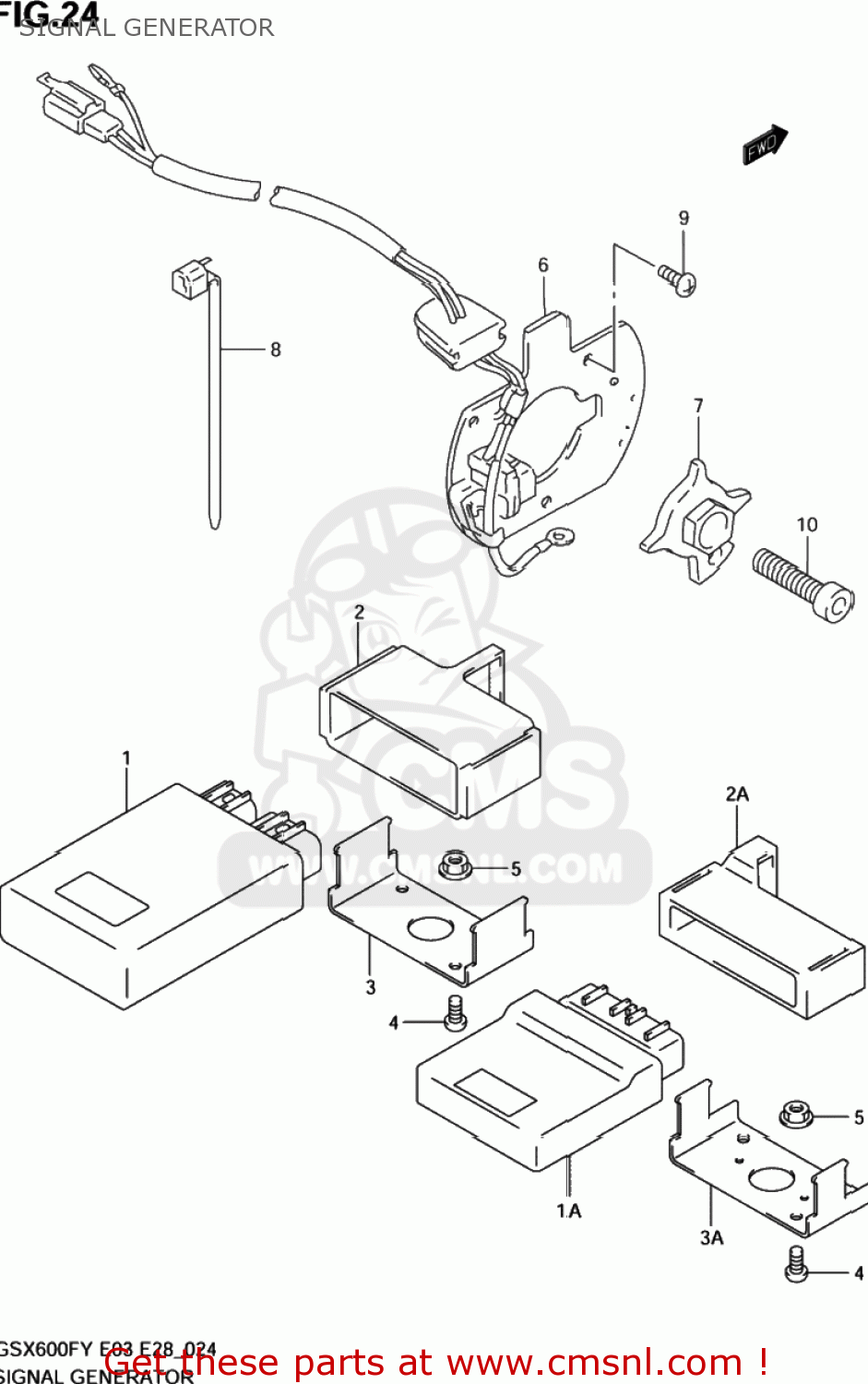

Signal generator diagram GSX600F KATANA 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

3290008F20
ref: 1

IGNITOR ASSY

€ 0.00

3290008FB0
ref: 1A

IGNITER ASSY

€ 0.00

3298040C01
ref: 2

CUSHION,IGNITOR

€ 9.50

3298041F00
ref: 2A

COVER,IGNITOR

€ 9.00

3293308F00
ref: 3

BRACKET,IGNITOR

€ 4.50

3293308F10
ref: 3A

BRACKET,IGNITOR

€ 4.50

0214205123
ref: 4
02142-0512A

SCREW 5X12

€ 1.50

0831610053
ref: 5
08316-1005A

NUT

€ 2.50

6-1

3311017C00
ref: 6-1

GENERATOR ASSY,SIGNAL

€ 324.00

6-2

3311031F00
ref: 6-2
33110-31F01

STATOR,SIGNAL GENERATOR

€ 323.50

3312019C20
ref: 7

ROTOR,SIGNAL GENERATOR

€ 182.00

0940714403
ref: 8

CLAMP(L:125)

€ 2.50

0211205103
ref: 9
02112-0510A

SCREW

€ 2.00

0713008303
ref: 10
07130-0830A

BOLT

€ 3.00
