COOLING FAN (E33)

GSX600F KATANA 2005 (K5) USA (E03)

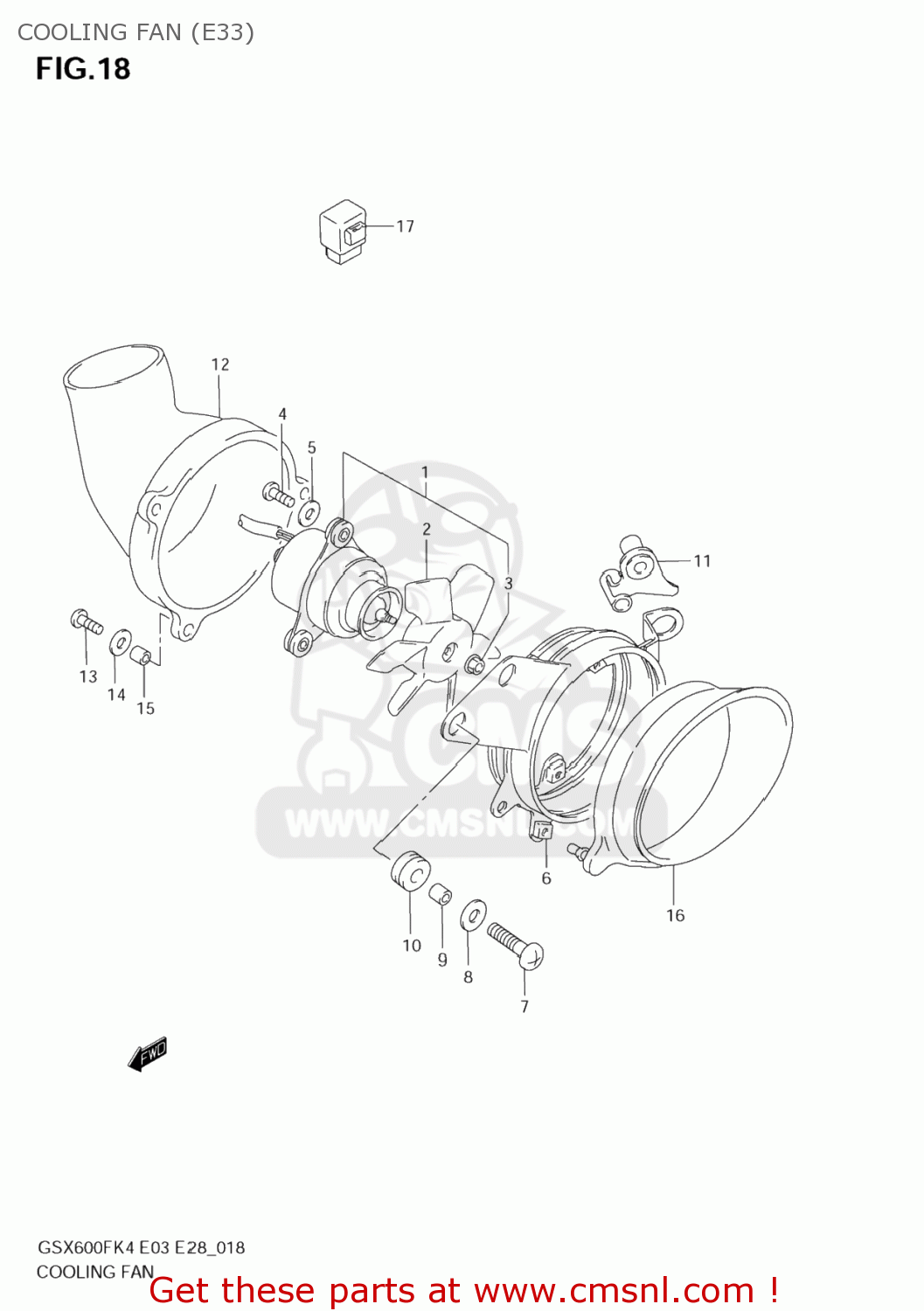

Cooling fan (e33) diagram GSX600F KATANA 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1710048B00
ref: 1

FAN ASSY,COOLING

€ 187.50

1712048B00
ref: 2

FAN

€ 24.00

0831610033
ref: 3

NUT

€ 1.50

0211204163
ref: 4
02112-0416A

SCREW 4X16

€ 1.00

0916004022
ref: 5

WASHER(4.3X14X0.8)

€ 1.50

1725020C00
ref: 6

SHROUD,FAN

€ 35.00

0214206203
ref: 7
02142-0620A

SCREW

€ 2.00

0916006056
ref: 8

WASHER(6.5X18X1)

€ 2.00

0918006257
ref: 9

SPACER(6.5X9X6.5)

€ 2.50

0932009036
ref: 10

CUSHION

€ 4.00

1726020C00
ref: 11

BRACKET,FAN SHROUD

€ 6.00

1727120C00
ref: 12

DUCT,FAN COOLING NO.1

€ 23.00

0211204123
ref: 13
02112-0412A

SCREW

€ 1.50

0916004022
ref: 14

WASHER(4.3X14X0.8)

€ 1.50

0918004301
ref: 15

SPACER(4.5X6.5X5)

€ 0.00

1727208F00
ref: 16

DUCT,FAN COOLING NO.2

€ 0.00

3887048B00
ref: 17

CONTROLLER ASSY,FAN MOTOR

€ 145.50
