REAR CUSHION LEVER
GSX600F KATANA 2005 (K5) USA (E03)

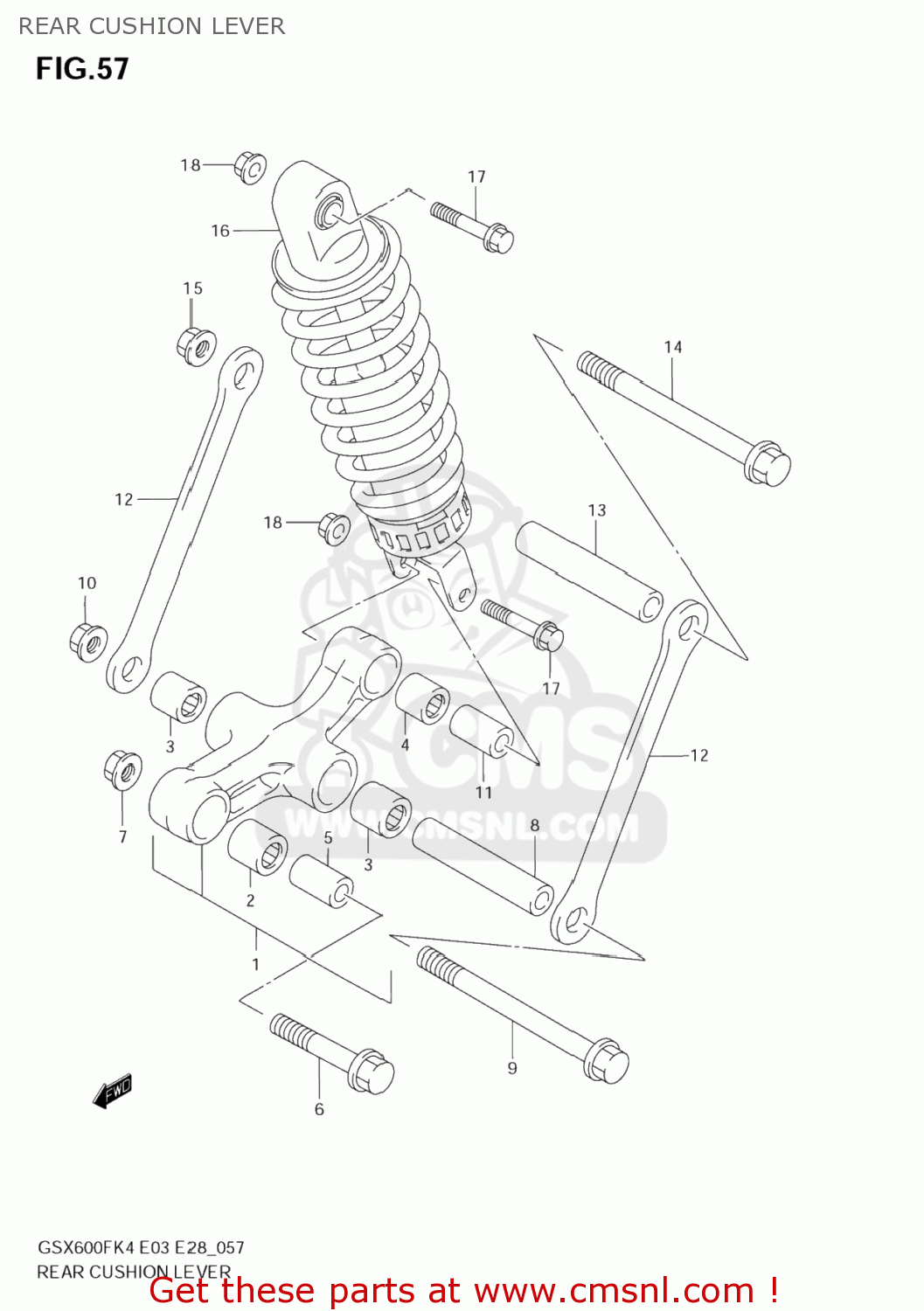

Rear cushion lever diagram GSX600F KATANA 2005 (K5) USA (E03)
REAR CUSHION LEVER GSX600F KATANA 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6260008810
ref: 1
LEVER SET,RR CUSHION
€ 350.00
2
0926320073
ref: 2
BEARING(20X27X30)
€ 24.50
3
0926320071
ref: 3
BEARING(20X27X23.5)
€ 21.50
4
0926317034
ref: 4
BEARING(17X24X26)
€ 21.50
5
0918014014
ref: 5
SPACER(14X20X34)
€ 11.50
6
0910314012
ref: 6
BOLT(14X62)
€ 6.00
7
0831931148
ref: 7
08319-3114A
NUT
€ 9.00
8
6231740C10
ref: 8
SPACER,RR CUSHION ROD
€ 28.50
9
6265840C10
ref: 9
SHAFT,RR CUSHION ROD
€ 21.50
10
0831931148
ref: 10
08319-3114A
NUT
€ 9.00
11
6268440A10
ref: 11
SPACER,RR CUSHION LEVER
€ 11.50
12
6264108F00
ref: 12
ROD,RR CUSHION
€ 25.00
13
6231740C10
ref: 13
SPACER,RR CUSHION ROD
€ 28.50
14
6265840C10
ref: 14
SHAFT,RR CUSHION ROD
€ 21.50
15
0831931148
ref: 15
08319-3114A
NUT
€ 9.00
16-1
6210008F00
ref: 16-1
ABSORBER ASSY,RR SHOCK
€ 567.50
16-2
6210008F20
ref: 16-2
ABSORBER ASSY,RR SHOCK
€ 572.50
17
0910310213
ref: 17
BOLT(10X52)
€ 4.00
18
0831931107
ref: 18
NUT
€ 3.00
