FRAME COVER (MODEL K6)

GSX600F KATANA 2005 (K5) USA (E03)

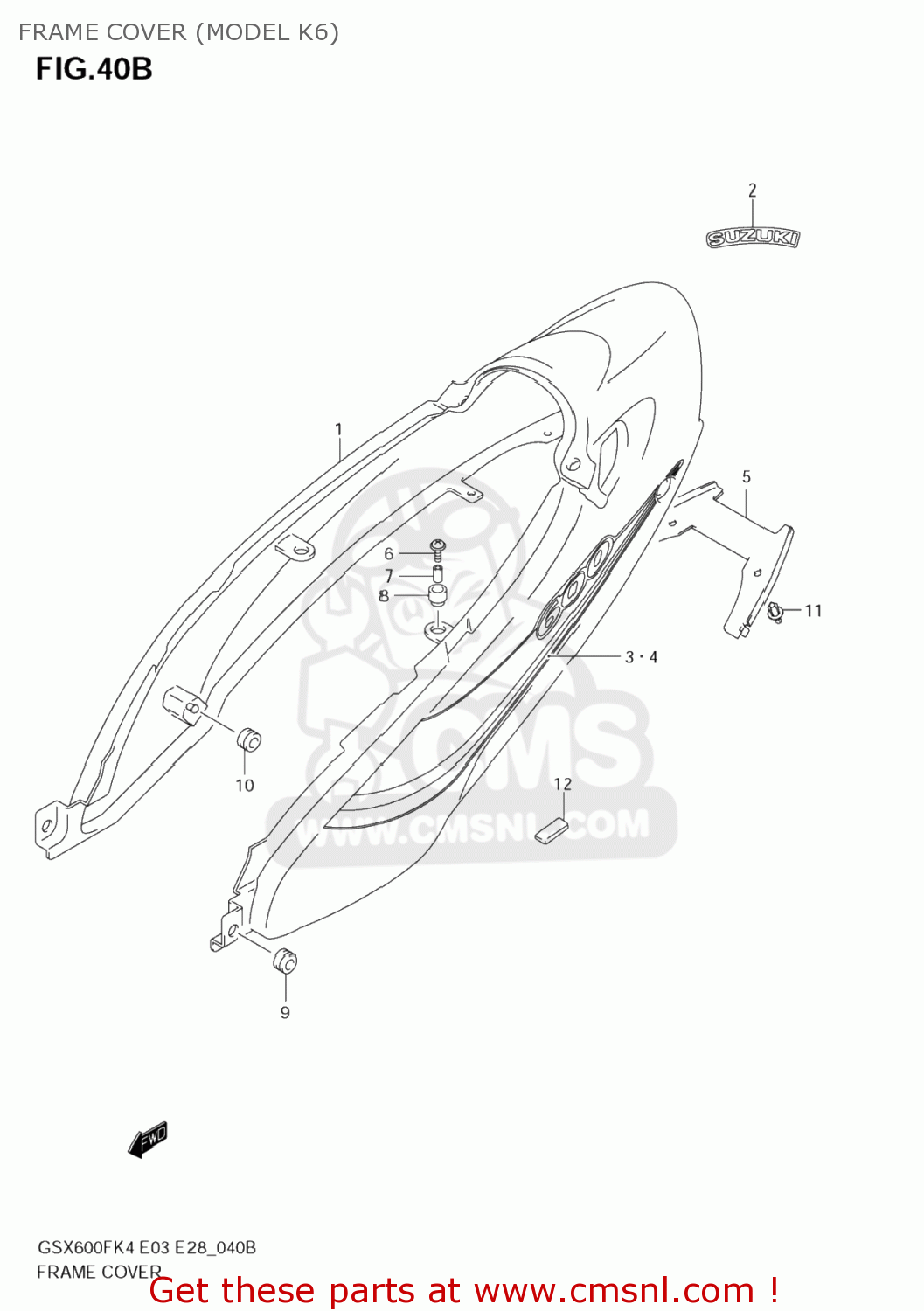

Frame cover (model k6) diagram GSX600F KATANA 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711008FA0019
ref: 1-1

COVER,FRAME(BLACK)

€ 208.00

1-2

4711008FA0YBD
ref: 1-2

COVER COMP,FRA

€ 208.00

2-1

6813139F00YD8
ref: 2-1

EMBLEM,FRAME COVER

€ 12.00

2-2

6813139F00019
ref: 2-2

EMBLEM,SUZUKI

€ 9.50

3-1

6813508F30DBJ
ref: 3-1

TAPE,FRAME COVER STRIPE,R

€ 52.50

3-2

6813508F30DBK
ref: 3-2

TAPE,FRAME COVER STRIPE,R

€ 71.50

4-1

6814508F30DBJ
ref: 4-1

TAPE,FRAME COVER STRIPE,L

€ 52.50

4-2

6814508F30DBK
ref: 4-2

TAPE,FRAME COVER STRIPE,L

€ 71.50

4732108FA0
ref: 5

COVER,FRAME LWR

€ 9.50

0913606105
ref: 6

SCREW(6X20)

€ 2.00

0918006286
ref: 7

SPACER(6.5X10X9.4)

€ 2.50

0932010045
ref: 8

CUSHION

€ 3.50

0932008028
ref: 9

CUSHION

€ 2.50

0932008018
ref: 10

CUSHION

€ 4.00

09409083085ES
ref: 11

CLIP(BLACK)

€ 2.00

4489424A00
ref: 12

CUSHION

€ 1.50
