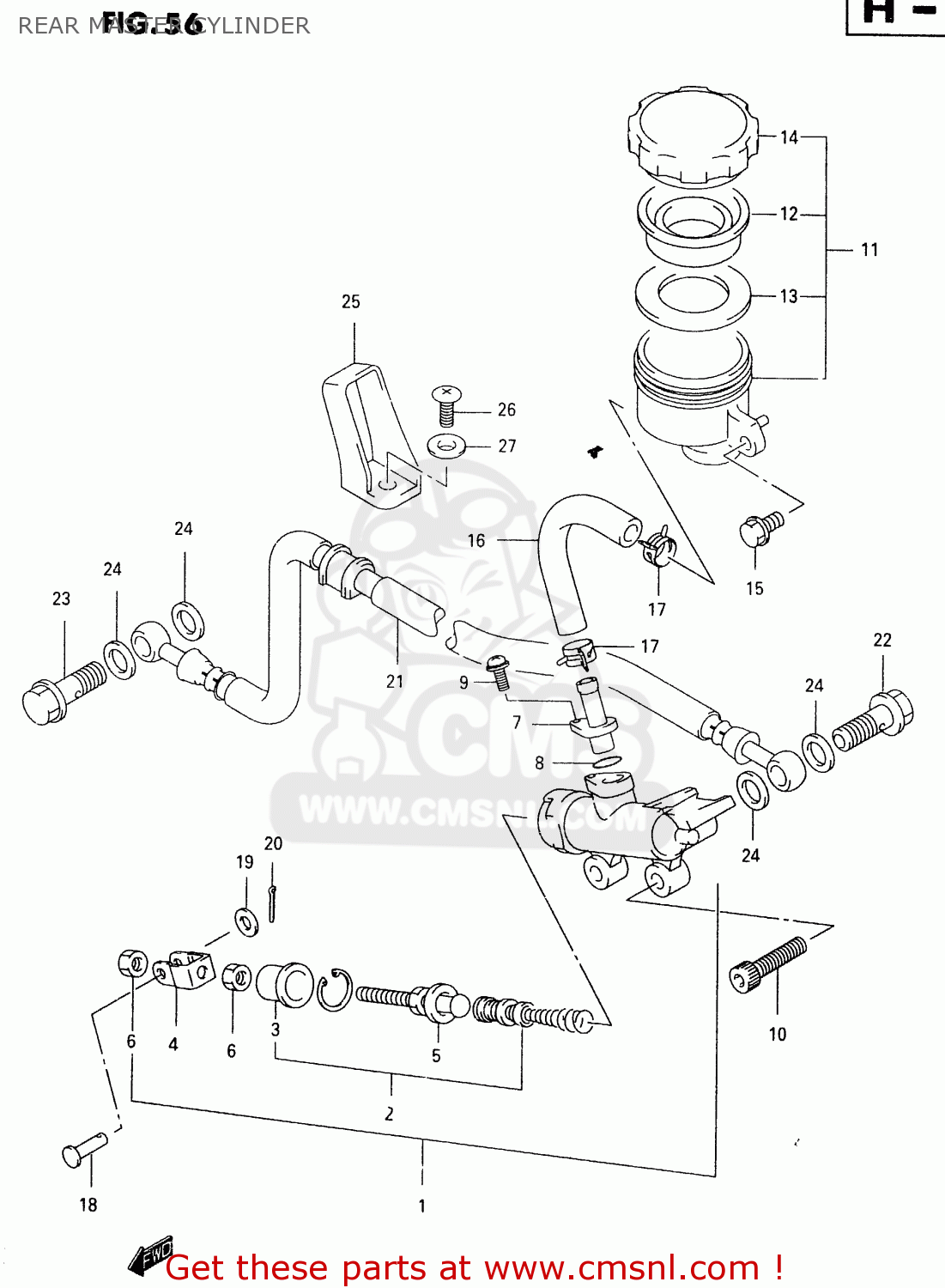

REAR MASTER CYLINDER

ref

part #

description

quantity

1

6960008F00
ref: 1

CYLINDER ASSY,RR MASTER

€ 194.50

2

6960004820
ref: 2

PISTON/CUP SET

€ 31.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969219A00
ref: 4

YOKE

€ 10.50

5

6967019C00
ref: 5

ROD,PUSH

€ 25.00

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967200A00
ref: 7

CONNECTOR

€ 5.50

8

6968634200
ref: 8

O RING

€ 3.50

9

0211274123
ref: 9

SCREW

€ 2.50

10

0910606073
ref: 10

BOLT(6X16)

€ 2.50

11

6974008F00
ref: 11

TANK ASSY,RR RESERVOIR

€ 93.50

12

5966718441
ref: 12

DIAPHRAGM

€ 8.50

13

5966818441
ref: 13

PLATE,DIAPHRAGM

€ 3.50

14

5966907D00
ref: 14

CAP

€ 16.50

15

0155006123
ref: 15

BOLT

€ 2.50

16

6973108F00
ref: 16

HOSE,RESERVOIR TANK

€ 16.00

17

0940113417
ref: 17

CLIP

€ 2.50

18

0920006037
ref: 18

PIN

€ 5.00

19

0832201063
ref: 19

WASHER

€ 2.00

20

0411120158
ref: 20

PIN

€ 1.50

21

6948008F00
ref: 21

HOSE COMP,REAR BRAKE

€ 105.00

22

0936010042
ref: 22

BOLT UNION

€ 5.00

23

0936010041
ref: 23

BOLT UNION

€ 6.50

24

0916110009
ref: 24

WASHER(10X15X1.5)

€ 2.00

25

6924306C00
ref: 25

GUIDE,RR BRAKE HOSE

€ 8.00

26

0214206163
ref: 26

SCREW

€ 2.50

27

0916906041
ref: 27

WASHER

€ 2.00
