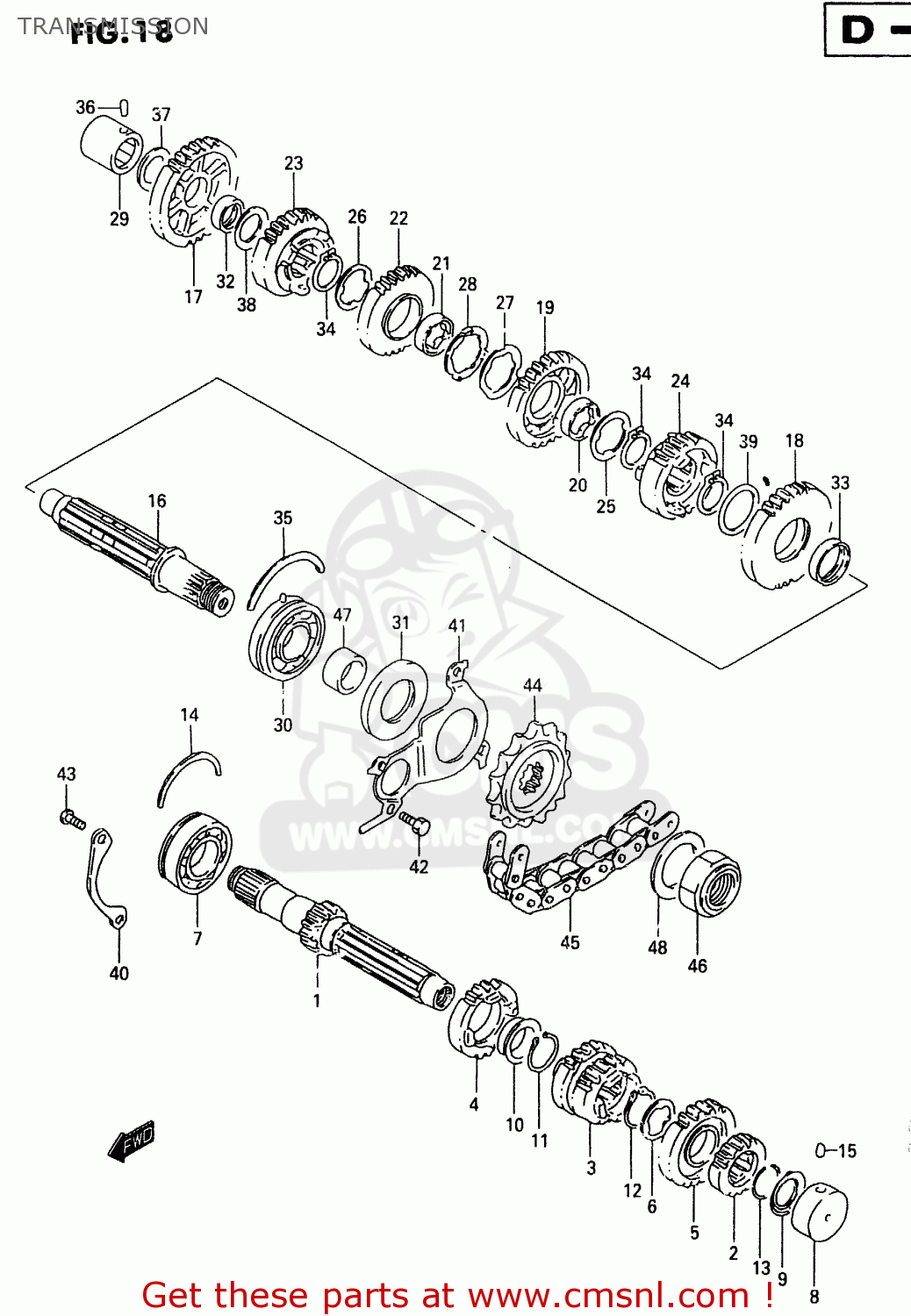

TRANSMISSION

ref

part #

description

quantity

1

2412119C01
ref: 1

SHAFT,COUNTER(NT:12)

€ 193.50

2

2422127A01
ref: 2

GEAR,2ND DRIVE(NT:16)

€ 93.00

3

2423127A00
ref: 3

GEAR,3RD & 4TH DRIVE(NT:17/20)

€ 162.00

4

2425127A01
ref: 4

GEAR,5TH DRIVE(NT:22)

€ 91.00

5

2426117C02
ref: 5

GEAR,6TH DRIVE(NT:21)

€ 119.50

6

0916725012
ref: 6

WASHER,LOCK

€ 3.50

7

0926225105
ref: 7
25X62X17

BEARING(25X62X17)

€ 59.50

8

0926320049
ref: 8
20X34X17.5

BEARING(20X34X17.5)

€ 58.00

9

0928520006
ref: 9

SEAL,OIL(20X31.2X2.7)

€ 7.00

10

0930125001
ref: 10

BUSHING

€ 12.50

11

0938025003
ref: 11

RING,SNAP

€ 3.00

12

0938025003
ref: 12

RING,SNAP

€ 3.00

13

0938025013
ref: 13

CIRCLIP

€ 3.00

14

0939062012
ref: 14

C RING

€ 5.00

15

0422107129
ref: 15

PIN

€ 1.50

16

2413120C30
ref: 16

SHAFT,DRIVE

€ 169.50

17

2431119C10
ref: 17

GEAR,1ST DRIVEN(NT:37)

€ 101.50

18

2432120C00
ref: 18

GEAR,2ND DRIVEN(NT:33)

€ 60.00

19

2433127A00
ref: 19

GEAR,3RD DRIVEN(NT:28)

€ 129.00

20

2433227A00
ref: 20

BUSH

€ 13.50

21

2433227A00
ref: 21

BUSH

€ 13.50

22

2434127A01
ref: 22

GEAR,4TH DRIVEN(NT:28)

€ 80.00

23

2435127A00
ref: 23

GEAR,5TH DRIVEN(NT:27)

€ 117.00

24

2436120C01
ref: 24

GEAR,6TH DRIVEN(NT:23)

€ 124.00

25

0916728001
ref: 25

WASHER,LOCK

€ 3.00

26

0916728001
ref: 26

WASHER,LOCK

€ 3.00

27

0916728002
ref: 27

WASHER,LOCK

€ 3.00

28

0916928001
ref: 28

WASHER

€ 3.00

29

0926320040
ref: 29
20X34X20

BEARING(20X34X20)

€ 42.50

30

0926725011
ref: 30
25X62X21.6

BEARING(25X62X21.6)

€ 136.00

31

0928334005
ref: 31
34X62X6

SEAL,OIL(34X62X6)

€ 14.50

32

0930022008
ref: 32

BUSH(22X26X9)

€ 10.50

33

0930028003
ref: 33

BUSH(28X32X9.5)

€ 19.50

34

0833131286
ref: 34

CIRCLIP

€ 2.50

35

0939062012
ref: 35

C RING

€ 5.00

36

0422107209
ref: 36

PIN

€ 1.50

37

0918120251
ref: 37

SHIM(20X34X1)

€ 3.00

38

0918122223
ref: 38

SHIM(22X34X1)

€ 3.00

39

0918128195
ref: 39

SHIM(28X38X1)

€ 3.50

40

2474127A00
ref: 40

RETAINER,CNTR SHAFT BEARING

€ 7.00

41

2475140C01
ref: 41

RETAINER,DRIVE SHAFT OIL SEAL

€ 7.00

42

0150006123
ref: 42

BOLT

€ 2.00

43

0212206163
ref: 43

SCREW ,6X16

€ 2.00

44

2751017C10
ref: 44

SPROCKET,ENGINE(NT:15)

€ 67.00

45

2760021E00118
ref: 45

CHAIN ASSEMBLY,DRIVE 118LE

€ 220.50

46

0915920004
ref: 46

NUT

€ 12.00

47

0918025091
ref: 47
25X34X17.5

SPACER(25X34X17.5)

€ 16.00

48

0918125268
ref: 48

SHIM(25X40X1.5)

€ 3.00
