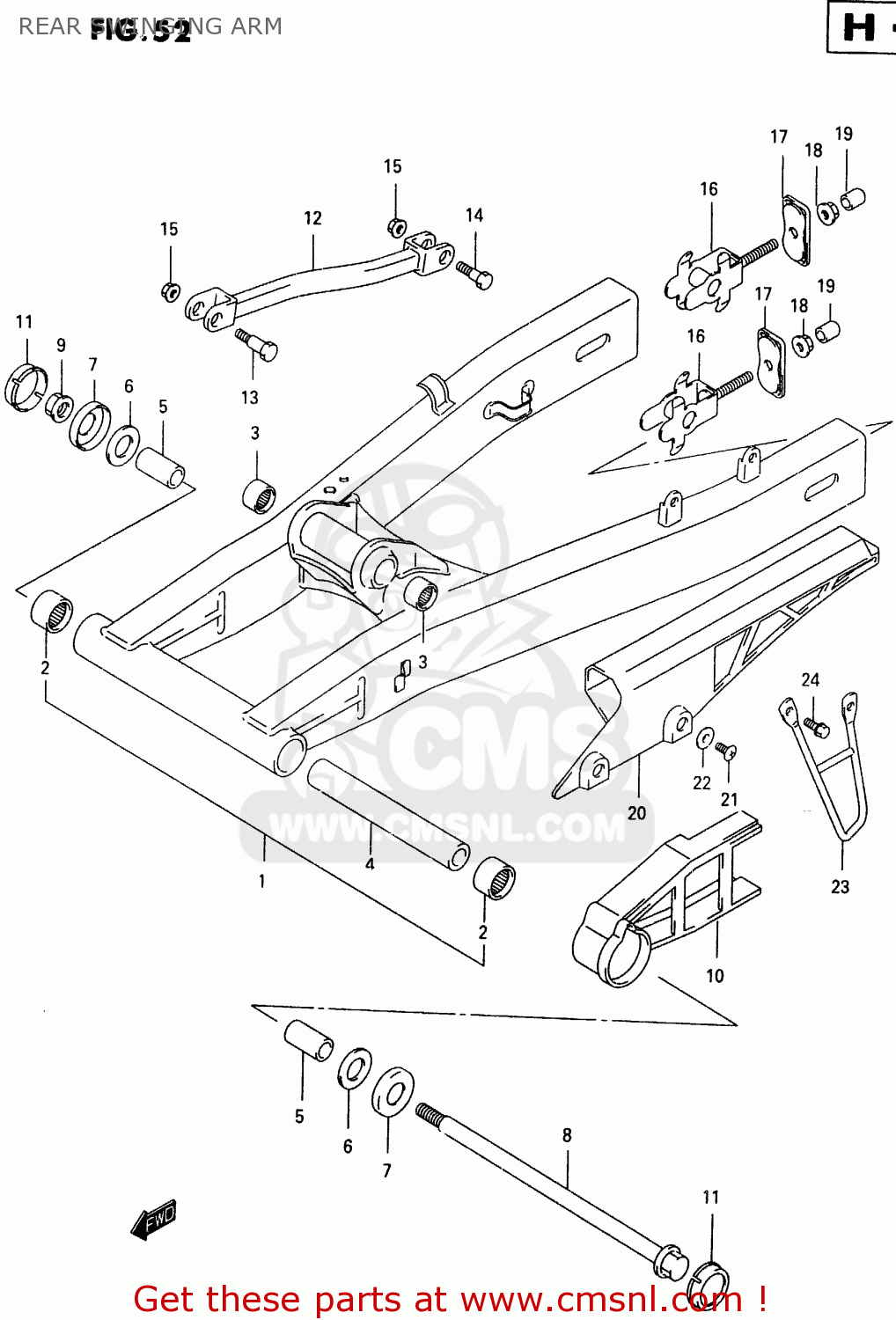

REAR SWINGING ARM

ref

part #

description

quantity

1

6100008F0013L
ref: 1

SWING ARM ASSEMBLY,REAR (

€ 681.00

2

0926322017
ref: 2

BEARING(22X29X30)

€ 18.50

3

0926320071
ref: 3

BEARING(20X27X23.5)

€ 21.50

4

6128208F00
ref: 4

SPACER,RR SWGARM PIVOT CTR

€ 13.00

5

6125138B00
ref: 5

SPACER,RR SWGARM PIVOT

€ 14.00

6

0821116341
ref: 6

WASHER

€ 2.00

7

6126232410
ref: 7

COVER,RR SWGARM DUST SEAL

€ 10.00

8

6121108F00
ref: 8

SHAFT,RR SWINGINGARM PIVOT

€ 50.00

9

0831931143
ref: 9

NUT

€ 9.00

10

6127320C00
ref: 10

BUFFER,CHAIN TOUCH DEFENSE

€ 24.50

11

6122243400
ref: 11

CAP,SWINGINGARM PIVOT

€ 4.00

12

6431008F00019
ref: 12

TORQUE LINK COMP,REAR

€ 39.00

13

0911110051
ref: 13

BOLT(10X39)

€ 8.50

14

0910010187
ref: 14

BOLT(10X34)

€ 4.50

15

0831931107
ref: 15

NUT

€ 3.00

16

6141008F00
ref: 16

ADJUSTER,CHAIN

€ 31.50

17

6142008F00
ref: 17

PLATE,CHAIN ADJ GUIDE

€ 13.00

18

0831931087
ref: 18

NUT

€ 2.50

19

6144233300
ref: 19
E22

CAP,CHAIN ADJUSTER

€ 6.00

20

6131008F00
ref: 20

CASE,CHAIN

€ 58.00

21

0214206123
ref: 21

SCREW 6X12

€ 2.00

22

0916906026
ref: 22

WASHER

€ 2.00

23

6139008F00
ref: 23

GUARD,CHAIN

€ 29.50

24

0154706123
ref: 24

BOLT

€ 2.00

all assemblies
