FRONT DAMPER (MODEL K/L/M/N/P/R/S/T)

GSX600FU2 1994 (R) GERMANY (E22)

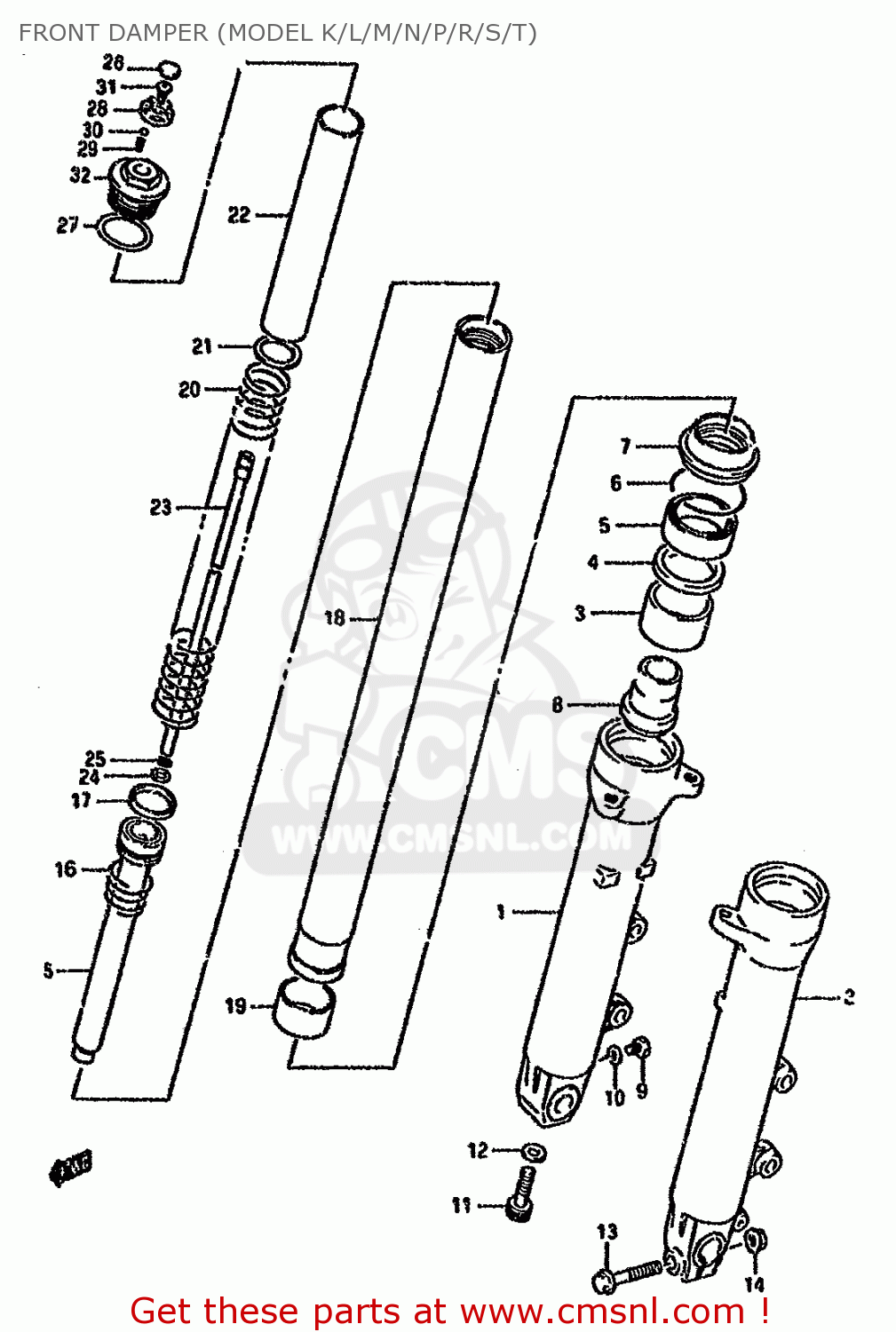

Front damper (model k/l/m/n/p/r/s/t) diagram GSX600FU2 1994 (R) GERMANY (E22)

FRONT DAMPER (MODEL K/L/M/N/P/R/S/T) GSX600FU2 1994 (R) GERMANY (E22)
FRONT DAMPER (MODEL K/L/M/N/P/R/S/T) GSX600FU2 1994 (R) GERMANY (E22)
FRONT DAMPER (MODEL K/L/M/N/P/R/S/T) GSX600FU2 1994 (R) GERMANY (E22)
prices are in EUR
ref
part #
description
quantity
0
5110319C10
ref: 0
MODEL K/L
DAMPER ASSEMBLY,RIGHT
€ 566.00
0
5110319C1013L
ref: 0
MODEL M/N/P/R/S/T
DAMPER ASSY,FR FORK,R
5110319C1013L
€ 566.00
0
5110419C10
ref: 0
MODEL K/L
DAMPER ASSEMBLY,LEFT
€ 566.00
0
5110419C1013L
ref: 0
MODEL M/N/P/R/S/T
DAMPER ASSY,FR FORK,L
€ 566.00
1-1
5113019C10
ref: 1-1
MODEL K/L
TUBE,OUTER,RIGHT
€ 395.00
1-2
5113019C1013L
ref: 1-2
MODEL M/N/P/R/S/T
TUBE,OUTER,R
€ 395.00
2-1
5114019C10
ref: 2-1
MODEL K/L
TUBE,OUTER,LEFT
€ 385.50
2-2
5114019C1013L
ref: 2-2
MODEL M/N/P/R/S/T
TUBE,OUTER,L
5114019C1013L
€ 385.50
3
5115248B31
ref: 3
BUSH,GUIDE
5115248B31
€ 20.00
4
5116838B00
ref: 4
SPACER,SEAL
5116838B00
€ 5.00
5-1
5115312C00
ref: 5-1
MODEL K/L/M
OIL SEAL,FRONT FORK
€ 15.50
5-2
5115308D00
ref: 5-2
MODEL N/P/R/S/T
SEAL,OIL
5115308D00
€ 15.50
6
5155638B00
ref: 6
CIRCLIP,FORK OIL SEAL
5155638B00
€ 4.50
7-1
5157138B00
ref: 7-1
MODEL K/L/M
BOOT
5157138B00
€ 19.50
7-2
5117308D00
ref: 7-2
MODEL N/P/R
DUST SEAL,FRONT FORK
€ 19.50
7-3
5117315D00
ref: 7-3
MODEL S/T
DUST SEAL
5117315D00
€ 19.50
8-1
5119519C10
ref: 8-1
MODEL K/L/M
PIECE,OIL LOCK
€ 42.00
8-2
5119520C10
ref: 8-2
MODEL N/P/R/S/T
PIECE,OIL LOCK
€ 42.00
9
0910006011
ref: 9
BOLT(6X8)
0910006011
€ 2.50
10
5118331030
ref: 10
GASKET,DRAIN,PLUG (NAS)
5118331030
€ 4.00
11
5114748130
ref: 11
BOLT(8X27)
5114748130
€ 3.50
12
5114836011
ref: 12
GASKET (NAS)
5114836011
€ 4.00
13
0155008507
ref: 13
BOLT
0155008507
€ 3.50
14
0831610087
ref: 14
NUT
0831610087
€ 2.50
15
5119419C10
ref: 15
SEAT,UNDER
€ 89.50
16
5117748B31
ref: 16
SPRING,REBOUND
5117748B31
€ 12.00
17
5119619C00
ref: 17
RING,PISTON
5119619C00
€ 4.50
18
5111019C10
ref: 18
TUBE,INNER
5111019C10
€ 311.50
19
5112148B31
ref: 19
BUSH,SLIDE
5112148B31
€ 15.50
20
5117119C10
ref: 20
SPRING,MAIN
€ 49.50
21
5119219C00
ref: 21
JOINT,SPRING
5119219C00
€ 3.50
22
5117634C00
ref: 22
SPACER,SPRING
€ 6.00
23
5211119C10
ref: 23
ROD,INNER
€ 47.00
24
5135419C10
ref: 24
WASHER
5135419C10
€ 2.00
25
5111719C10
ref: 25
O RING
5111719C10
€ 2.00
26
5118919C10
ref: 26
CAP
5118919C10
€ 7.00
27
5111712C00
ref: 27
O RING
5111712C00
€ 3.00
28
5219319C10
ref: 28
PLATE,ADJUSTER
5219319C10
€ 6.50
29
5111819C10
ref: 29
SPRING
5111819C10
€ 2.00
30
5183517C00
ref: 30
BALL
5183517C00
€ 3.00
31
5118819C10
ref: 31
SCREW
5118819C10
€ 2.00
32-1
5135119C10
ref: 32-1
MODEL K/L
BOLT,FORK INNER TUBE
€ 52.50
32-2
5135120C00
ref: 32-2
MODEL M/N/P/R/S/T
BOLT,FORK
5135120C00
€ 52.50
