HEADLAMP (MODEL T)
GSX600FU2 1994 (R) GERMANY (E22)

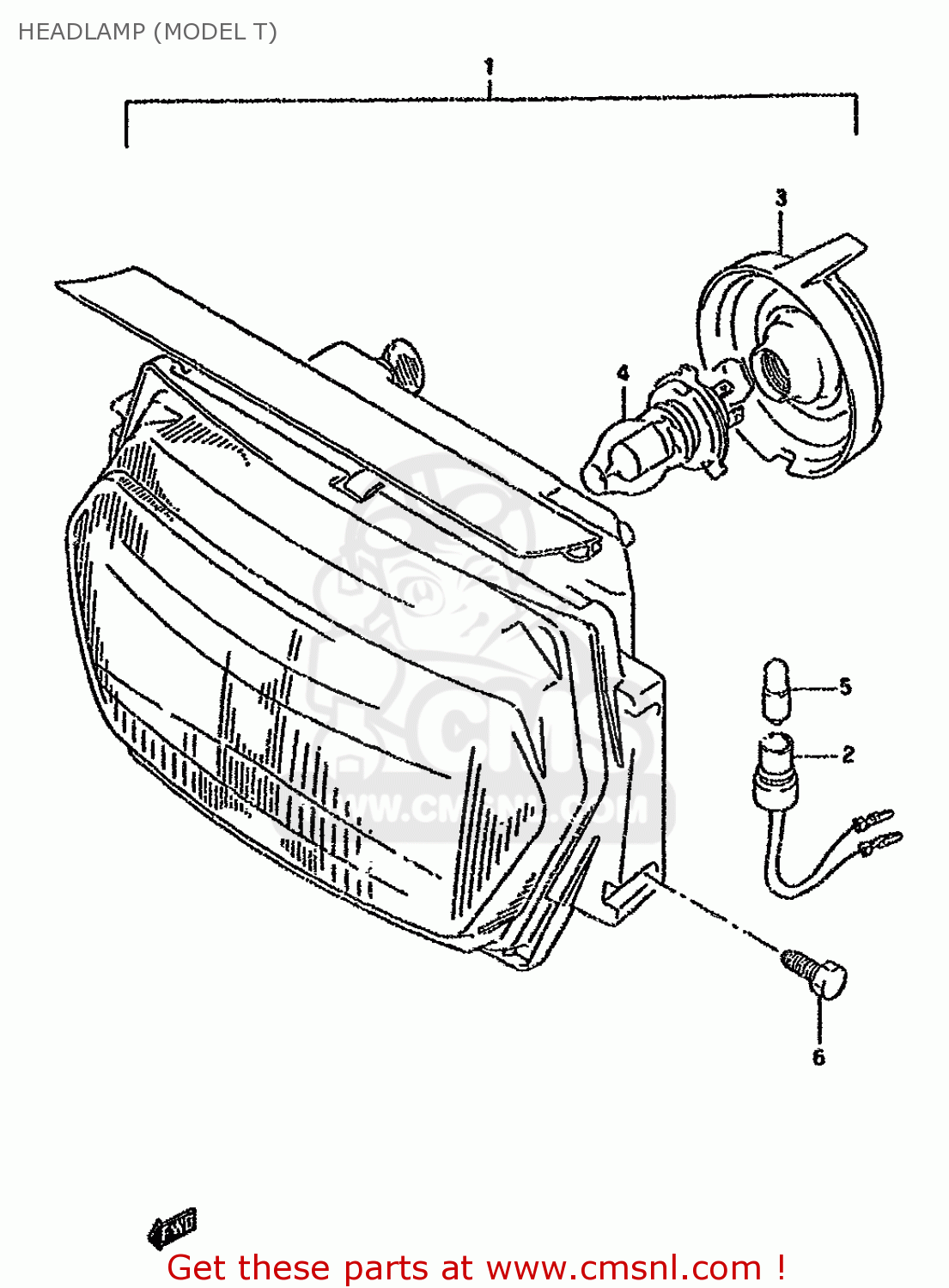

Headlamp (model t) diagram GSX600FU2 1994 (R) GERMANY (E22)
HEADLAMP (MODEL T) GSX600FU2 1994 (R) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510034C01999
ref: 1-1
HEADLAMP ASSY
€ 217.00
1-2
3510020C51999
ref: 1-2
E17,E22,E25,E34
HEADLAMP ASSY
€ 217.00
2
3611832B10
ref: 2
SOCKET
€ 9.50
3
3517348B00
ref: 3
COVER,SOCKET
€ 10.50
4
0947112060
ref: 4
BULB(12V60/55W,H4)
€ 8.00
5
0947112063
ref: 5
BULB(12V4W)
€ 6.00
6
0158006163
ref: 6
BOLT
€ 2.50
7
0947112060
ref: 7
BULB(12V60/55W,H4)
€ 8.00
8
0947112063
ref: 8
BULB(12V4W)
€ 6.00
9
0158006163
ref: 9
BOLT
€ 2.50
5
3524319C00
ref: 5
GASKET,HEADLAMP (NAS)
€ 8.00
6
3524419C00
ref: 6
GASKET (NAS)
€ 3.50
7
0947112060
ref: 7
BULB(12V60/55W,H4)
€ 8.00
8
0947112061
ref: 8
E4,PURCHASE LOCALLY
BULB (12V, 60/55W, H4)
€ 0.00
9
0947112063
ref: 9
BULB(12V4W)
€ 6.00
10-1
0150006163
ref: 10-1
MODEL J/K/L/M
BOLT
€ 2.00
10-2
0158006163
ref: 10-2
MODEL N
BOLT
€ 2.50
11
0832101063
ref: 11
LOCK WASHER
€ 2.00
12
0832201063
ref: 12
WASHER
€ 2.00
13
3595014A00
ref: 13
E39,E77
REFLECTOR,REFLEX FR
€ 15.00
14
3595619C00
ref: 14
E39,E77
BRACKET,FR SIDE RR,R
€ 4.50
15
3595719C00
ref: 15
E39,E77
BRACKET,FR SIDE RR,L
€ 5.50
16
0831620053
ref: 16
E39,E77,-08316-26055
NUT
€ 2.00
