TURN SIGNAL LAMP (MODEL T)
GSX600FU2 1994 (R) GERMANY (E22)

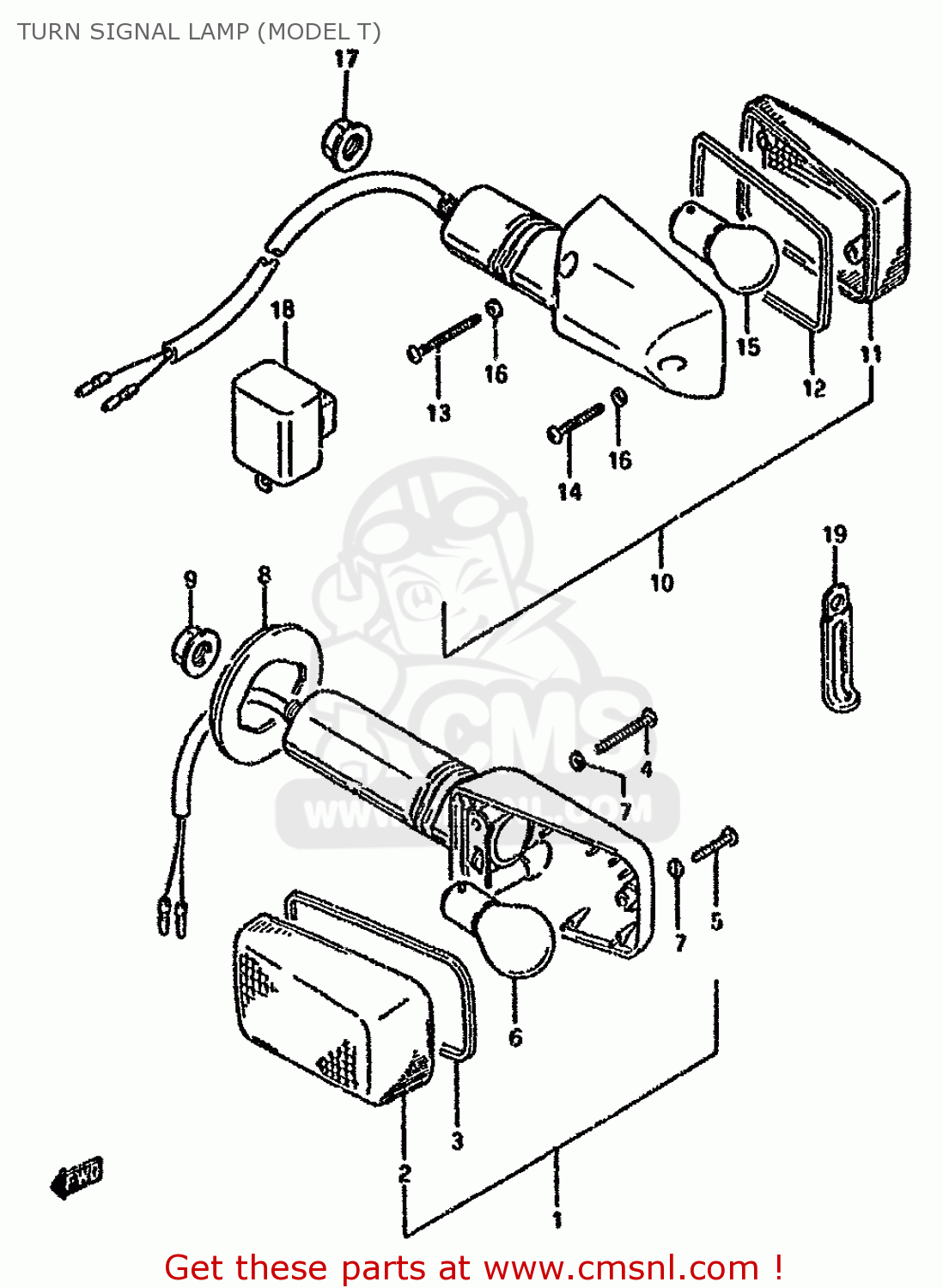

Turn signal lamp (model t) diagram GSX600FU2 1994 (R) GERMANY (E22)
TURN SIGNAL LAMP (MODEL T) GSX600FU2 1994 (R) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3560101D10
ref: 1
LAMP ASSY,FR TURN SIGNAL
€ 70.50
2
3561217C20
ref: 2
LENS
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
€ 1.50
5
3572540511
ref: 5
SCREW
€ 1.50
6
0947112045
ref: 6
BULB(12V21W)
€ 5.00
7
3562727A02
ref: 7
GASKET (NAS)
€ 1.50
8
3567427A01
ref: 8
GROMMET
€ 13.50
9
0831610103
ref: 9
NUT
€ 2.00
10-1
3560314D10
ref: 10-1
E2,E25,E34
LAMP ASSY,RR TURNSIGNAL
€ 88.00
10-2
3560314D20
ref: 10-2
E17,E22
LAMP ASSY,RR TURNSIGNAL
€ 74.00
11
3565217C20
ref: 11
LENS
€ 6.50
12
3561327A00
ref: 12
GASKET (NAS)
€ 3.00
13
3562327A00
ref: 13
SCREW(3X30)
€ 1.50
14
3572540511
ref: 14
SCREW
€ 1.50
15
0947112045
ref: 15
BULB(12V21W)
€ 5.00
16
3562727A02
ref: 16
GASKET (NAS)
€ 1.50
17
0831610103
ref: 17
NUT
€ 2.00
18
3861045D01
ref: 18
RELAY ASSY,TURNSIGNAL LAMP
€ 68.50
19
0940406429
ref: 19
CLAMP(L:45)
€ 2.50
12
3561327A00
ref: 12
GASKET (NAS)
€ 3.00
13
3562327A00
ref: 13
SCREW(3X30)
€ 1.50
14
3572540511
ref: 14
SCREW
€ 1.50
15
0947112045
ref: 15
BULB(12V21W)
€ 5.00
16
3562727A02
ref: 16
GASKET (NAS)
€ 1.50
17-1
0831626105
ref: 17-1
MODEL J/K/L/M
NUT
€ 3.50
17-2
0831626106
ref: 17-2
MODEL N/P
NUT
€ 3.50
17-3
0831620103
ref: 17-3
MODEL R/S
NUT
€ 3.50
18-1
3861031X50
ref: 18-1
MODEL J/K/L/M/N-3861
RELAY ASSY,TURNSIGNAL
€ 54.50
18-2
3861045091
ref: 18-2
MODEL J/K/L/M/N E22
RELAY ASSY,TUR
€ 67.50
18-3
3861045D00
ref: 18-3
MODEL P
RELAY,TURN SIGNAL
€ 68.50
18-4
3861045D01
ref: 18-4
MODEL R/S
RELAY ASSY,TURNSIGNAL LAMP
€ 68.50
19-1
0940405401
ref: 19-1
MODEL J/K/L/M/N/P/R
CLAMP
€ 2.50
19-2
0940406429
ref: 19-2
MODEL S
CLAMP(L:45)
€ 2.50
