CARBURETOR
GSX750F KATANA 1989 (K) USA (E03)

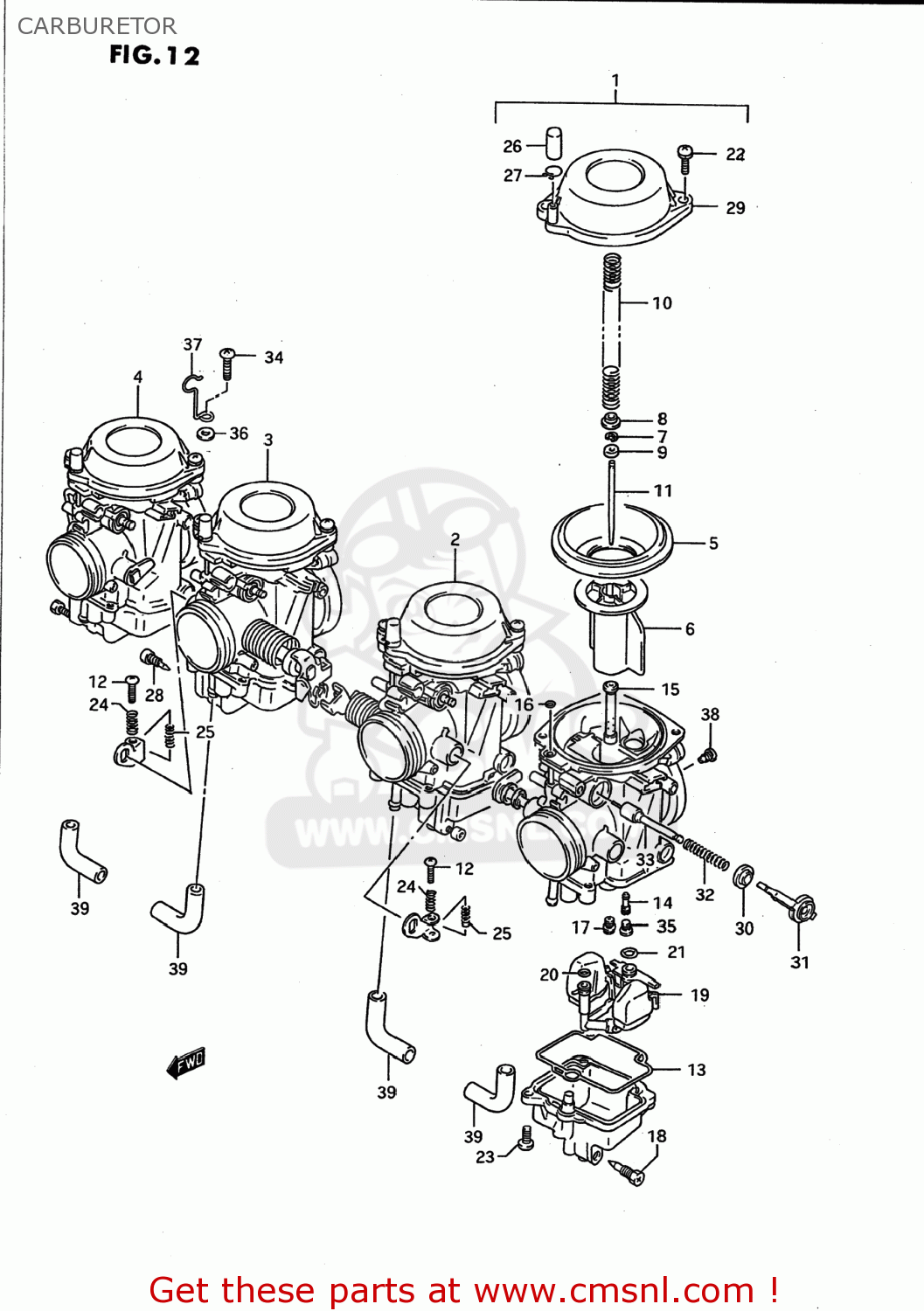

Carburetor diagram GSX750F KATANA 1989 (K) USA (E03)
CARBURETOR GSX750F KATANA 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1320120C30
ref: 1-1
13201-20C31
CARBURETOR ASSEMBLY
€ 0.00
1-2
1320120C40
ref: 1-2
13201-20C41
CARBURETOR ASSEMBLY
€ 289.50
2-1
1320220C30
ref: 2-1
13202-20C31
CARBURETOR ASSEMBLY
€ 0.00
2-2
1320220C40
ref: 2-2
13202-20C41
CARBURETOR ASSEMBLY
€ 289.50
3-1
1320320C30
ref: 3-1
13203-20C31
CARBURETOR ASSEMBLY
€ 0.00
3-2
1320320C40
ref: 3-2
13203-20C41
CARBURETOR ASSEMBLY
€ 289.50
4-1
1320420C30
ref: 4-1
13204-20C31
CARBURETOR ASSEMBLY
€ 0.00
4-2
1320420C40
ref: 4-2
13204-20C41
CARBURETOR ASSEMBLY
€ 289.50
5-1
1350717C00
ref: 5-1
13507-17C01
DIAPHRAGM
€ 24.50
5-2
1350717C01
ref: 5-2
DIAPHRAGM
€ 24.50
6
1350117C00
ref: 6
VALVE,PISTON
€ 69.50
7
1339431210
ref: 7
CLIP,NEEDLE
€ 3.50
8
1338242A00
ref: 8
RING
€ 3.50
9
1338744030
ref: 9
RING
€ 5.00
10
1341742A00
ref: 10
SPRING
€ 6.00
11-1
1338320C10
ref: 11-1
NEEDLE,JET
€ 12.50
11-2
1338320C20
ref: 11-2
NEEDLE,JET
€ 10.50
12
1326744B00
ref: 12
SCREW
€ 3.50
13
1325844B00
ref: 13
GASKET,FLOAT CHAMBER (NAS)
€ 8.50
14
0949232006
ref: 14
JET,PILOT(32.5)
€ 8.50
15
0949400633
ref: 15
09494-00875
JET,NEEDLE (Y-1)
€ 30.00
16
1350917C00
ref: 16
O RING
€ 4.50
17-1
0949121016
ref: 17-1
JET,MAIN(105)
€ 9.50
17-2
0949122016
ref: 17-2
JET,MAIN(110)
€ 7.00
18
1324724500
ref: 18
PLUG,DRAIN
€ 12.00
19
1325020C00
ref: 19
13250-20C10
FLOAT/NEEDLE VALVE ASSEMBLY
€ 115.50
20
1337446710
ref: 20
O RING
€ 4.50
21
1337444080
ref: 21
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
22-1
1360234390
ref: 22-1
02112-7516A
SCREW
€ 2.50
22-1
1360234390
ref: 22-1
02112-7516A
SCREW
€ 2.50
22-2
0211275163
ref: 22-2
02112-7516A
SCREW
€ 2.50
22-2
0211275163
ref: 22-2
02112-7516A
SCREW
€ 2.50
23-1
1360205128
ref: 23-1
02112-05127
SCREW
€ 2.50
23-2
0211205127
ref: 23-2
SCREW
€ 2.50
24
1327144B00
ref: 24
SPRING
€ 4.00
25
1326817C10
ref: 25
SPRING
€ 7.00
26
1350817C00
ref: 26
CAP
€ 4.50
27-1
1367133600
ref: 27-1
13671-05A40
CLIP
€ 4.00
27-2
1367105A40
ref: 27-2
CLIP
€ 4.00
28
1324713A00
ref: 28
13247-02340
SCREW,DRAIN
€ 5.50
29
1350217C00
ref: 29
COVER,DIAPHRAGM
€ 38.50
30
1341817C00
ref: 30
CAP,STARTER
€ 5.00
31
1341817C10
ref: 31
HOLDER,GUIDE
€ 14.00
32
1341709110
ref: 32
SPRING
€ 6.00
33
1341120C00
ref: 33
PLUNGER ASSEMBLY
€ 18.00
34
0211205164
ref: 34
SCREW
€ 2.00
35
1335734C00
ref: 35
PLUG
€ 4.50
36-1
1360600A10
ref: 36-1
08322-0105A
WASHER
€ 2.00
36-2
0832201053
ref: 36-2
08322-0105A
WASHER
€ 2.50
37
1367120C20
ref: 37
CLIP
€ 5.50
38-1
0949328007
ref: 38-1
09493-28006
JET,AIR
€ 15.50
38-2
0949324007
ref: 38-2
JET,AIR(1.2)
€ 13.50
39-1
1368448B00
ref: 39-1
13684-48B10
HOSE
€ 19.50
39-1
1368448B00
ref: 39-1
13684-48B10
HOSE
€ 19.50
39-2
1368448B10
ref: 39-2
HOSE
€ 19.50
39-2
1368448B10
ref: 39-2
HOSE
€ 19.50
