GSX750F KATANA 1989 (K) USA (E03)

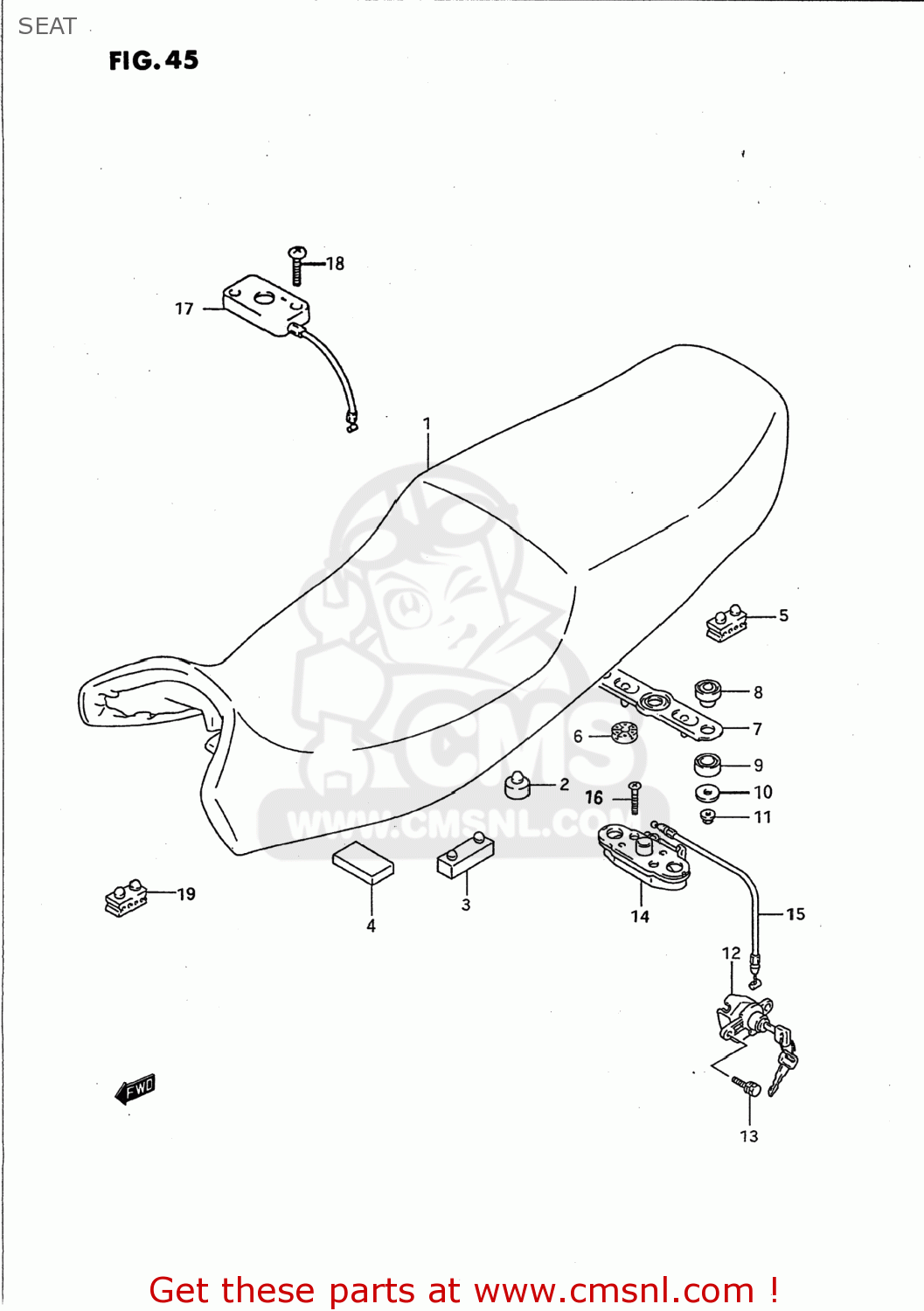

Seat diagram GSX750F KATANA 1989 (K) USA (E03)
SEAT GSX750F KATANA 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510020C0058R
ref: 1-1
45100-20C06-58R
SEAT ASSEMBLY
€ 453.50
1-2
4510020C0258R
ref: 1-2
45100-20C06-58R
SEAT ASSEMBLY
€ 453.50
1-3
4510020C0458R
ref: 1-3
45100-20C06-58R
SEAT ASSEMBLY
€ 453.50
1-4
4510020C2058R
ref: 1-4
45100-20C21-58R
SEAT ASSEMBLY
€ 391.50
1-5
4510020C216VS
ref: 1-5
45100-20C21-58R
SEAT SET
€ 391.50
1-6
4510020C2158R
ref: 1-6
SEAT ASSY
€ 391.50
1-6
4510020C2158R
ref: 1-6
SEAT ASSY
€ 391.50
1-7
4510020C216WT
ref: 1-7
SEAT SET
€ 289.00
2
0932110012
ref: 2
CUSHION
€ 3.00
3
4514943500
ref: 3
CUSHION,SEAT
€ 3.00
4
9498229400
ref: 4
CUSHION(30X60X10)
€ 1.50
5-1
4514931300
ref: 5-1
CUSHION,SEAT(40X20X15)
€ 2.00
5-2
4514931300
ref: 5-2
CUSHION,SEAT(40X20X15)
€ 2.00
6
4521313601
ref: 6
CUSHION,SEAT LOCK(10X22X6)
€ 1.50
7
4521048B20
ref: 7
STRIKER,SEAT LOCK
€ 14.50
8
0932010038
ref: 8
CUSHION
€ 4.00
9
0932014017
ref: 9
CUSHION
€ 3.00
10
0821206201
ref: 10
WASHER
€ 1.50
11
0831620063
ref: 11
08316-2006A
NUT
€ 2.00
12-1
4570019C00KEY
ref: 12-1
45700-19841
LOCK SET,SEAT
€ 59.50
12-2
4570019840
ref: 12-2
45700-19841
LOCK SET,SEAT
€ 59.50
13-1
0113706165
ref: 13-1
01570-0616A
BOLT
€ 2.50
13-2
0157006167
ref: 13-2
BOLT
€ 2.50
13-3
0157006163
ref: 13-3
01570-0616A
BOLT
€ 2.50
14-1
4522020A00
ref: 14-1
45220-47H00
BRACKET,SEAT SUPPORT,RIGHT
€ 79.50
14-2
4522020A01
ref: 14-2
45220-47H00
BRACKET,SEAT SUPPORT,RIGHT
€ 79.50
15
4528020C00
ref: 15
CABLE,SEAT LOCK
€ 13.00
16-1
0212206305
ref: 16-1
02122-0630B
SCREW
€ 2.00
16-2
0212206308
ref: 16-2
02122-0630B
SCREW
€ 2.00
16-3
0212206303
ref: 16-3
02122-0630B
SCREW
€ 2.00
17
4522006C00
ref: 17
BRACKET,SEAT SUPPORT FR
€ 29.00
18-1
0212206208
ref: 18-1
02122-0620A
SCREW
€ 2.00
18-2
0212206203
ref: 18-2
02122-0620A
SCREW
€ 2.00
19
4514931300
ref: 19
CUSHION,SEAT(40X20X15)
€ 2.00
