STAND
GSX750F KATANA 1989 (K) USA (E03)

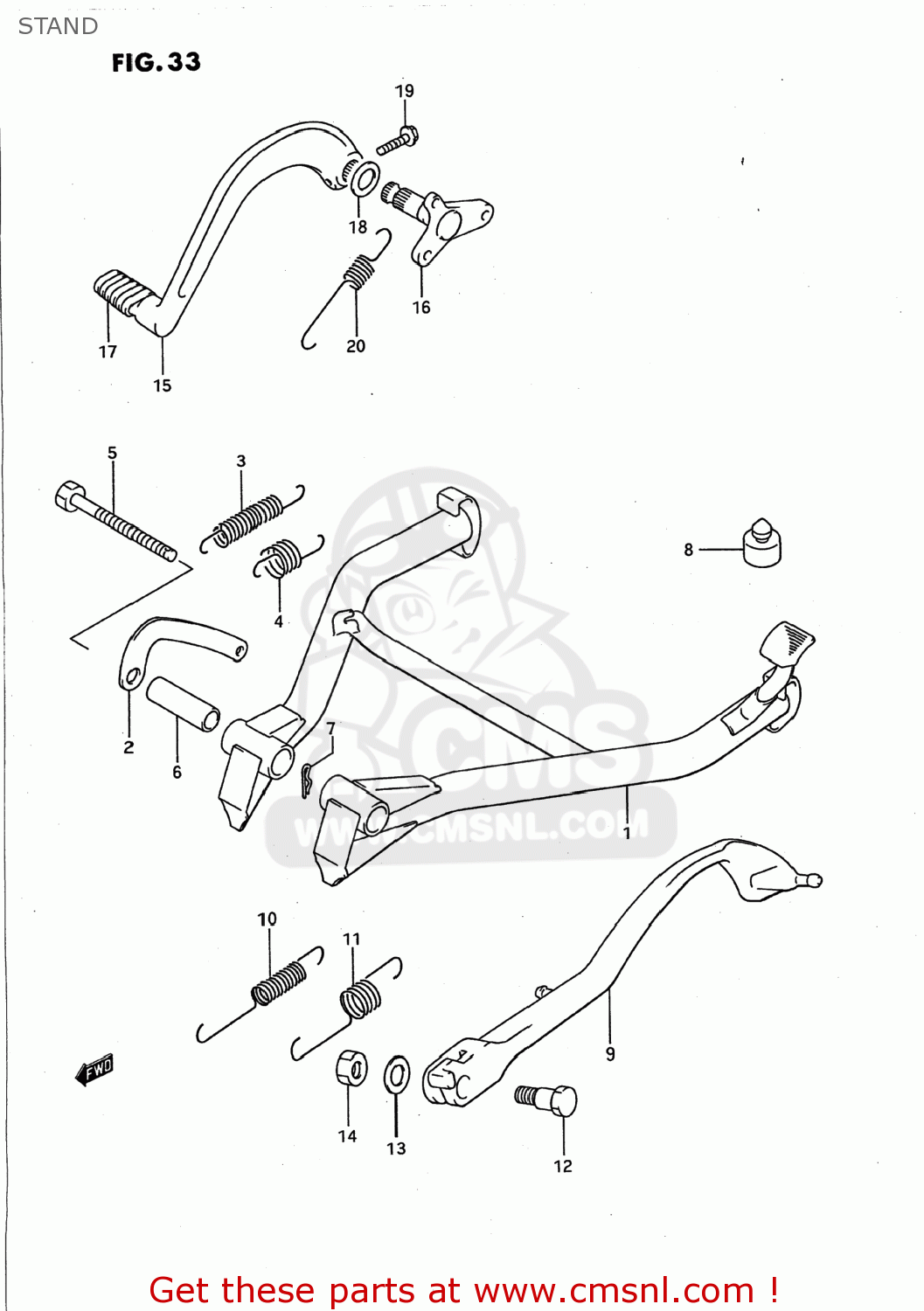

Stand diagram GSX750F KATANA 1989 (K) USA (E03)
STAND GSX750F KATANA 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4210019841
ref: 1-1
42100-19843
STAND,CENTER
€ 190.50
1-2
4210019842
ref: 1-2
42100-19843
STAND,CENTER
€ 190.50
1-3
4210019843
ref: 1-3
STAND SET,CENTER
€ 190.50
2
4225119C00
ref: 2
HOOK,CTR STAND SPRING
€ 5.50
3
0944315039
ref: 3
09443-15039-XC0
SPRING
€ 7.50
4
0944322009
ref: 4
SPRING
€ 18.00
5-1
0911710029
ref: 5-1
BOLT(10X63)
€ 6.50
5-2
0158010603
ref: 5-2
01580-1060B
BOLT
€ 3.50
6
0918010040
ref: 6
SPACER(10X16X38.8)
€ 3.00
7
0938510005
ref: 7
CLIP
€ 1.50
8
0932110017
ref: 8
CUSHION
€ 5.50
9
4231019C01
ref: 9
STAND,PROP
€ 68.00
10
0944312036
ref: 10
SPRING
€ 7.50
11
0944319010
ref: 11
SPRING
€ 6.00
12
0911110036
ref: 12
BOLT(10X38)
€ 5.50
13
0822112224
ref: 13
SHIM
€ 2.00
14-1
0831022105
ref: 14-1
09140-10043
NUT
€ 2.00
14-2
0914010043
ref: 14-2
NUT
€ 2.00
14-3
0915910097
ref: 14-3
NUT
€ 5.00
15-1
4311019C00
ref: 15-1
43110-19C02
PEDAL,BRAKE
€ 115.00
15-2
4311019C01
ref: 15-2
43110-19C02
PEDAL,BRAKE
€ 115.00
16
4312019C00
ref: 16
BOSS,BRAKE ROD
€ 30.00
17
4315104701
ref: 17
RUBBER,BRAKE PEDAL
€ 6.00
18
4321204A00
ref: 18
WASHER,BRAKE PEDAL
€ 2.00
19-1
0154706257
ref: 19-1
BOLT
€ 2.50
19-2
0154706253
ref: 19-2
01547-0625B
SCREW
€ 2.50
20
0944313028
ref: 20
SPRING
€ 20.50
